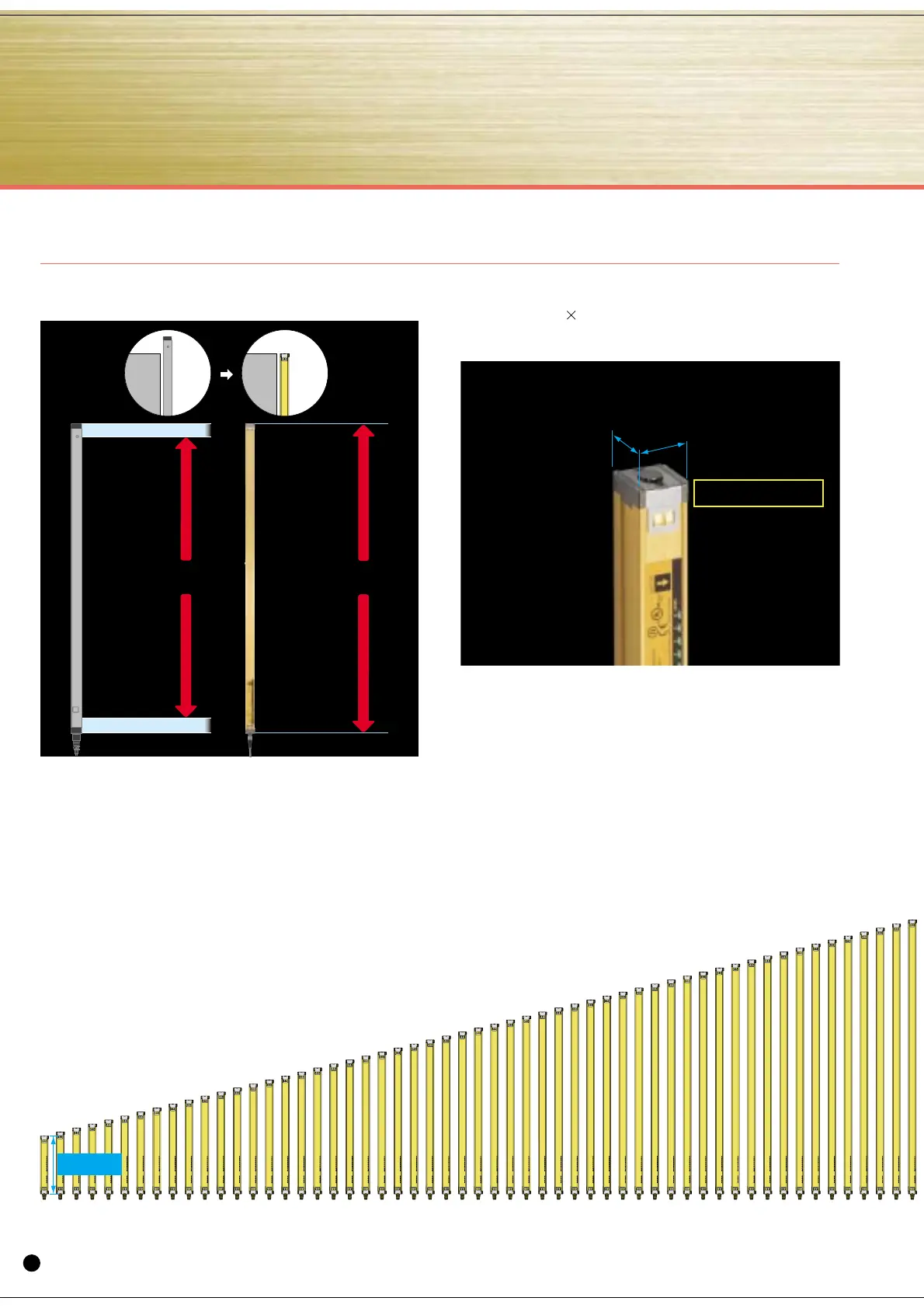

OMRON can provide an F3SN-A/F3SH-A Sensor
sized to perfectly fit the Hazardous area.
4
Perfectly Meeting User Needs with Innovative Concepts
Same Protective height and Sensor Length
Limits extra space to a minimum.
Protective
height
Protective
height
Earlier model
Sensors
F3S
o -A
Extra space
Extra space
Compact Sensor
OMRON has successfully developed a compact Sensor
surface area (30 30 mm) in a Type 4 Safety Light Curtain
with built-in amp. The new F3SN-A/F3SH-A is 25% smaller
than earlier OMRON models.
Select the Perfect Length
Select a detection capability of either 14-mm diameter
(Beam gap: 9 mm) or 25-mm diameter (Beam gap:
15mm). For the 14-mm diameter type, OMRON has
created 53 models, at 18-mm intervals (all odd-numbered
beams from 21 beams = 189 mm to 125 beams = 1,125
mm). For the 25-mm diameter type, OMRON has created
108 models, at 15-mm intervals (all beams from 13 beams
= 217 mm to 120 beams = 1,822 mm).
25-mm type
108 models
Machine Machine
30mm
30mm
25% slimmer
217mm
