Omron FH-5550 - C-Mount Lens for 1-Inch Image Sensor (VS-H1 Series)

Model
3Z4S-LE
SV
-10028H
Maximum sensor
size
1 inch
Mount C mount
3-4-3

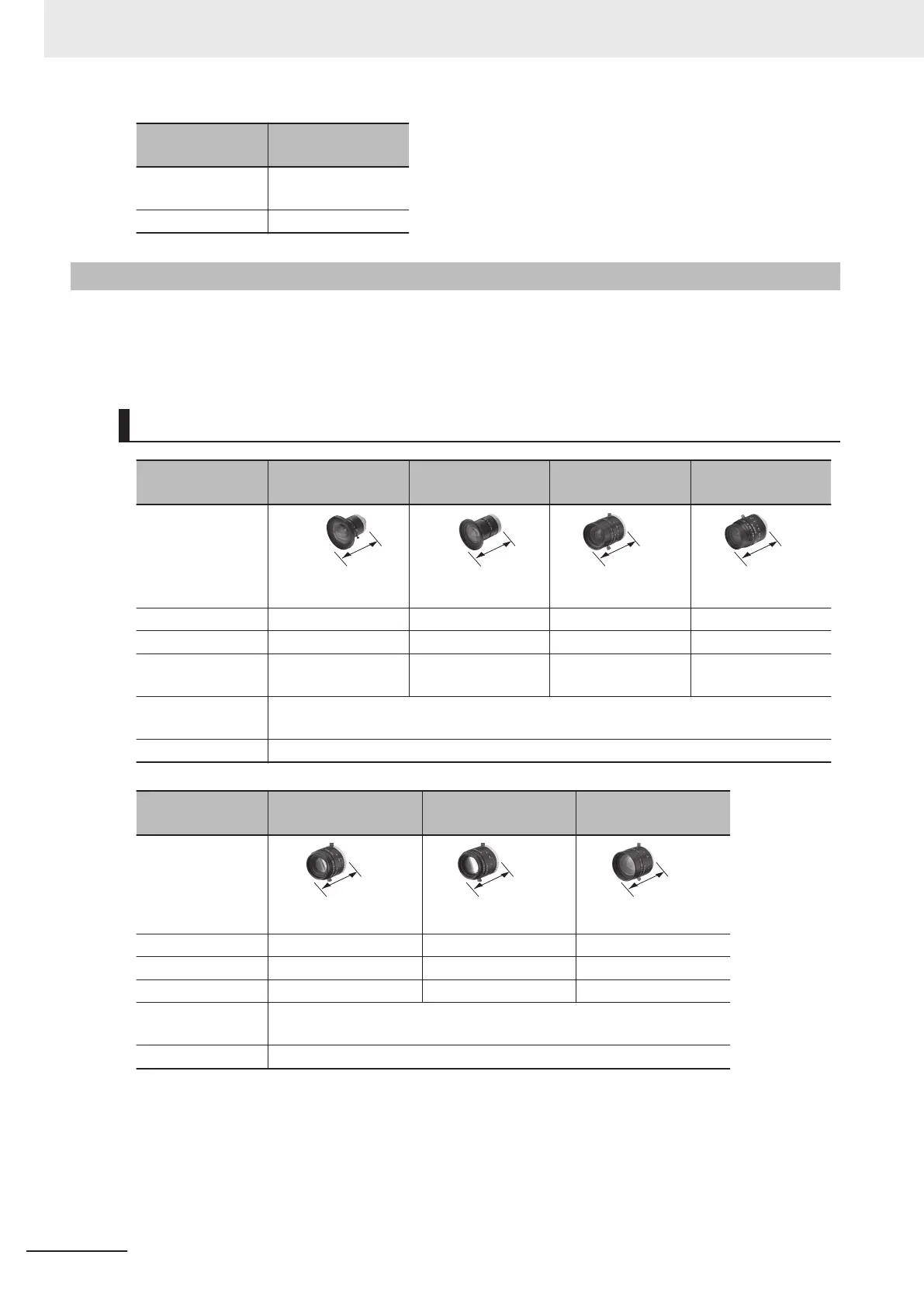

C-mount Lens for 1-inch Image Sensor (VS-H1 Series)
FH-S£02 and FH-S£04 are recommended.
When the focal distance is 75 mm or 100 mm, 3Z4S-LE SV
-7525H and 3Z4S-LE SV-10028H are also
available.
Specification
Model
3Z4S-LE
VS-0618H1
3Z4S-LE
VS-0814H1
3Z4S-LE
VS-1214H1
3Z4S-LE
VS-1614H1N
Appearance/
Dimensions
(Unit: mm)
57.2
64.5 dia.
59
57 dia.
48.0[WD:∞] to
48.5[WD:300]
38 dia.
45.0[WD:∞] to
45.9[WD:300]
38 dia.
Focal length (mm) 6 8 12 16
Aperture (F No.) 1.8 to 16 1.4 to 16 1.4 to 16 1.4 to 16
Filter size Can not be used a
filter.
M55.0 P0.75 M35.5 P0.5 M30.5 P0.5
Maximum sensor
size
1 inch
Mount C mount
Model
3Z4S-LE
VS-2514H1
3Z4S-LE
VS-3514H1
3Z4S-LE
VS-5018H1
Appearance/
Dimensions
(Unit: mm)
33.5[WD:∞] to
35.6[WD:300]
38 dia.
35.0[WD:∞] to
39.1[WD:300]
38 dia.
44.5[WD:∞] to
49.5[WD:500]
44 dia.
Focal length (mm) 25 35 50
Aperture (F No.) 1.4 to 16 1.4 to 16 1.8 to 16
Filter size M30.5 P0.5 M30.5 P0.5 M40.5 P0.5
Maximum sensor
size
1 inch
Mount C mount
3 Configuration
3-52
FH Series Vision System Hardware Setup Manual (Z366-E1)
