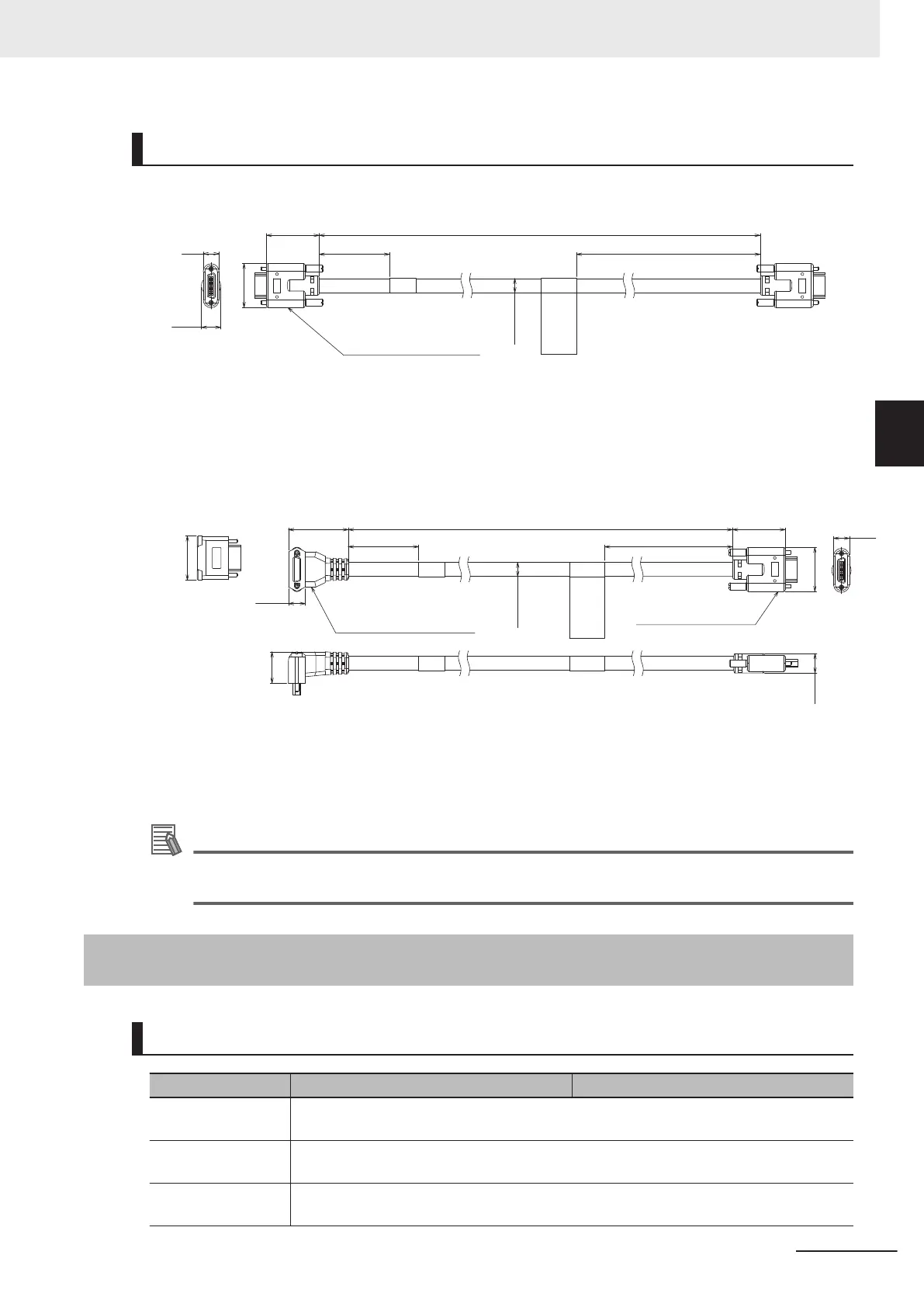

Dimensions
l
Bend resistant Camera Cable: FZ-VSB3
(*2)
(9)
(11)
26-pin
rectangular connector
(25)
8.0 dia.
(40)
L (*1)(30)
(100)
*1. Cable is available in 2 m/3 m/5 m/10 m.
*2. Each camera cables has polarity
. Please ensure that the name plate side of the cable is con-
nected to the controller.
(Unit: mm)
l
Bend resistant Right-angle Camera Cable: FZ-VSLB3
(*2)
(9)
26-pin
rectangular connector
26-pin
rectangular connector
8.0 dia.
(100)
L (*1) (30)(34)
(10)
(40)
(25)
(25)
(18)
(11)
*1. Cable is available in 2 m/3 m/5 m/10 m.
*2. Each camera cables has polarity. Please ensure that the name plate side of the cable is con-
nected to the controller.
(Unit: mm)
Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.
3-3-3
Long-distance Camera Cable and Long-distance Right-angle
Camera Cable
Specification
Model FZ-VS4 (15m) FZ-VSL4 (15m)
Vibration (resisnt-
ance)
10 to 150 Hz, Single amplitude 0.15 mm, 3 directions, 8 strokes, 4 times
Ambient tempera-
ture range
Operation and storage: 0 to +65°C (with no icing or condensation)
Ambient humidity
range
Operation and storage: 40 to 70% (with no condensation)
