Omron FH-5550 - Vibration and Shock Resistant M42-Mount Lens for 1.8-Inch Image Sensor (VS-MCL; M42-10 Series); Vibration and Shock Resistant M42-Mount Lens for 1.8-Inch Image Sensor (VS-MCL;M42-10 Series)

Model
3Z4S-LE VS-MC50H1-£££££
*1
Mount C mount
*1.
Insert the aperture into £££££ in the model number as follows.
F = 1.4: blank
F = 5.6: FN056
F = 8: FN080
*2. F-number can be selected from maximum aperture, 5.6, and 8.0.
*3. When circle of least confusion is 40 μm.
3-4-10

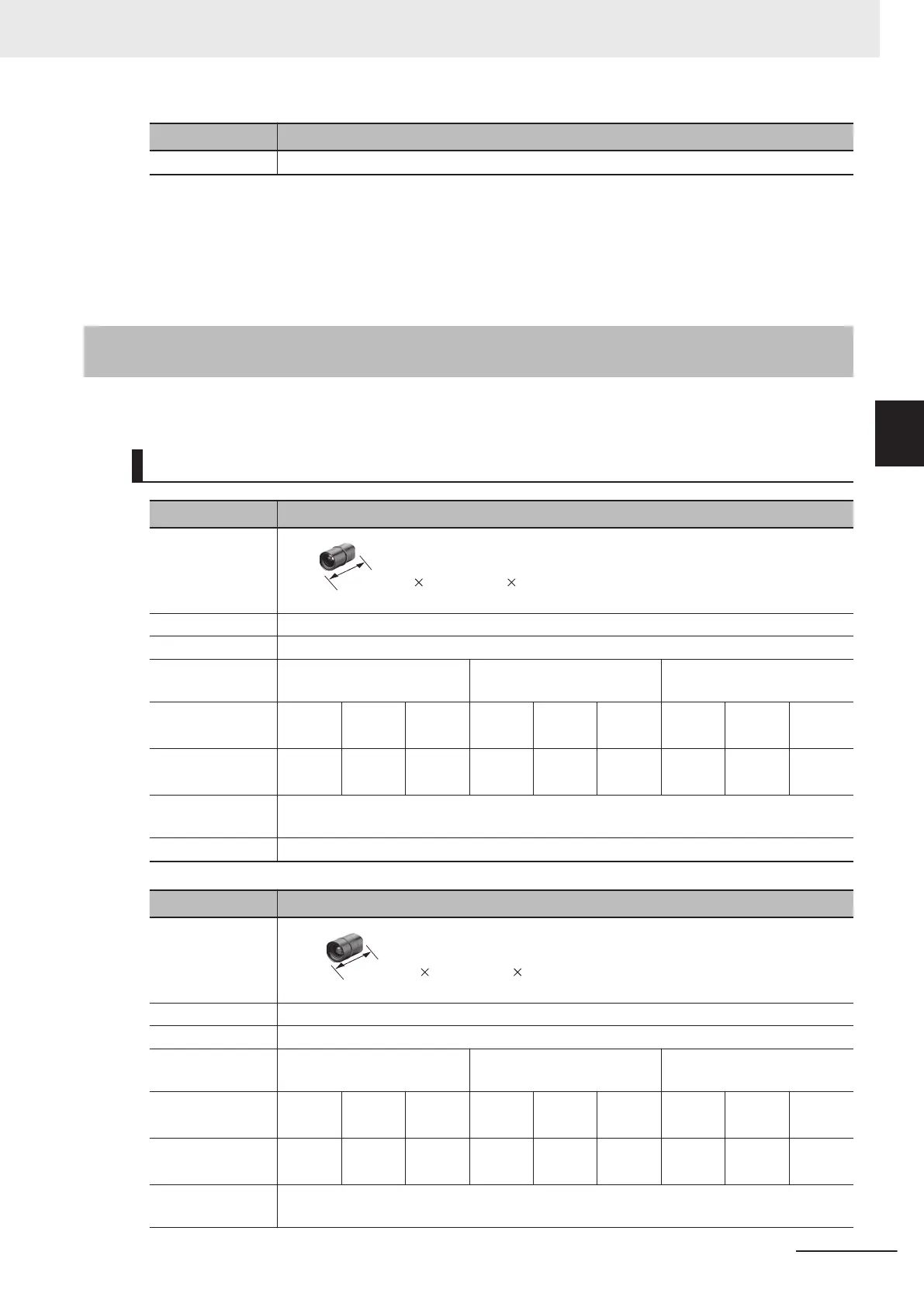

Vibration and Shock Resistant M42-mount Lens for 1.8-inch Im-
age Sensor (VS-MCL/M42-10 Series)
FH-S£12 is recommended.
Specification
Model
3Z4S-LE VS-MCL18-£££££/M42-10
*1
Appearance/
Dimensions
(Unit: mm)
91.5 [0.025 ] to 96.1 [0.25 ]
52dia
Focal length (mm) 18
Filter size M46.0 P0.75
Optical magnifica-
tion
0.025x 0.10x 0.25x
Aperture (fixed F
No.)
*2
2.8 5.6 8 2.8 5.6 8 2.8 5.6 8
Depth of field
(mm)
*3
367.0 735.0 1050.0 24.6 49.3 70.4 4.5 9.0 12.8
Maximum sensor
size
1.8 inch
Mount M42 mount
Model
3Z4S-LE VS-MCL25-£££££/M42-10
*1
Appearance/
Dimensions
(Unit: mm)
72.0 [0.025 ] to 82.3 [0.40 ]
52dia.
Focal length (mm) 25
Filter size M46.0 P0.75
Optical magnifica-
tion
0.025x 0.10x 0.40x
Aperture (fixed F
No.)
*2
2.6 5.6 8 2.6 5.6 8 2.6 5.6 8
Depth of field
(mm)
*3
367.0 735.0 1050.0 24.6 49.3 70.4 1.8 3.9 5.6
Maximum sensor
size
1.8 inch
3 Configuration
3-63
FH Series Vision System Hardware Setup Manual (Z366-E1)
3-4 Lens
3
3-4-10 Vibration and Shock Resistant M42-mount Lens for 1.8-inch Image Sensor (VS-MCL/M42-10 Series)
