Model FZ-SH FZ-SHC
Field of vision, in-
stallation distance
Selecting a lens according to the field of vision and installation distance
Ambient tempera-
ture range
Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity
range
Operating and Storage: 35 to 85% (with no condensation)
Weight Approx. 105g
Accessories
• Instruction Sheet
• General Compliance Information and Instructions for EU
*1. This image acquisition time does not include the image conversion processing time of the sensor controller.

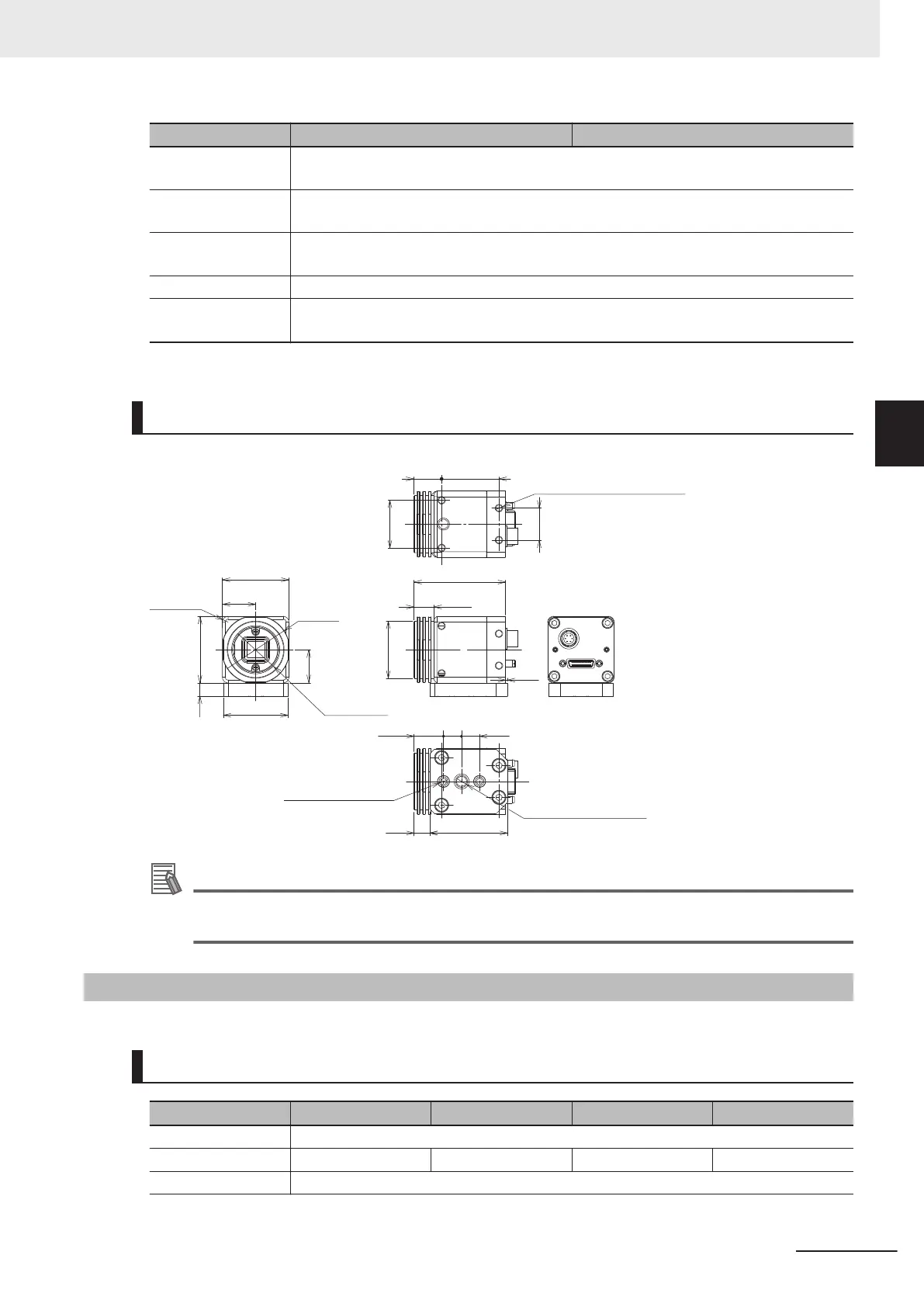

Dimensions
14.5
(1)
17.5
10.5
15.5
8.3
9.5
9.5
Four M4 mounting holes
with a depth of 4 mm
(4 commonness)
Four-R3
7
1“-32UNF
(C mount)
36 dia.
Two, M4 mounting
holes with a depth
of 5.5 mm
1/4” 20UNC with a
depth of 5.5 mm
40.9
30.2
25
16.8
48.2
30 dia.
35
34
35
17.5
Additional Information
We have the 2D CAD data or 3D CAD data.
Y
ou can download CAD data from www.fa.omron.co.jp.
3-2-5
Small Digital CCD Cameras: FZ-S Camera Series
Specification
Model FZ-SF FZ-SFC FZ-SP FZ-SPC
Image elements Interline transfer reading all pixels, CCD image elements (1/3-inch equivalent)
Color/Monochrome Monochrome Color Monochrome Color
Effective pixels 640 (H) x 480 (V)
3 Configuration
3-33
FH Series Vision System Hardware Setup Manual (Z366-E1)
3-2 Camera
3
3-2-5 Small Digital CCD Cameras: FZ-S Camera Series
