Omron FQ2 Series Manual

FQ2
2
FQ2-S1 FQ2-S2
FQ2-S3 FQ2-S4
FQ2-S1 FQ2-S2
FQ2-S3 FQ2-S4
FQ2-S1 FQ2-S2
FQ2-S3 FQ2-S4

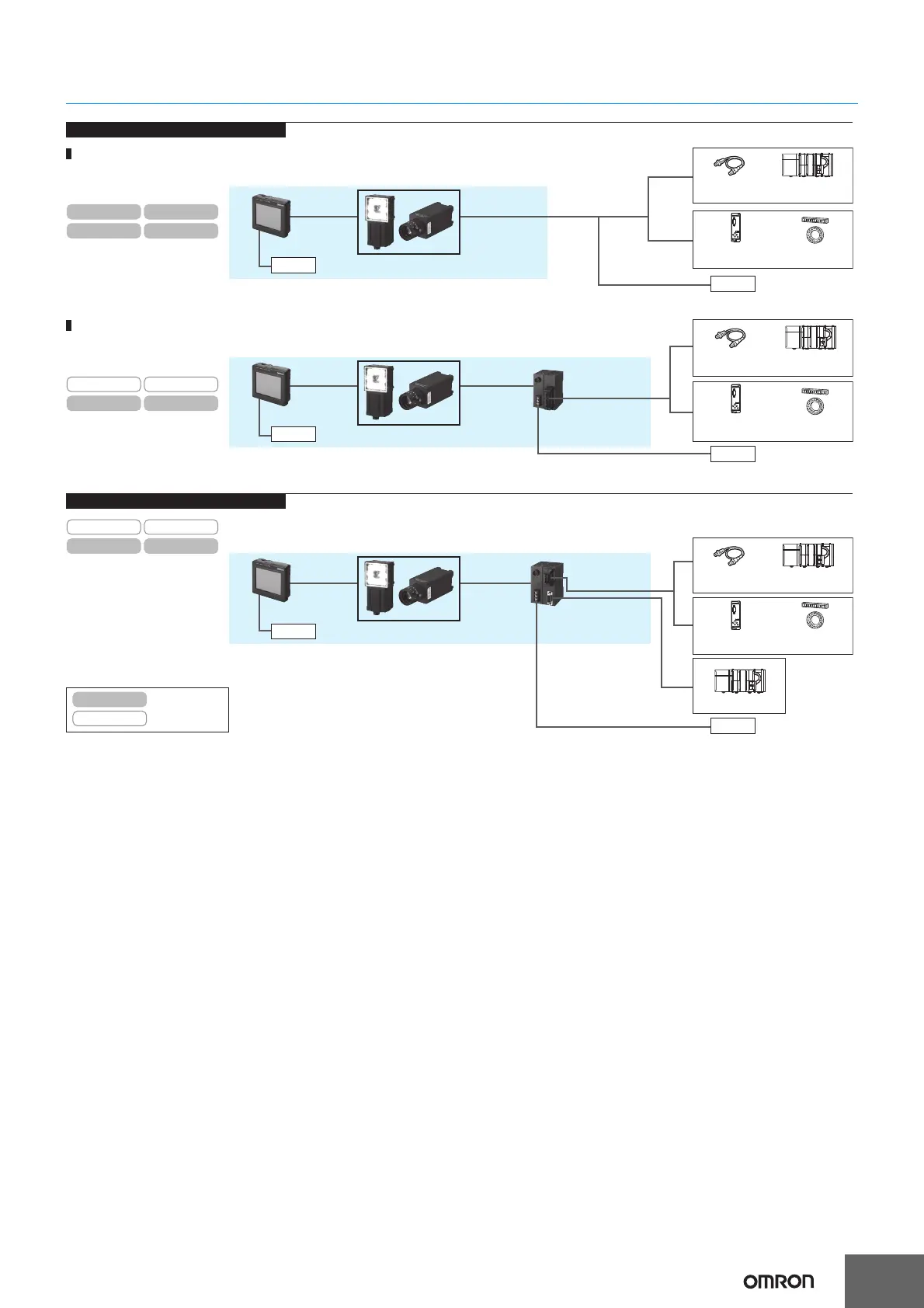

Parallel Interface Connection
FQ
Ethernet Cable
FQ-WN
Sensor Data
Unit Cable
FQ-WU
Parallel Cable
for FQ-SDU1
FQ-VP1
x
2 cables
Touch Finder
FQ2-D
or TouchFinder for PC
Sensor
FQ2-S3/S4
Sensor control PLC
I/O control PLC
Trigger sensor
FL-STC
Lighting Controller
Parallel Interface
Sensor Data Unit
FQ-SDU1
FL-series
External Lighting
FL-STC
Lighting Controller
FL-series
External Lighting
FQ
Ethernet Cable
FQ-WN
Parallel Cable for
FQ-SDU2
FQ-VP2
x
2 cables
RS-232C Cable
XW2Z- @00S-V
Touch Finder
FQ2-D
or TouchFinder for PC
Sensor
FQ2-S3/S4
Sensor control PLC
FL-series
External Lighting
Sensor control PLC
I/O control PLC
Trigger sensor
FL-STC
Lighting Controller
RS-232C Interface
Sensor Data Unit
FQ-SDU2
RS-232C Serial Connection
I/O Cable
FQ-WD
FQ
Ethernet Cable
FQ-WN
Touch Finder
FQ2-D
or TouchFinder for PC
DC24V
DC24V
DC24V
DC24V
Sensor control PLC
I/O control PLC
Trigger sensor
Sensor
FQ2-S1/S2/S3/S4
Sensor Data
Unit Cable
FQ-WU
Connection with Standard
Parallel Interface of the
Sensor
Connection through a
Parallel Interface Sensor
Data Unit
Compatible
Model compatible with
communications interface
Not compatible
(
FQ2-S3 only
)
DC24V
DC24V
