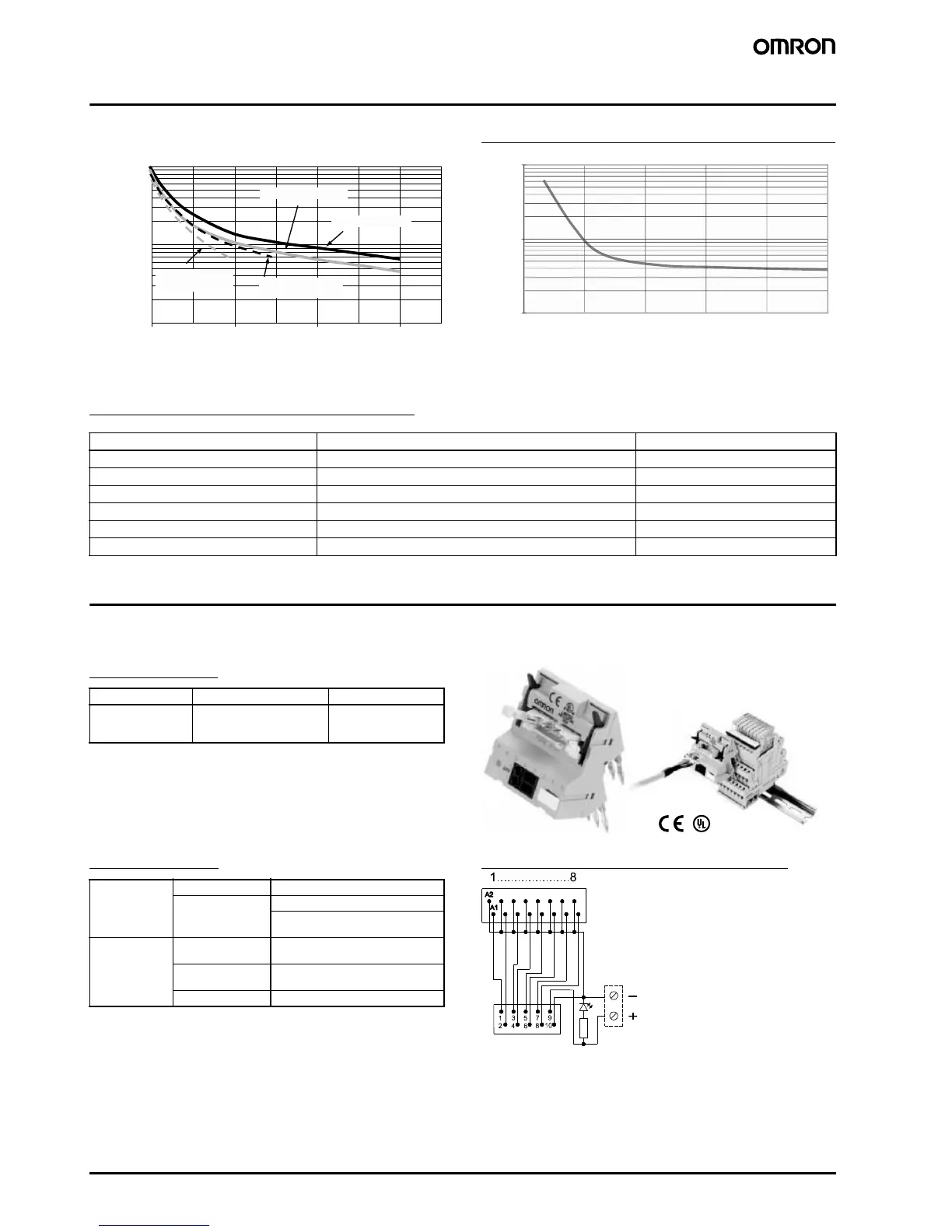

Omron G2RV - Engineering Data

4 Slim Relay G2RV
Engineering Data
■ Endurance
Switching capacity of DC resistive load
Typical Operating and Release Time
Accessories
■ PLC Interface (for G2RV-SL700 series only)
List of Models
Specifications Electrical schematic P2RVC-8-O-F
10
100
1000
02 4
Switching current (A)
Endurance (x 10
3
operations)
250VAC resistive load
30VDC resistive load
30VDC inductive load
(L/R=7ms)
250VAC inductive load
(cos ϕ = 0.4)
6
0,1
1,0
10,0
20 60 100 140 180 220
Switching voltage (VDC)
DC Breaking Current (A)
Model number Operating time (typical) Release time (typical)
G2RV-SL7@@/5@@ DC12 5 ~ 7 ms 5 ~ 8 ms
G2RV-SL7@@/5@@ DC24 5 ~ 7 ms 6 ~ 9 ms
G2RV-SL7@@/5@@ AC/DC24 5 ~ 7 ms 17 ~ 22 ms
G2RV-SL7@@/5@@ AC/DC48 5 ~ 7 ms 22 ~ 30 ms
G2RV-SL7@@/5@@ AC110 12 ~ 15 ms 22 ~ 30 ms
G2RV-SL7@@/5@@ AC230 12 ~ 15 ms 22 ~ 30 ms
Model number Description Connection
P2RVC-8-O-F PLC Output Interface for 8x
G2RV-SL700-series
PNP - type
Ribbon cable connector
10 Pole, IEC603/1
Input Rated voltage 30 VAC/VDC max.
Current capacity 0.5 A per channel
2.0 A total current, power supply
terminal
Characteristics Ambient
temperature
Operating: 0 to 55°C
Storage: −20 to 85°C
Overvoltage
category
III
Pollution degree 2
