G32A-A40-VD/G32A-A60-VD/G32A-A430-VD
The
G32A Power Device Cartridge is mounted and secured with screws to the G3P
A Unit.

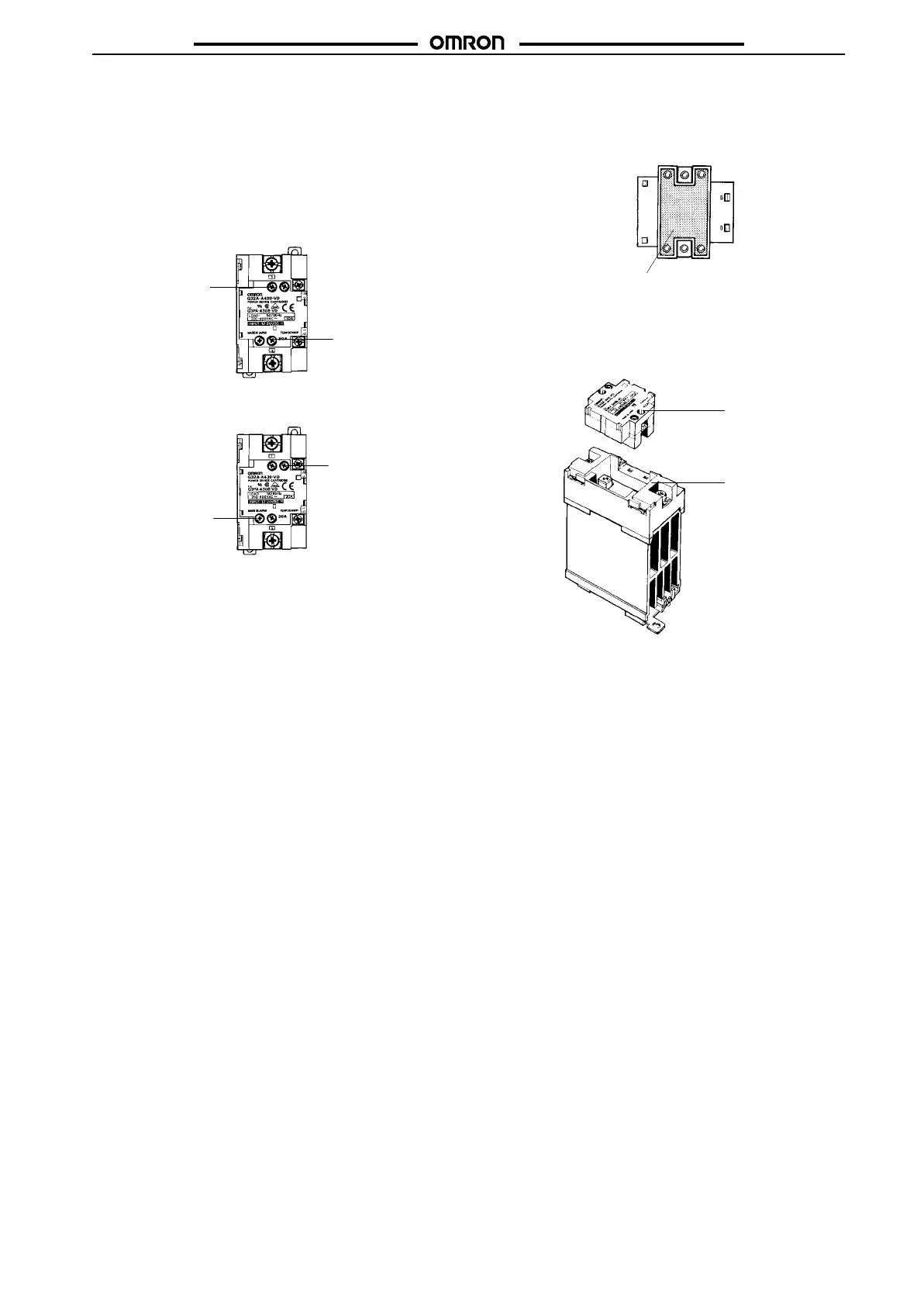

Extraction
Follow the procedures below to dismount the G32A-A Power De-
vice
Cartridge from the G3P
A.
1. Switch off the power.
2.
Remove the terminal cover
.
3. Loosen
the two centered screws on the sides to dismount the
cartridge.
The screws are connected to terminals 1 and 2.
Loosen
Loosen
4.
Loosen the screws on both the corners.
Loosen
Loosen
5. Hold the indented part of both the corners to dismount the
cartridge.
Mounting
1. Apply
silicone grease to the entire
surface of the heat radiator
.
Apply silicone grease here.
2. Make sure that there is no dust or pieces of wire on the
radiator
of the G32A-A or the G3P
A.
3. Insert
the cartridge into the opening of the G3P
A so that side A
and
side B are even.
Side B
Side A
4. Tighten the screws on both the corners with a tightening
torque
of 0.59 to 0.78 N
S
m.
5. Tighten
the screws on both the sides with a tightening torque
of
0.59 to 0.78 N
S
m.
6.
Attach the terminal cover
.
7. Switch
on the power and check the G3P
A to be sure it works
properly.
