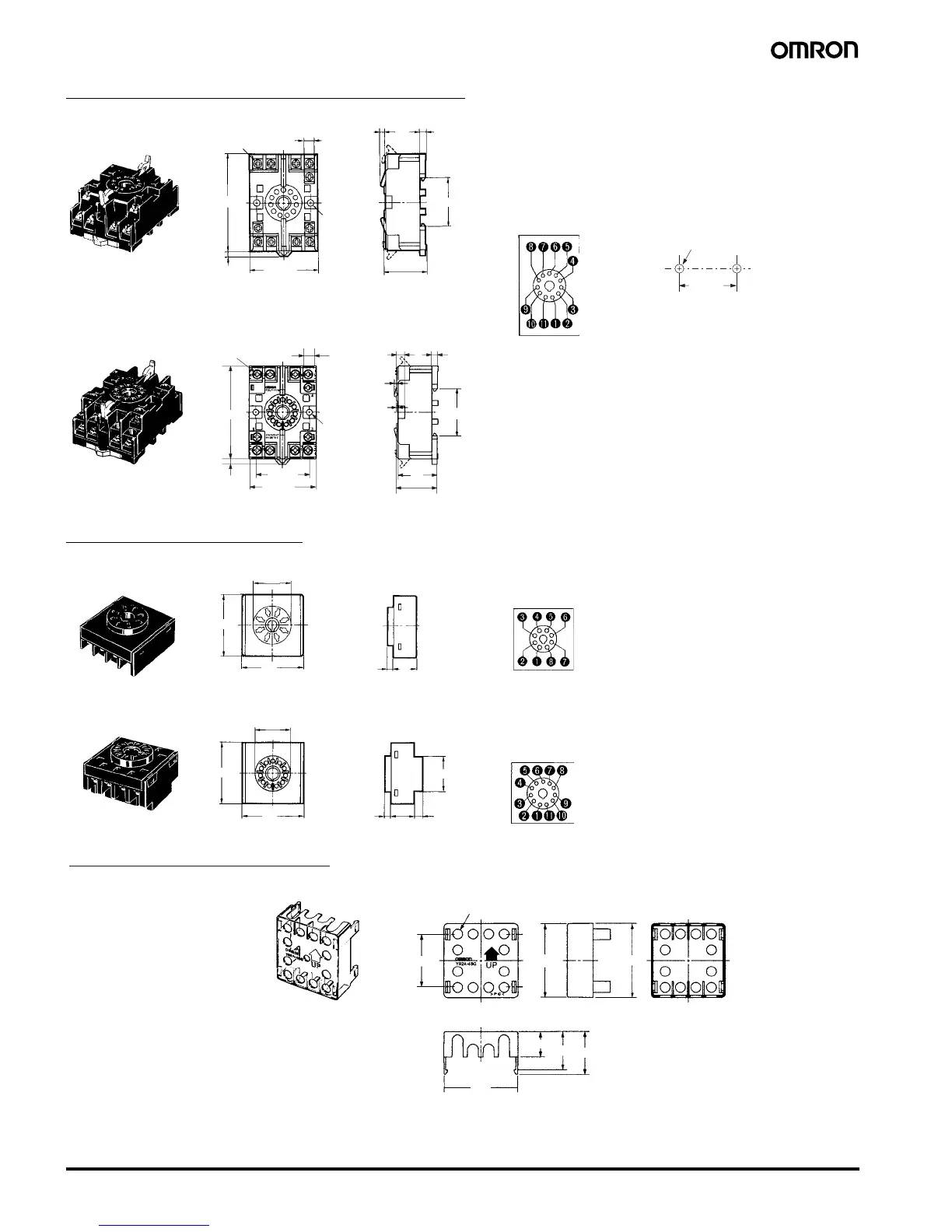

Omron H2C - H2 C Accessories Details; Track Mounting Sockets (11-pin); Back Connecting Sockets; Finger Safe Terminal Cover

8 Motor Timer H2C
Track Mounting/Front Connecting Socket
Back Connecting Socket
40±0.2
7.8
34.5
35.4
4
7.8
4
40±0.2
35.4
30
54.5
3
1.2
Surface Mounting Holes
Two, 4.5 dia. or two, M4
70 max.
50 max.
31.2 max.
P2CF-11-E (Finger Safe Terminal Type)
Conforming to VDE0106/P100
70 max.
50 max.
31.2 max.
P2CF-11
Eleven,
M3.5 x 7.5 sems
Terminal Arrangement/
Internal Connections
(Top View)
Two, 4.5 dia.
holes
Two, 4.5 dia.
holes
Eleven,
M3.5 x 7.5 sems
45
45
4.9
17
45
45
25.6
4.5
16.3
6.2
34
47.7 x 47.7
48 x 48
47.4
16.5
24.6
27.6
27 dia.
P3GA-11
27 dia.
Finger Safe Terminal Cover
Conforming to VDE0106/P100
Y92A-48G
Twelve, 6.4 dia. holes
P3G-08
Terminal Arrangement/
Internal Connections
(Bottom View)
Terminal Arrangement/
Internal Connections
(Bottom View)
(Attachment for P3G-08/
P3GA-11 Socket)
