Motor Timer H2C 7

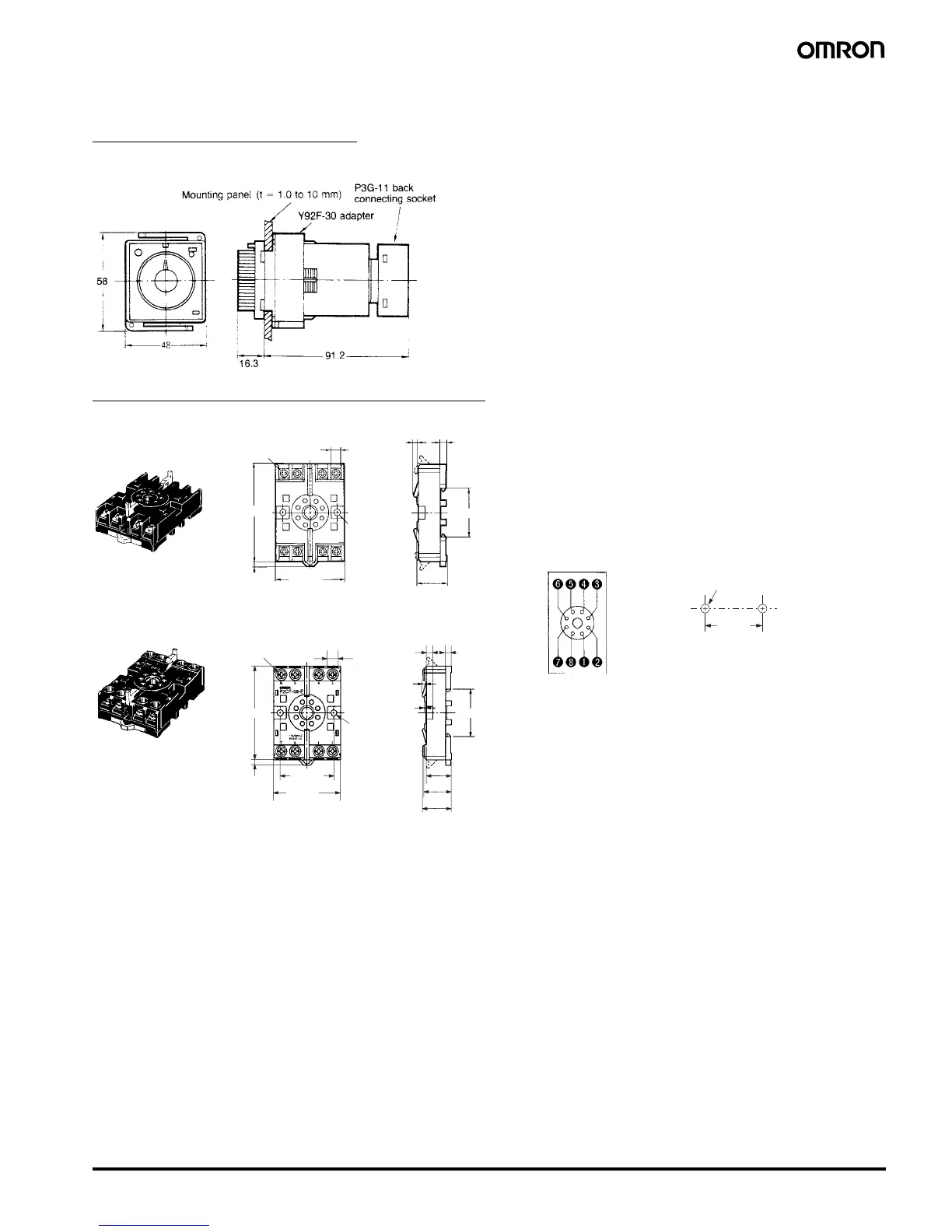

■ Accessories (Order Separately)
Adapter for Flush Mounting
Y92F-30
Track Mounting/Front Connecting Socket
7.8
34.5
35.4
4
40±0.2
40±0.2
7.8
4
35.4
20.3
19
3
1.3
54.5
70 max.
50 max.
20.3 max.
P2CF-08-E (Finger Safe Terminal Type)
Conforming to VDE0106/P100
Surface Mounting Holes
Two, 4.5 dia. or two, M4
50 max.
70 max.
21.5 max.
P2CF-08
Eight,
M3.5 x 7.5 sems
Two, 4.5 dia.
holes
Terminal Arrangement/
Internal Connections
(Top View)
Two, 4.5 dia.
holes
Eight,
M3.5 x 7.5 sems
