Omron H3CR-A User Manual

H5BR
H5BR
166
Examples
Run Mode

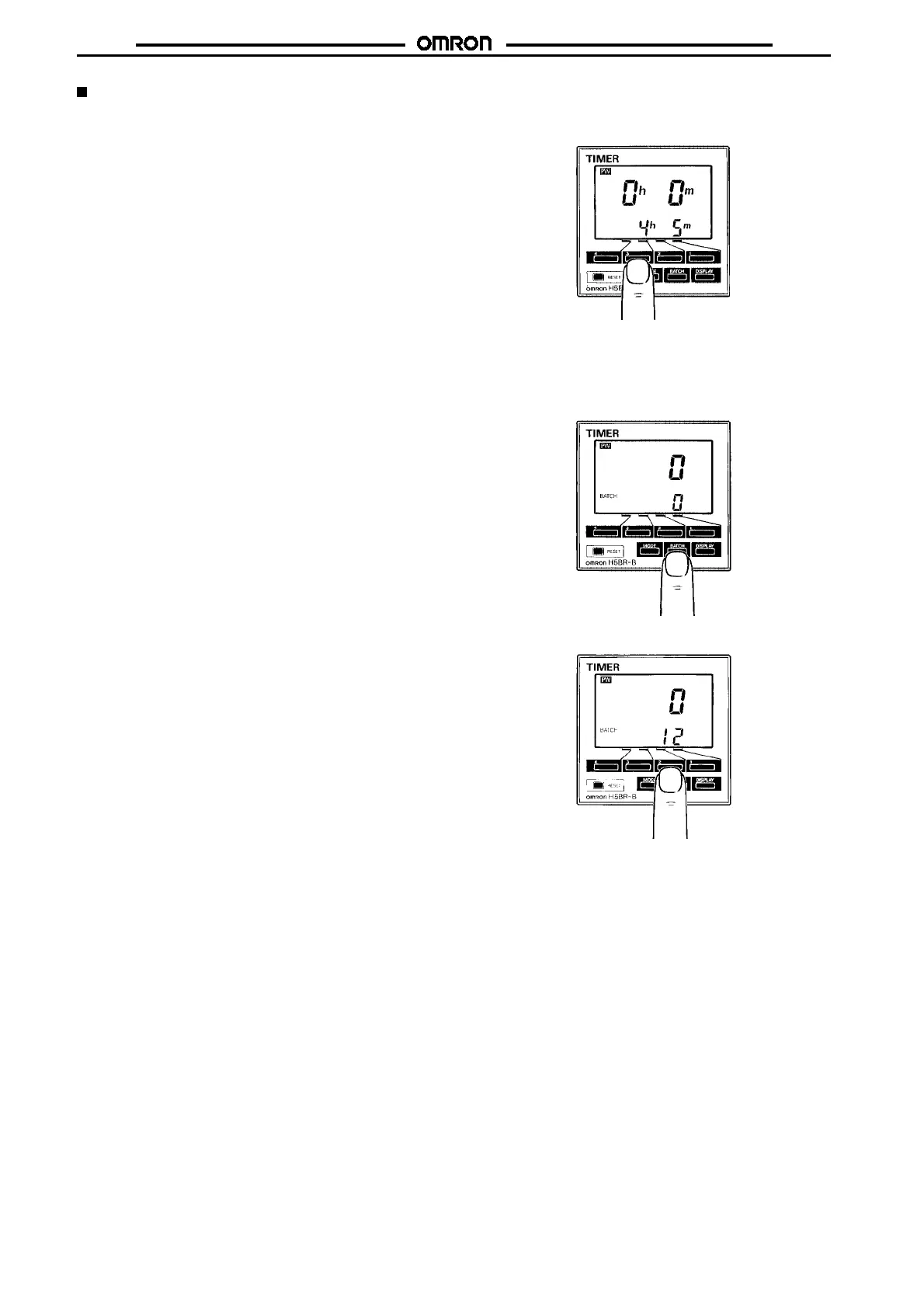

Changing the Set Value
Tochange theset value from 3 hr 5min to 4 hr 5 min, press the 3 key
so that the number 4 appears in the hour’s place.
#
Pressing keys 1 through 4 increments the corresponding
column by 1.
#
The columns can be changed in any order, but the output will
be turned ON if the set value is less than the present value.
#
Nonsignificant zeros are normally not shown on the set value
display.
Note: Read
Changing Set Values
in the
Precautions
section, pg.
15, before changing the Timer set value during operation.
Changing the Batch Count Set Value
1. Press theBATCH key to switch from the present value display to
the batch count display.
2. Change the set value when the Timer is set to the batch count
display.
#
Nonsignificant zeros are normally suppressed on the batch
count set value display.
#
Press the DISPLAY key to switch back from the batch count
display to the present value display.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
