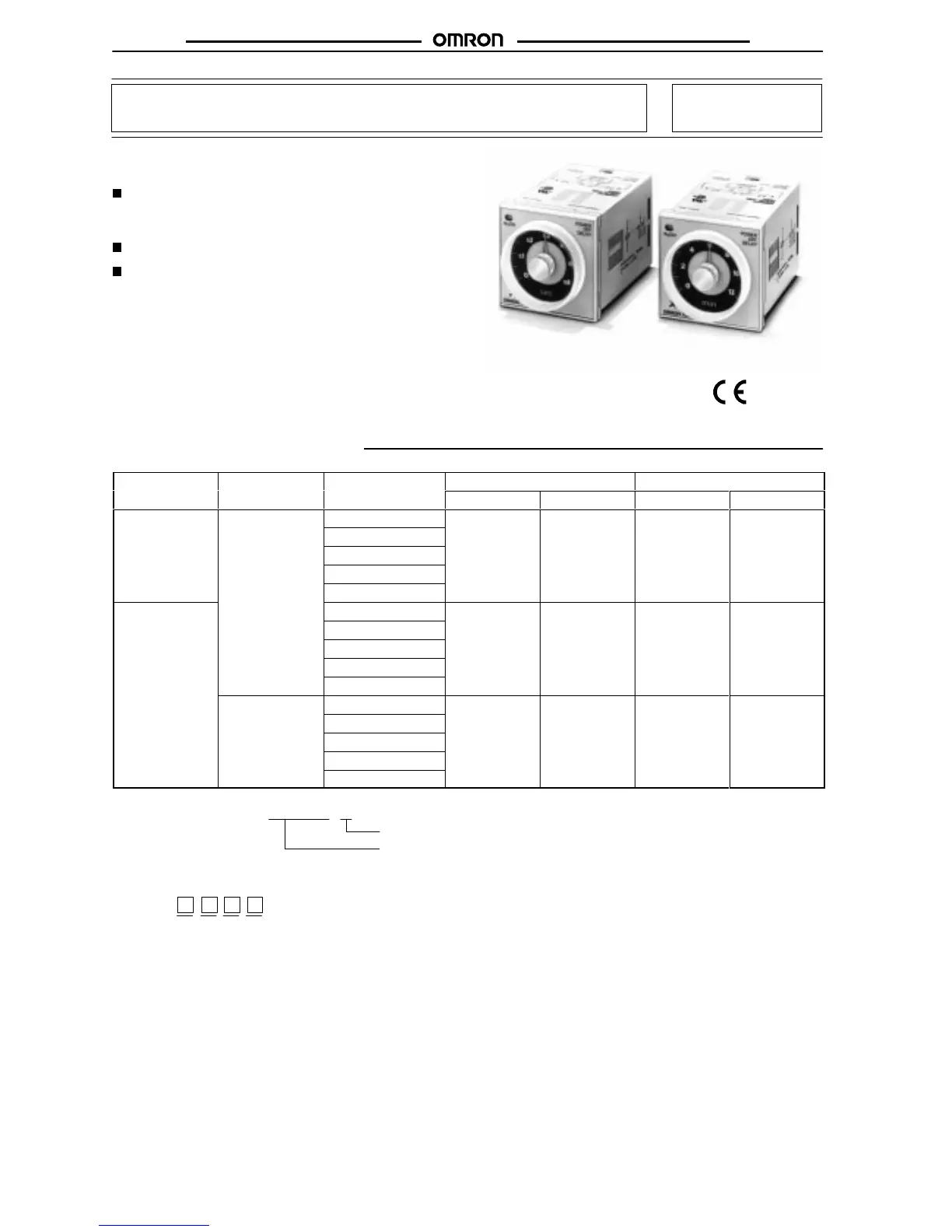

H3CR-H
H3CR-H
36
Solid-state Power OFF-delay Timer
H3CR-H
DIN 48 x 48-mm Power OFF-delay Timer
Long power OFF-delay times;
S-series: up to 12 seconds,
M-series: up to 12 minutes.
Models with forced-reset input are available.
11-pin and 8-pin models are available.
RC
Ordering Information
Input Output Supply
voltage
S-series M-series
1
1-pin models 8-pin models
1
1-pin models 8-pin models
--- DPDT
100 to 120 V
AC --- H3CR-H8L --- H3CR-H8L
200 to 240 V
AC
24 V
AC/DC
48 VDC
100 to 125 VDC
With reset input
100 to 120 V
AC H3CR-HRL --- H3CR-HRL ---
200 to 240 V
AC
24 V
AC/DC
48 VDC
100 to 125 VDC
SPDT
100 to 120 V
AC --- H3CR-H8RL --- H3CR-H8RL
200 to 240 V
AC
24 V
AC/DC
48 VDC
100 to 125 VDC
Note:
Specify both the supply voltage and time unit code (S or M) in addition to the model number when ordering.
Example: H3CR-H8L 24 V
AC/DC M
Supply voltage
T
ime unit code
Model Number Legend:
H3CR -
1 23
1.
Classification
H:
Power OFF-delay timer
2. Configuration
None: 11-pin socket
8: 8-pin socket
3. Input
None:
Without reset input
R:
With reset input
4. Dimensions
L:
Long-body model
4
