H3CR-H
H3CR-H
40

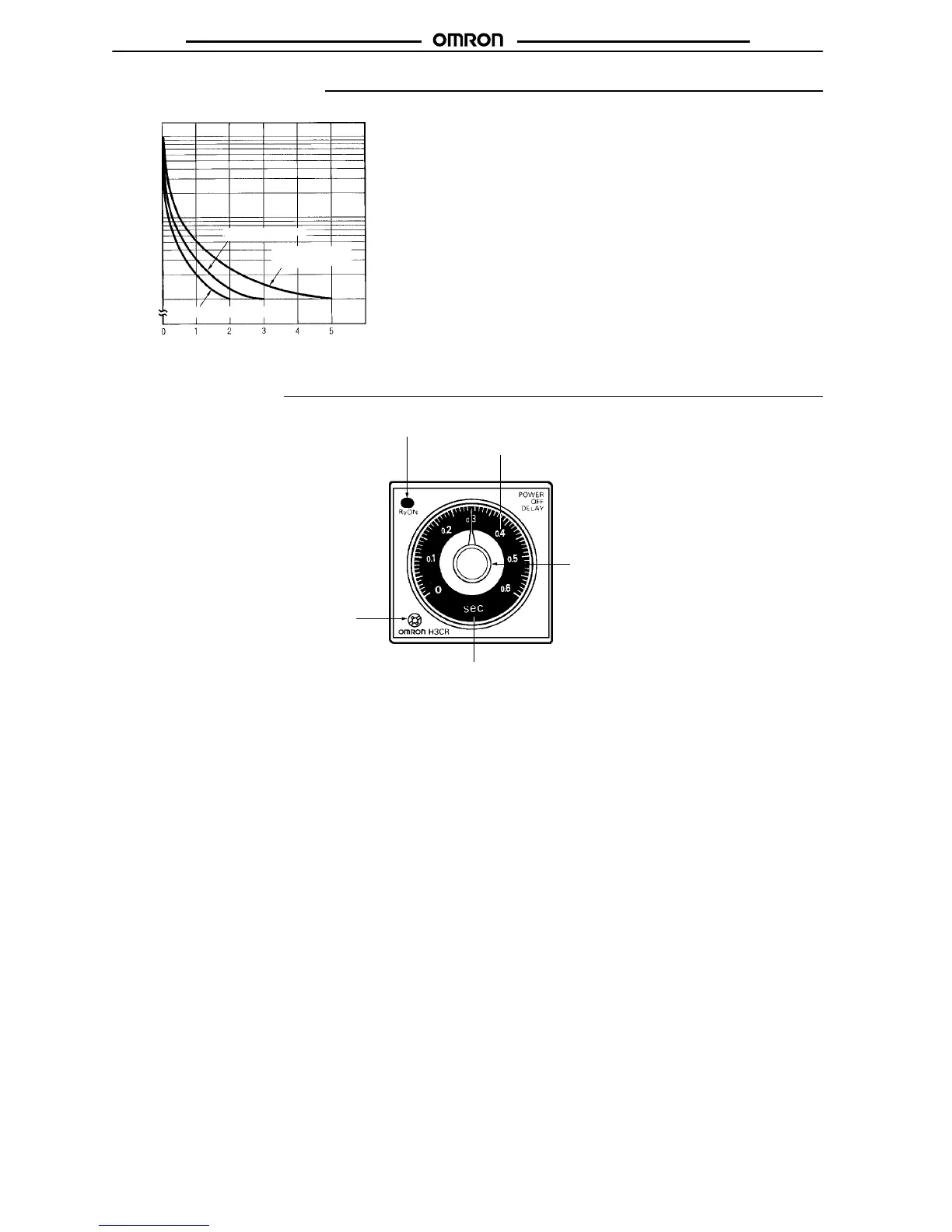

Engineering Data
Reference:
A maximum current of 0.15 A can be switched at 125 VDC (cos
f
= 1)
and a maximum current of 0.1 A can be switched if L/R is 7 ms. In
both cases, a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (failure level: P).
Load current (A)
30 VDC L/R = 7 ms
250 VAC/30 VDC
(cosf
= 1)
250 VAC (cosf
= 0.4)
Switching operations (x 10 )
3
10,000
5,000
1,000
500
100
Nomenclature
Time range selector (select
one
from 0.6, 1.2, 6, 12 at full
scale)
Output indicator (red)
Scale range display windows
Time unit display
S-series: sec
M-series: min
Time setting knob (for setting
power OFF-delay time)
