Omron H3CR-A8E User Manual

H3CR-H
H3CR-H
43

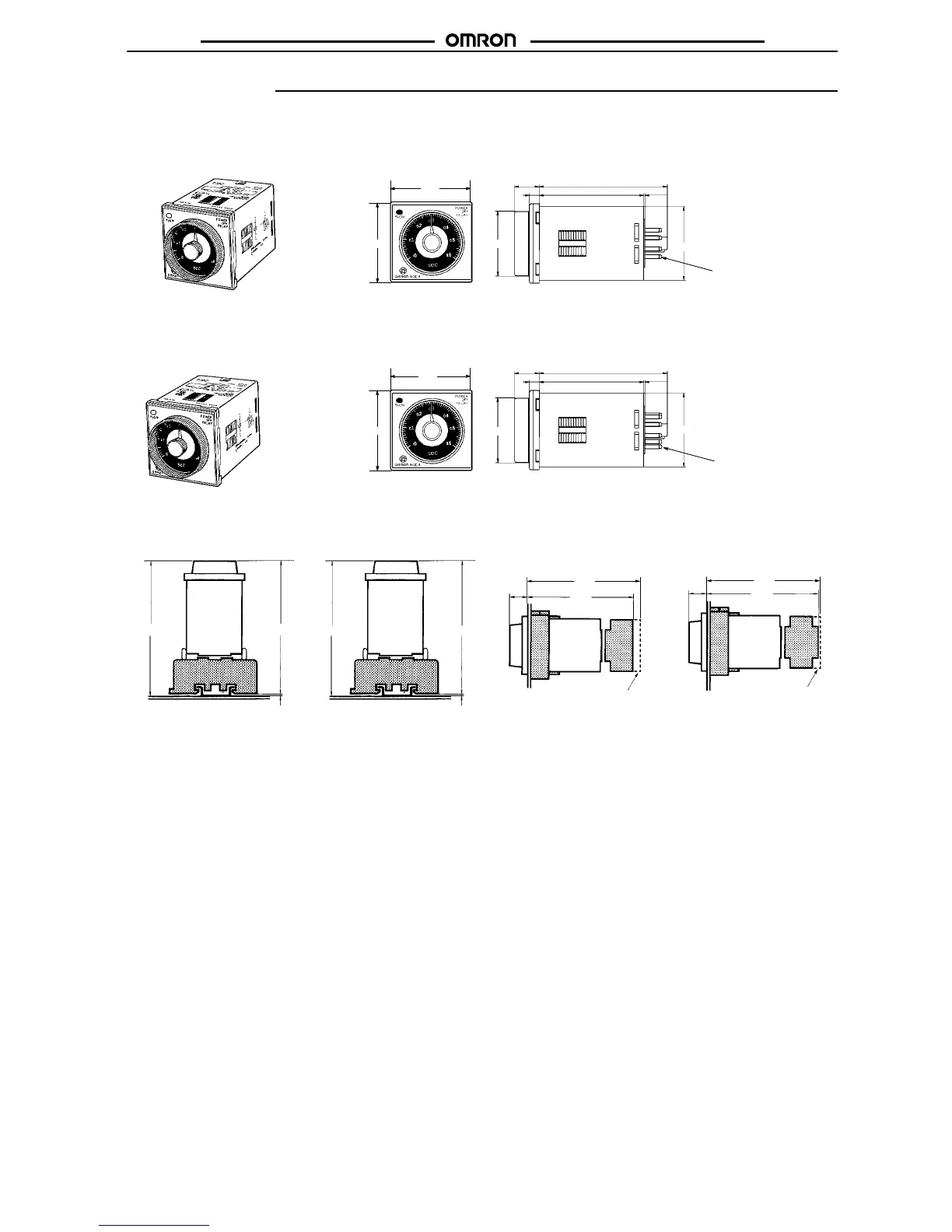

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H3CR-H8L
H3CR-H8RL
H3CR-HRL
15
78.0
6
39 dia.
63.7 0.7
44.8 x 44.8
15
78.0
6
39 dia.
63.7
0.7
44.8 x 44.8
48
48
48
48
8 pins
11 pins
Dimensions with Front Connecting Socket
P2CF-08-j/P2CF-11-j
P2CF-11
112.2* 109.9
2.3*
Y92F-30
P3G-08
15
91.4
H3CR-HRL
P2CF-08
101.3* 99
2.3
*
Y92F-30
P3GA-11
15
86.4
Dimensions with Back Connecting Socket
P3G-08/P3GA-11
H3CR-H8jL
P2CF-08-E
P2CF-11-E
H3CR-
H8jL
H3CR-HRL
*These dimensions vary with the kind of DIN track (reference value).
92.9
92.9
(When
Y92A-48G
mounted)
(When
Y92A-48G
mounted)
