H5CZ
7

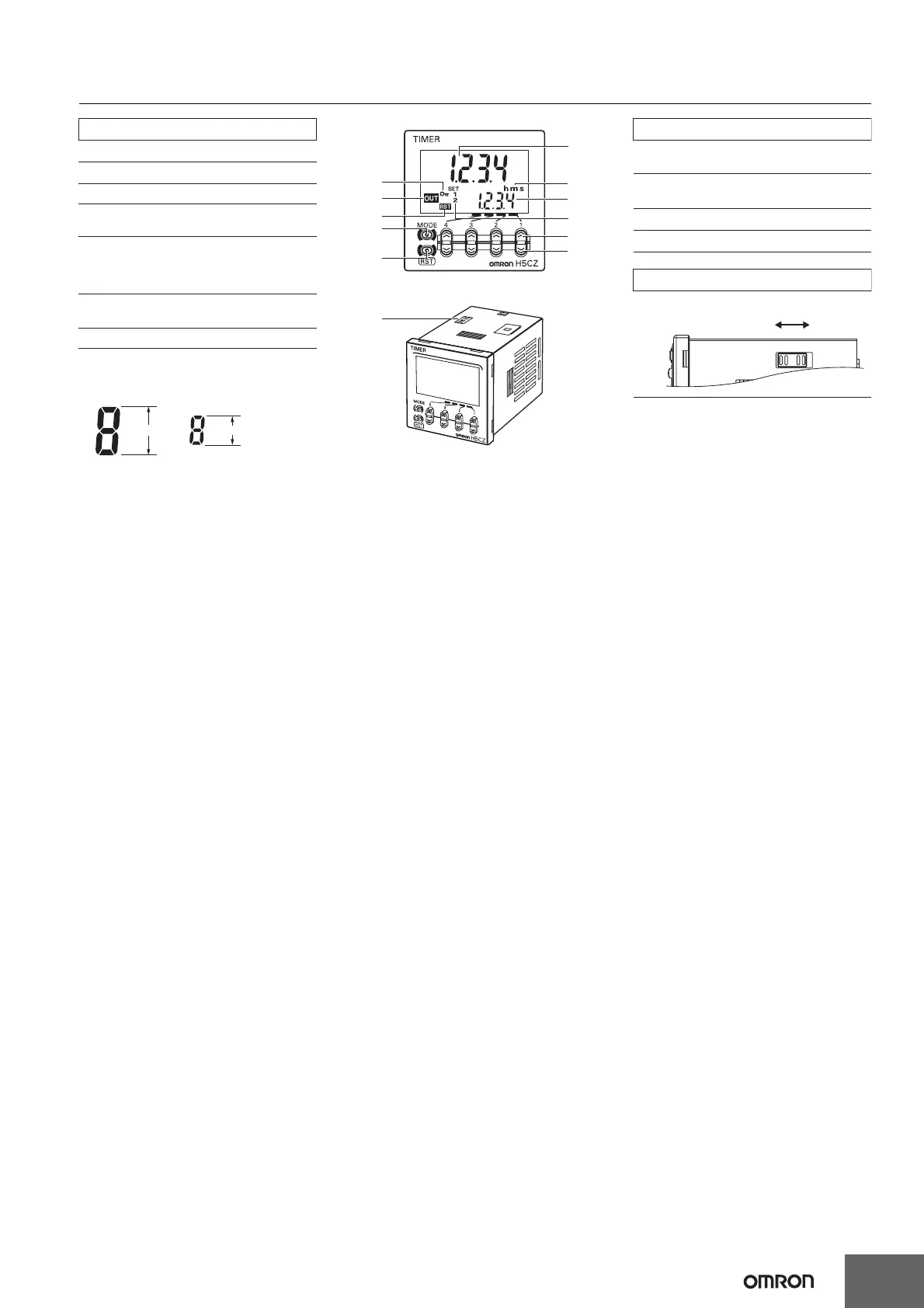

Nomenclature
10 mm
6 mm
12
3
2
8
9
5
4
6
7
11
10
1
Display Section
1. Key Protect Indicator
2. Control Output Indicator
Front View
Character Size
for Present
Value Display
Character Size
for Set Value
Display
3. Reset Indicator
Operation Key
Switches
8. Mode Key
(Changes modes and setting items)
9. Reset Key
(Resets present value and output)
10. Up Keys 1 to 4
11. Down Keys 1 to 4
12. Key-protect Switch
6. Set Value Display
(Sub-display)
(Character height: 6 mm)
7. Set Value 1, 2 Indicator
4. Present Value Display
(Main display)
(Character height: 10 mm)
5. Time Unit Indicators
(If the time range is 0 min, 0 h, 0.0 h, or 0 h
0 min, these indicators flash to indicate
timing operation.)
OFF
(Disabled)
ON
(Enabled)
(Default setting)
