Omron H5CZ User Manual

H5CZ
8

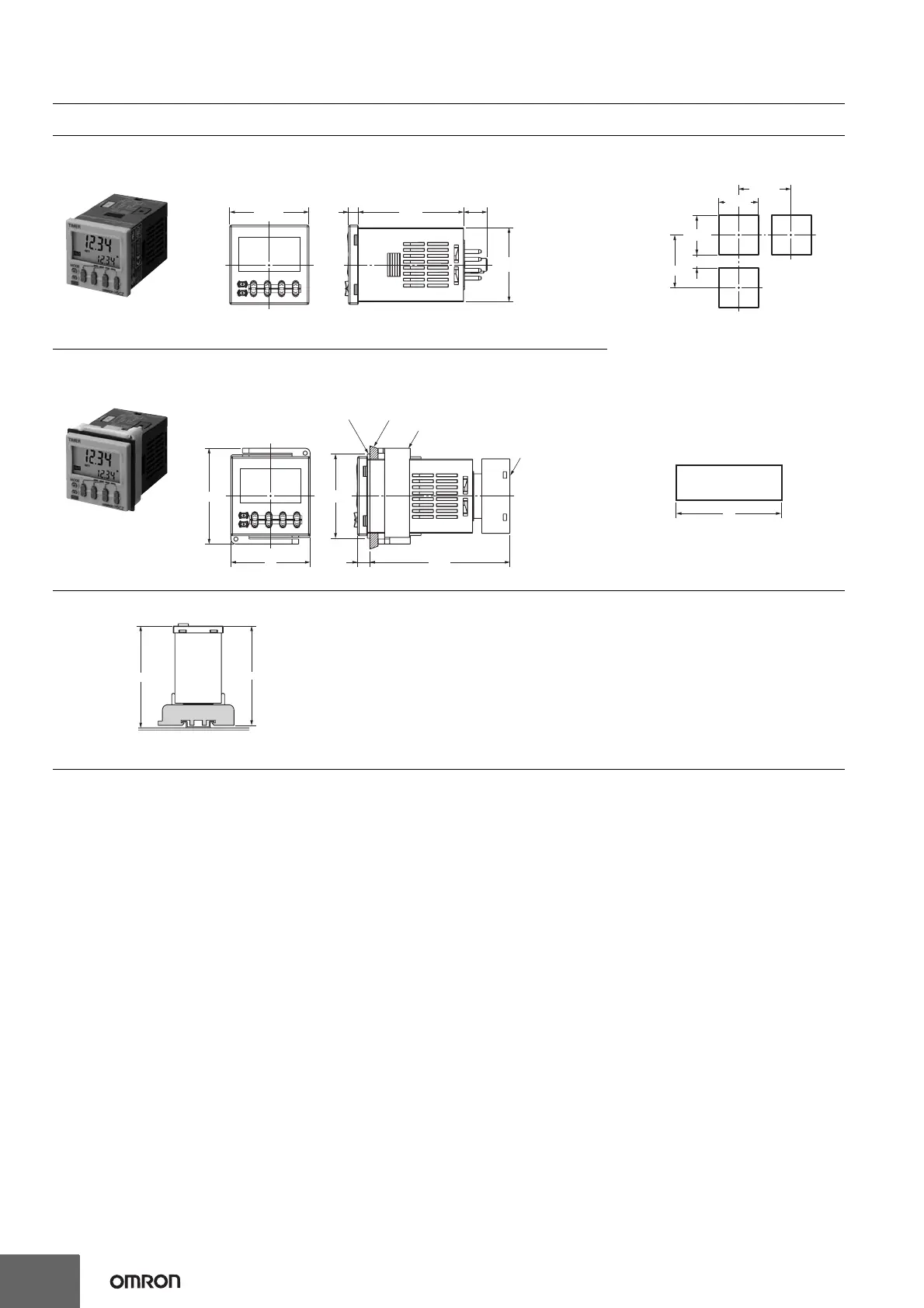

Dimensions (unit: mm)
Digital Timers
Digital Timers
H5CZ-L8@ (Flush Mounting/Surface Mounting Models)
63.7
14.2
6
44.8×44.8
48×48
Panel Cutouts
Panel cutouts areas shown below. (according
to DIN43700).
Note: 1. The mounting panel thickness
should be 1 to 5 mm.
2. To allow easier operation, it is
recommended that Adapters be
mounted so that the gap between
sides with hooks is at least 15 mm
(i.e., with the panel cutouts
separated by at least 60 mm).
3. It is possible to mount Timers side
by side, but only in the direction
without the hooks. (However, if
Timers are mounted side by side,
water resistance will be lost.)
60 min.
60 min.
45
+0.6
0
45
+0.6
0
15 min.
A
A=(48n-2.5)
With Y92A-48F1 attached.
A={48n-2.5+(n-1)×4}
With Y92A-48 attached.
A = (51n - 5.5)
n Units mounted side-by-side
+1
–0
+1
–0
+1
–0
Dimensions with Flush Mounting Adapter
H5CZ-L8@ (Adapter and Waterproof Packing Ordered Separately)
58
48
84.87.5
(51)
Y92F-30 (order separately)
Flush Mounting Adapter
P3G-08 (order
separately)
Back-connecting
Socket
PanelY92S-29 (order separately)
Waterproof Packing
H5CZ
-L8@
P2CF-08(-E) (order separately)
Front Connecting Socket
92.3
90
*
Dimensions with Front Connecting Socket
* These dimensions vary with the type of DIN track (reference value).
