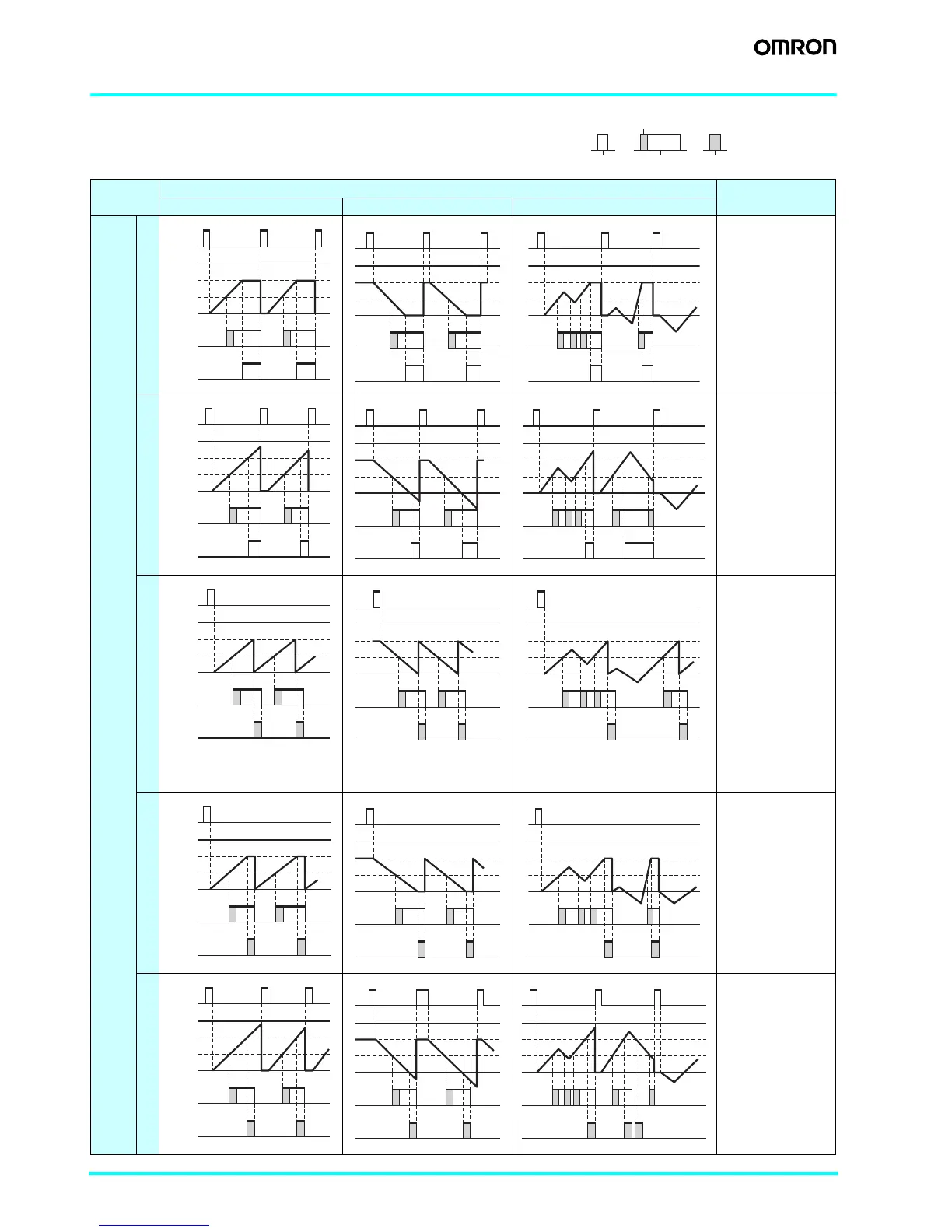

■ Input/Output Mode Settings
Operation for 1-stage models is the same as that for OUT2.
When using a 2-stage model as a 1-stage counter, total and preset counter,
or dual counter, OUT1 and OUT2 turn ON and OFF simultaneously.
Input mode
Operation after count
completion
UP DOWN UP/DOWN A, B, C
Output
mode
setting
N
The outputs and present
value display are held
until reset/reset 1 input
turns ON.
F
The present value
display continues to
increase/decrease. The
outputs are held until
reset/reset 1 input turns
ON.
C
As soon as the count
reaches SV, the present
value display returns to
the reset start status.
The present value
display does not show
the present value upon
count-up.
The outputs repeat one-
shot operation.
OUT1 self-holding
output turns OFF after
the OUT2 one-shot
output time.
The OUT1 one-shot
output time is
independent of OUT2.
R
The present value
display returns to the
reset start status after
the one-shot output
time.
The outputs repeat one-
shot operation.
OUT1 self-holding
output turns OFF after
the OUT2 one-shot
output time.
The OUT1 one-shot
output time is
independent of OUT2.
K-1
The present value
display continues to
increase/decrease.
OUT1 self-holding
output turns OFF after
the OUT2 one-shot
output time.
The OUT1 one-shot
output time is
independent of OUT2.
Self-holding
output
Self-holding
output
One-shot output from OUT1
One-shot output
from OUT2
(The one-shot output time
can be set in the range
0.01 to 99.99s.)
Reset/
reset 1
OUT1
OUT2
999999
Set
value 2
Set
value 1
0
Reset/
reset 1
OUT1
OUT2
999999
Set
value 2
Set
value 1
0
Reset/
reset 1
OUT1
OUT2
999999
Set
value 2
Set
value 1
0
Reset/
reset 1
OUT1
OUT2
999999
Set
value 2
Set
value 1
0
Reset/
reset 1
OUT1
OUT2
999999
Set
value 2
Set
value 1
0
