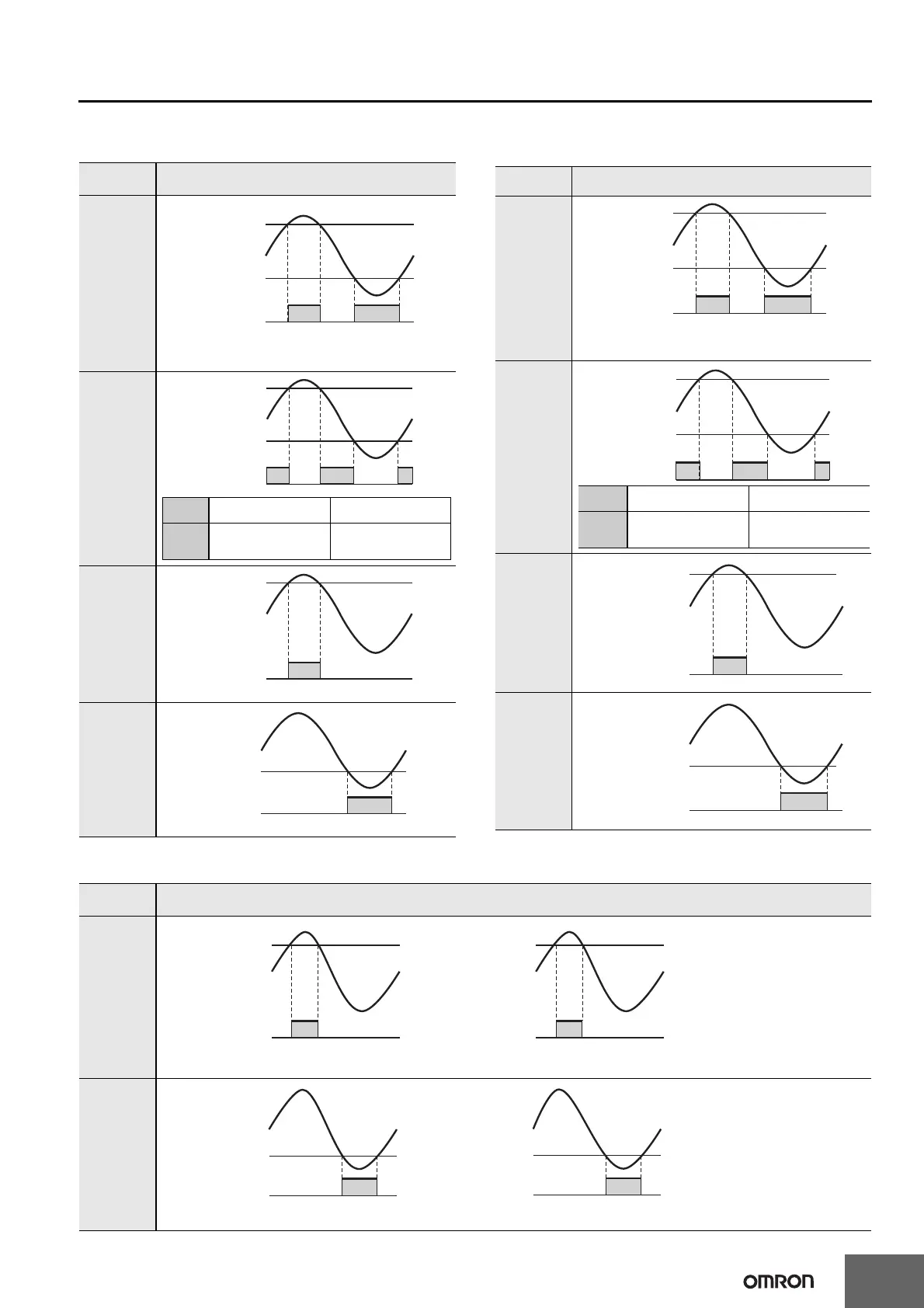

Output Mode Settings
Models Other Than H7CX-R11W@ in Tachometer Mode Models Other Than H7CX-R11W@ in AMD-compatible
Mode
Note: If time “a” is exceeded during operation, the output will turn ON. If time “b” is
exceeded during operation, the output will turn OFF. (If average processing is
enabled, the output operation will be performed when the time is exceeded once.)
H7CX-R11W@
Output mode
setting
Operation
Upper and
lower limit
ON condition: Measurement value ≤ Comparison value 1 or
Measurement value ≥ Comparison value 2
Note: When comparison value 1 ≥ Comparison value 2, the output
isalways ON regardless of the comparison value.
Area
Upper limit
ON condition: Measurement value ≥ Comparison value
Lower limit
ON condition: Measurement value ≤ Comparison value
OUT
Measurement
value
Comparison value 2
(Upper-limit)
Comparison value 1
(Lower-limit)
Condi-
tion
Comparison value 1 ≤
Comparison value 2
Comparison value 1 >
Comparison value 2
ON con-
dition
Comparison value 1 ≤
measurement value ≤
Comparison value 2
Comparison value 2 ≤
measurement value ≤
Comparison value 1
OUT
Measurement
value
Comparison
value 2
Comparison
value 1
OUT
Comparison value
(Upper-limit)
Measurement value
OUT
Measurement value
Comparison value
(Lower-limit)
Output mode
setting
Operation
Upper and
lower limit
ON condition: Measurement value < Comparison value 1 or
Measurement value ≥ Comparison value 2
Note: When comparison value 1 ≥ comparison value 2, the output
isalways ON regardless of the comparison value.
Area
Upper limit
ON condition: Measurement value ≥ Comparison value
Lower limit
ON condition: Measurement value < Comparison value
OUT
Measurement
value
Comparison value 2
(Upper-limit)
Comparison value 1
(Lower-limit)
a
Condi-
tion
Comparison value 1 ≤
Comparison value 2
Comparison value 1 >
Comparison value 2
ON con-
dition
Comparison value 1 ≤
measurement value <
Comparison value 2
Comparison value 2 ≤
measurement value <
Comparison value 1
OUT
Measurement
value
Comparison
value 2
Comparison
value 1
b
a
OUT
Comparison value
(Upper-limit)
Measurement value
b
Measurement value
Comparison value
(Lower-limit)
OUT
Output mode
setting
Operation
Upper limit
(HI)
Lower limit
(LO)
OUT1
CP1 display
value
Comparison
value 1
OUT2
CP2 display
value
Comparison
value 2
ON condition for output 1: CP1 present value (display value) ≥ Comparison value 1
ON condition for output 2: CP2 present value (display value)
≥ Comparison value 2
Output 1 Output 2
OUT1
CP1
display value
Comparison
value 1
OUT2
CP2
display value
Comparison
value 2
ON condition for output 1: CP1 present value (display value) ≤ Comparison value 1
ON condition for output 2: CP2 present value (display value) ≤ Comparison value 2
Output 1 Output 2
