Up/Down Counting Pulse Indicator K3HB-C 19
■ What Is Prescaling?
Prescaling converts the count value to any numeric value.

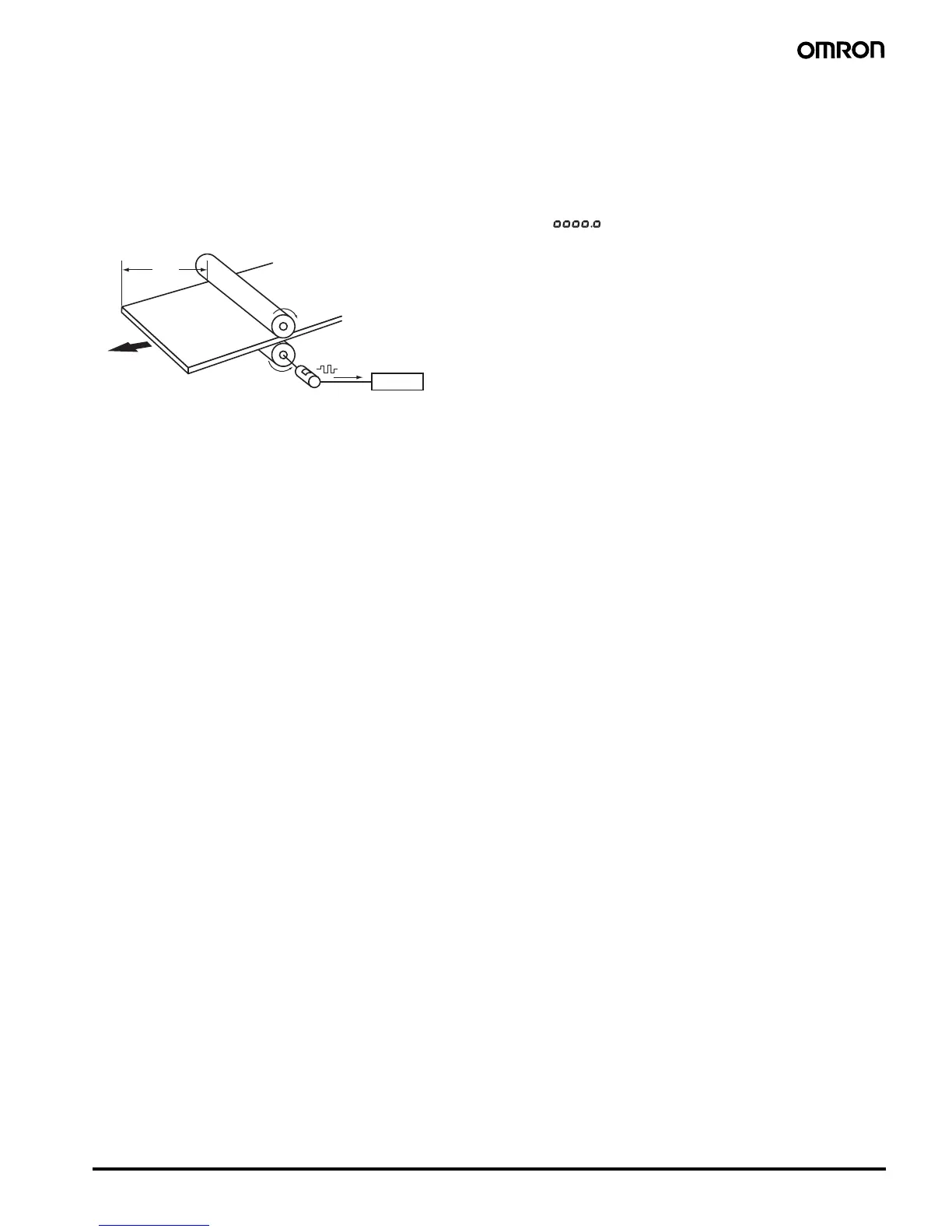

To di spl ay @@@@.@ mm in a system that outputs 250 pulses for a 0.5-m feed,
the length per pulse = 500 mm (0.5 m)
÷ 250 = 2.
1. The prescale value for the K3HB-C is set using the mantissa X
× exponent Y,
so the prescale value = 2.0000 × 10°,
X = 2.000, and Y = 00.
2. Next, set the decimal point position for one digit to the right of the decimal point:
K3HB-C
Encoder
0.5 m
250 pulses

Omron K3HB Specifications

General

Input Type	Thermocouple, RTD, Voltage, Current
Control Output	Relay, Voltage, Current
Communication	RS-485
Mounting	Panel
Humidity	25% to 85%
Supply Voltage	100-240 VAC, 24 VDC
