4 - 63
4 System Program
NA-series Programmable Terminal Hardware(-V1) User’s Manual (V125)
4-4 System Menu Details
4
4-4-17 Hardware Diagnostics (Device System Menu)

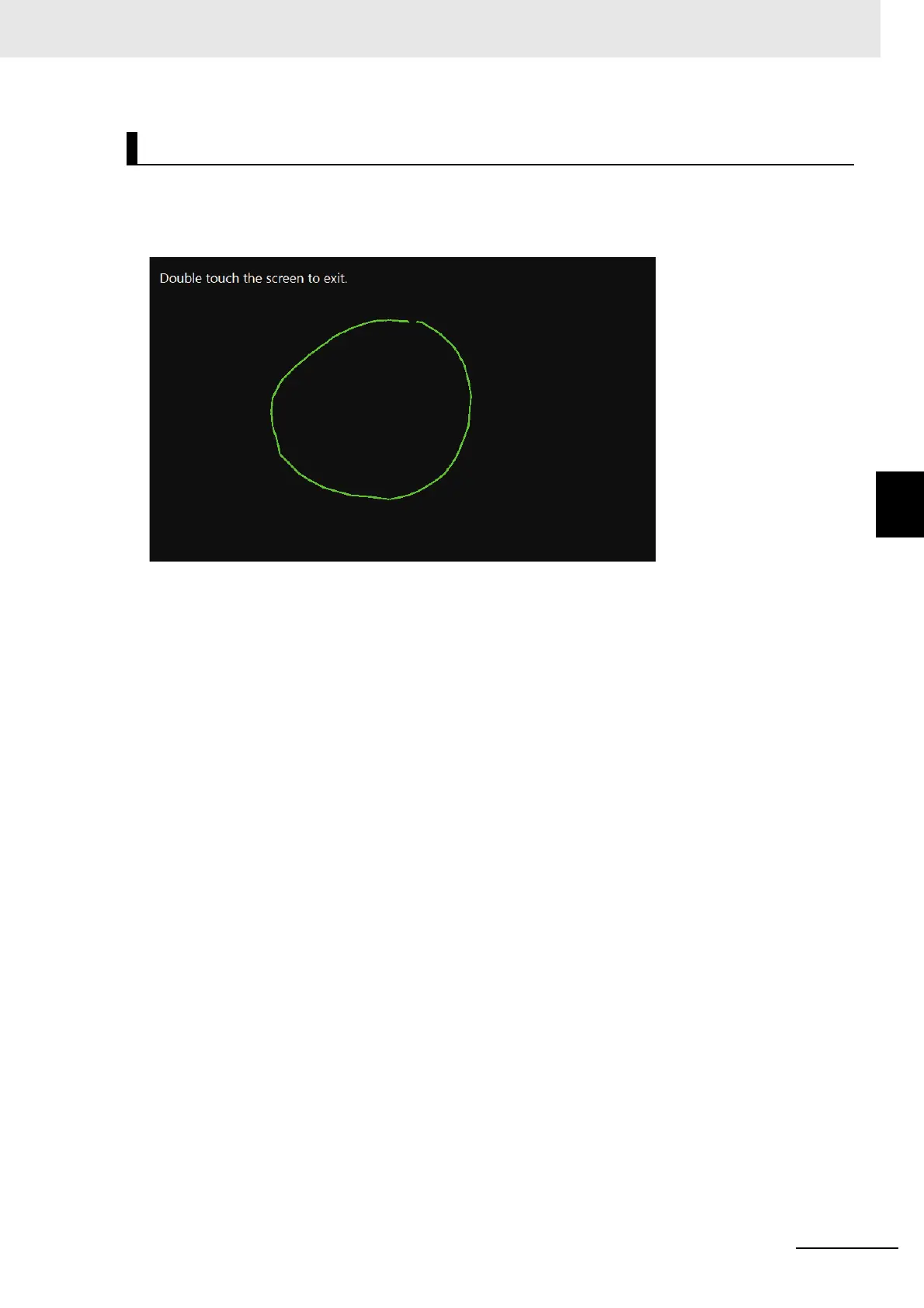

The locations that are touched are displayed as dots. Use this to check the operation of the touch
panel.
To end, double-tap any position.
Touch Panel Input
