Omron NA5-15W101S-V1 User Manual

1 Introduction to the NA-series Programmable Terminals
1 - 4
NA-series Programmable Terminal Hardware(-V1) User’s Manual (V125)

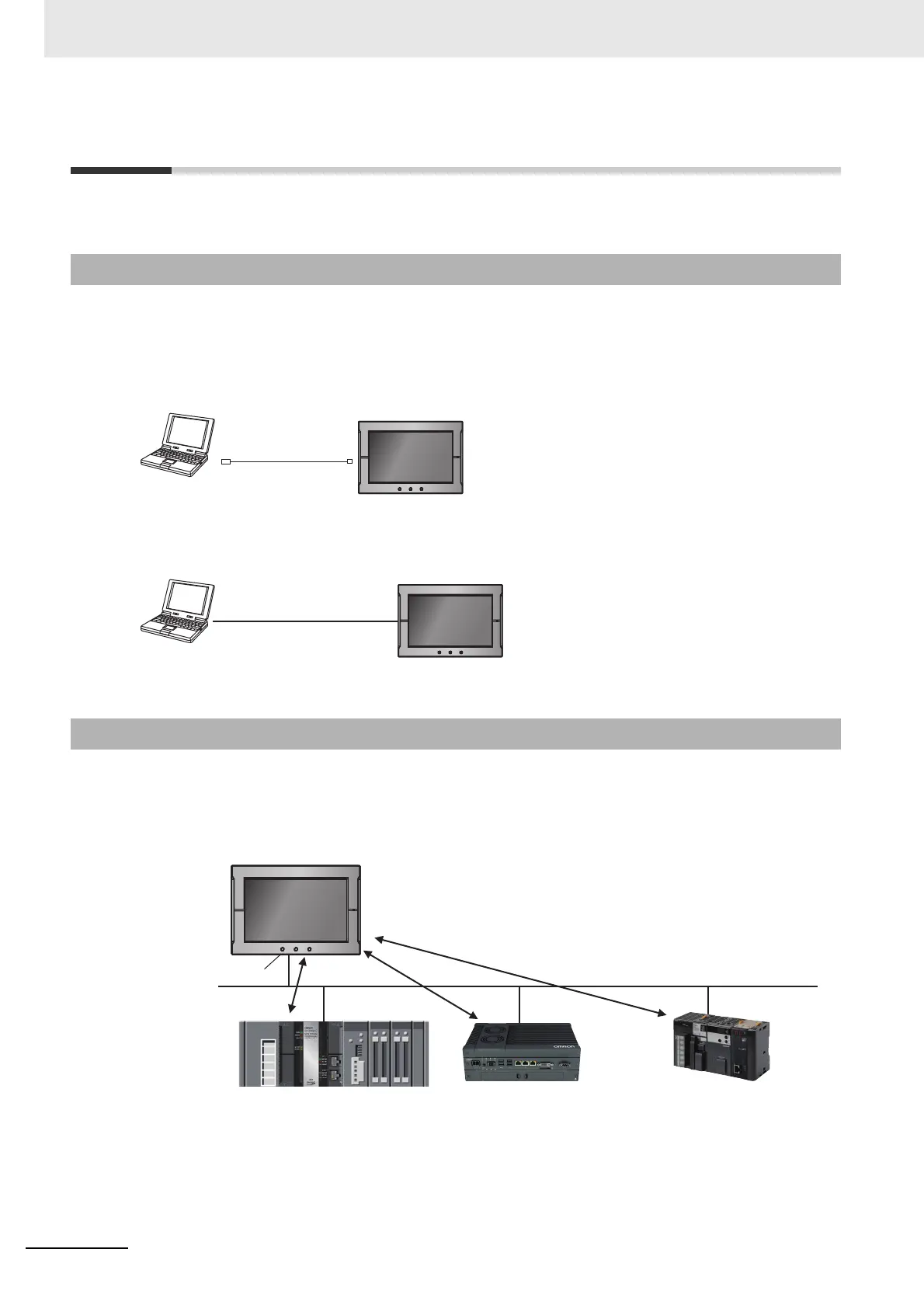

1-2 System Configurations
The section describes the system configurations of an NA-series PT.
You can connect the Sysmac Studio to a USB port on the NA Unit with a commercially available USB
cable. You can also connect it through an Ethernet cable that is connected to Ethernet port 2 on the NA
Unit. Refer to the NA-series Programmable Terminal Software User's Manual (V118) for details on the
connection configuration with the Sysmac Studio.
With an NA-series PT, you use Ethernet to connect to connected devices.
You can connect an NJ/NX/NY-series Controller, PLC, or other device to Ethernet port 1 on the NA Unit
with an Ethernet cable.
1-2-1 Connecting to the Support Software
1-2-2 Network Configuration with Other Devices
NA Unit
NA Unit
Commercially available
USB cable
or
Ethernet cable
Sysmac Studio
Sysmac Studio
NA Unit
NJ/NX-series
Controller
NY-series
Industrial PC
CJ-series PLC
EthernetEthernet ports

Omron NA5-15W101S-V1 Specifications

General

Touch Technology	Analog Resistive
Operating System	Windows Embedded Compact 7
Power Supply	24 VDC
Brightness	400 cd/m²
Backlight	LED
USB	2 ports (USB 2.0)
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Resolution	1024 x 768 pixels
Connectivity	Ethernet, USB
Ethernet	10/100 Mbps
Protection Rating	IP65 (front)
