A-2 External Dimensions
App
A-1-3 Communication Specifications

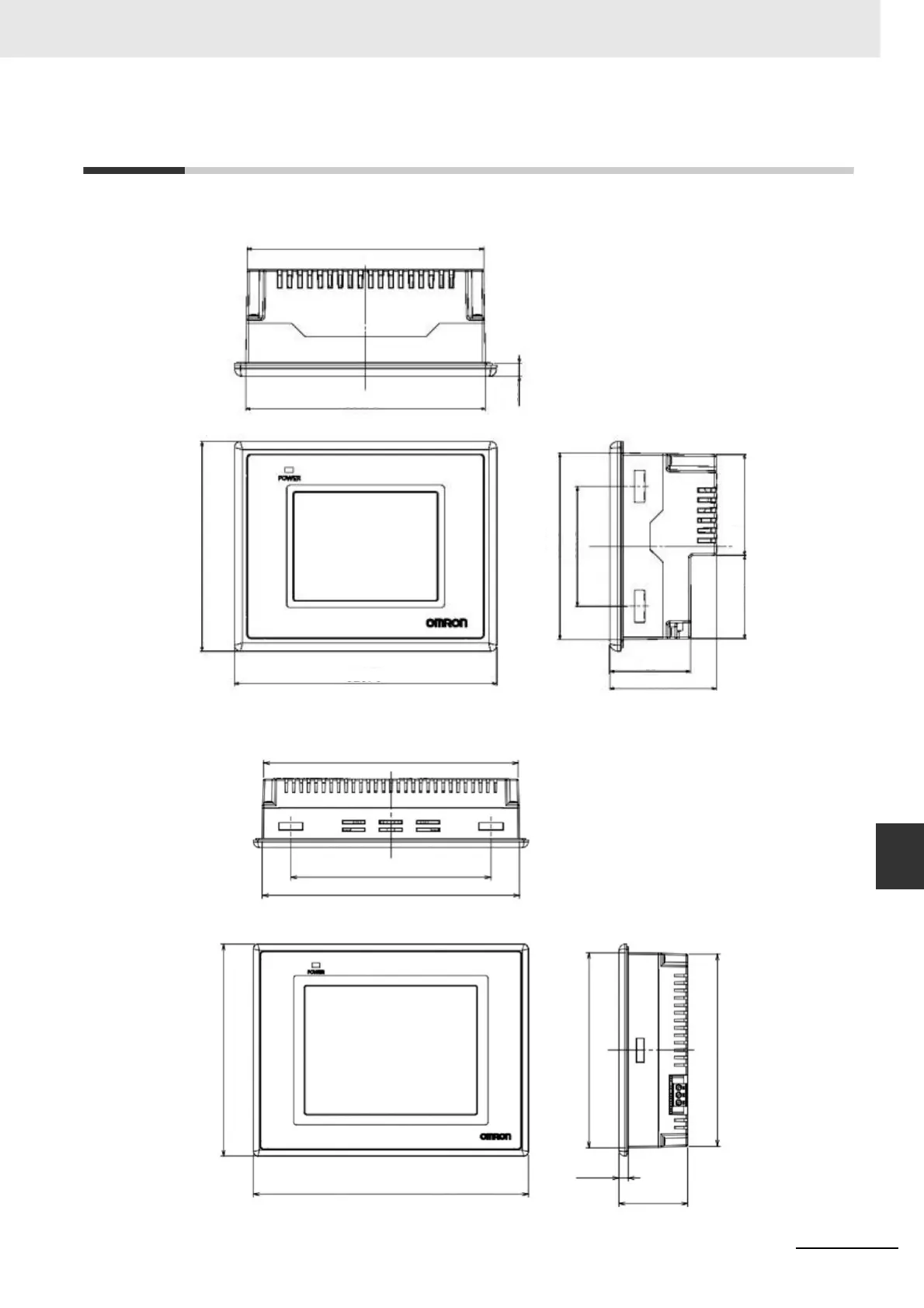

A-2 External Dimensions
 NB3Q-TW00B/NB3Q-TW01B model
 NB5Q-TW00B/NB5Q-TW01B model
116.9
118.5
103.8
92.5
41.2
49.9
59.4
6.5
129.8
40
52.8
170.4
134
172.2
142
184
130.8
129
6.2
46
