3-3-3 Selecting a Power Supply Unit
Rack Current Consumption and Width Display

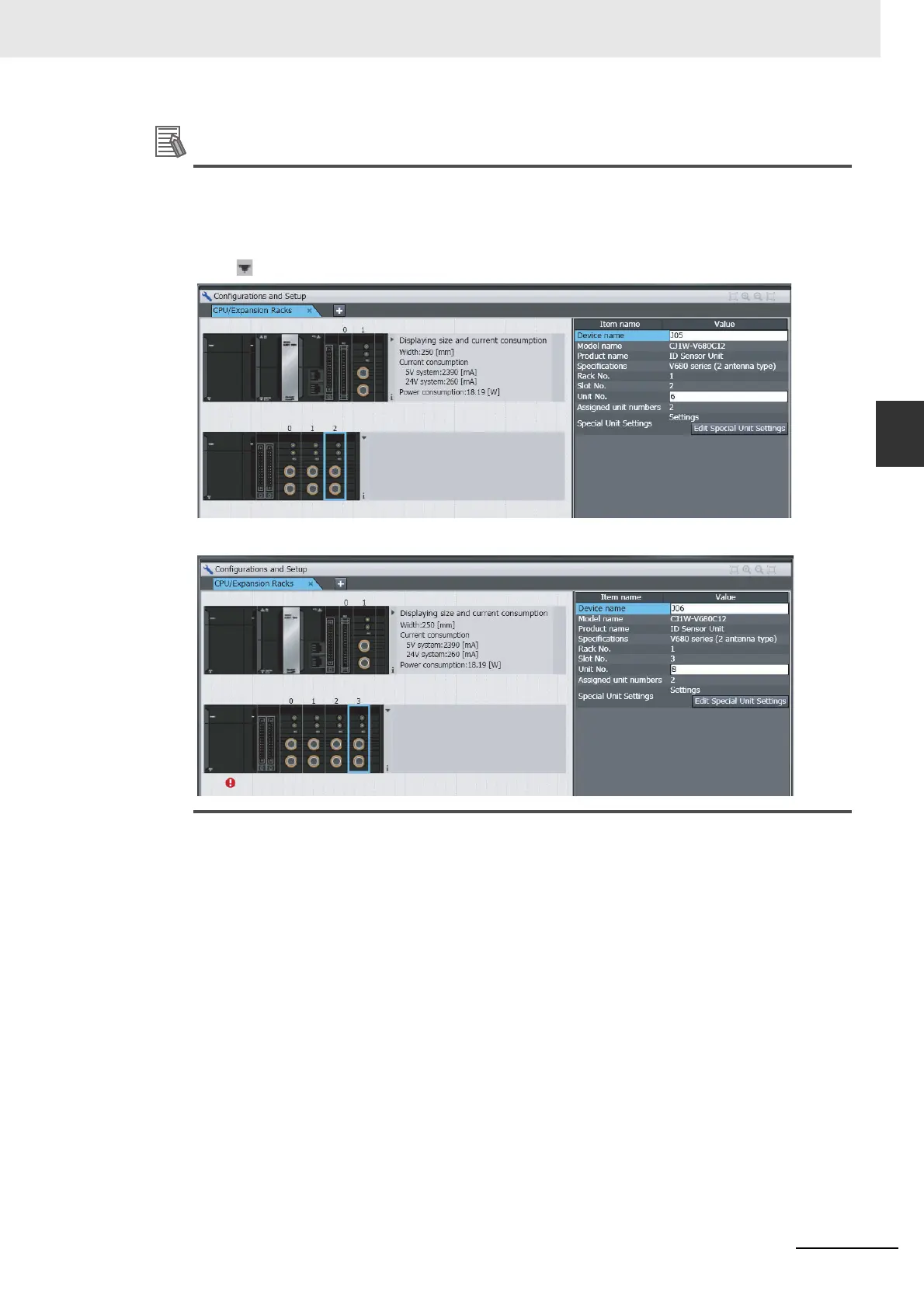

The width, current consumption, and power consumption for each Rack are displayed on the
right side of the CPU/Expansion Racks Tab Page in the Controller Configurations and Setup of
the Sysmac Studio.
Click to display the information for the Rack.
If the capacity of a Power Supply Unit is exceeded, the display will turn red.
