7 - 19

7 SSI Input Units

NX-series Position Interface Units User’s Manual (W524)

7-6 I/O Refreshing Method Setting

7-6-3 Synchronous I/O Refreshing

Use the following procedure to select Enabled (DC for synchronization) from the Enable Distributed

Clock setting for the EtherCAT Coupler Unit and use synchronous I/O refreshing for SSI Input Units that

are connected to an EtherCAT Coupler Unit.

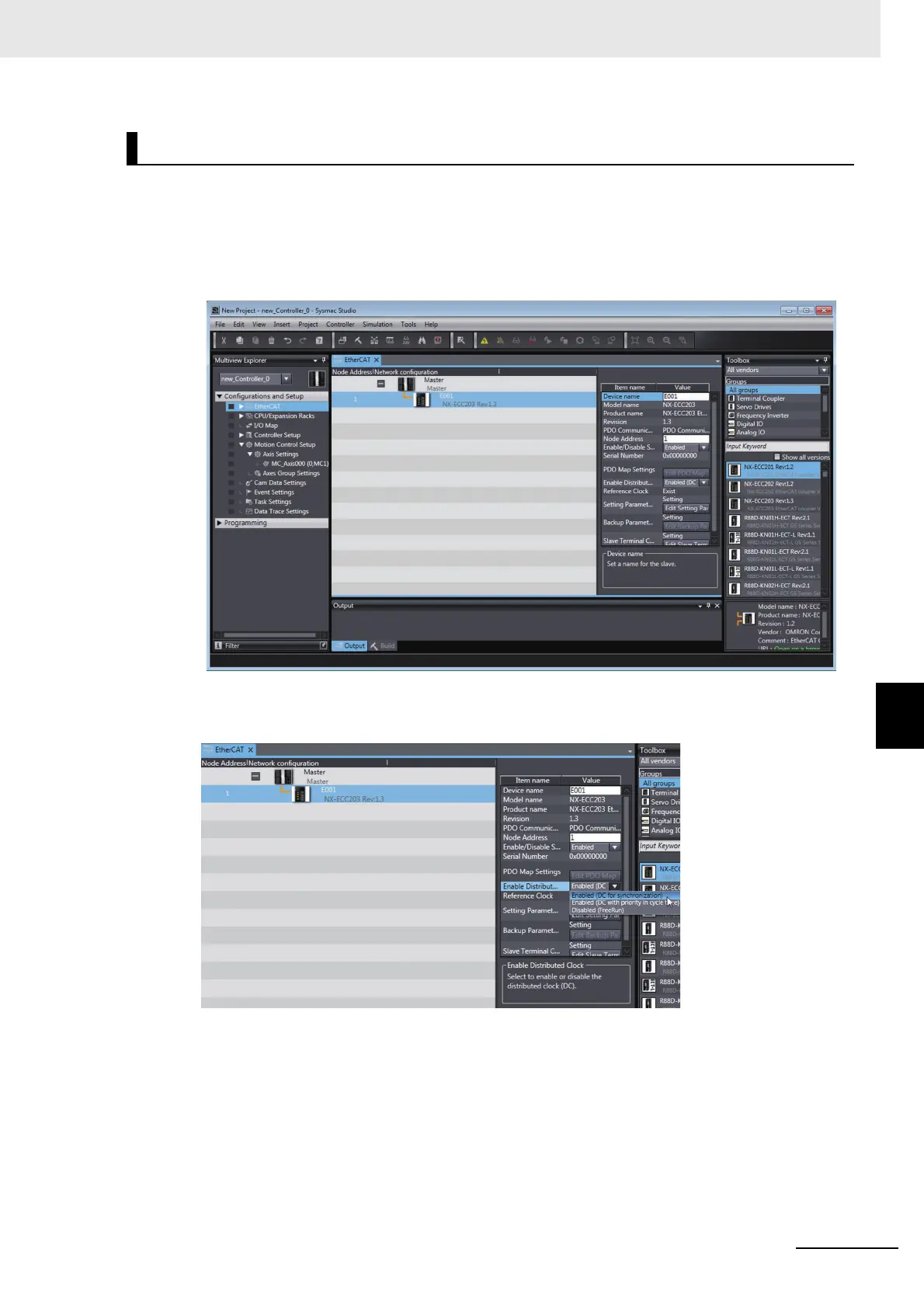

1 Double-click EtherCAT in the Multiview Explorer.

The following tab page is displayed.

2 Click the EtherCAT Coupler Unit under Configurations and Setup.

Change the Enable Distributed Clock setting to Enabled (DC for synchronization).

As a result, synchronous I/O refreshing is used.

Setting with the Sysmac Studio
