Omron NX-EC0122 User Manual

8 Pulse Output Units
8 - 68
NX-series Position Interface Units User’s Manual (W524)
Precautions for Correct Use
When a deceleration stop with set deceleration rate is selected, pulse output automatically
decelerates to a stop at the set deceleration rate based on the velocity when the error is
detected. Therefore, the stop position cannot be controlled.
Furthermore, if the motion command from the Controller must be interrupted due to the velocity
at this time, the operation may change when the error is detected.

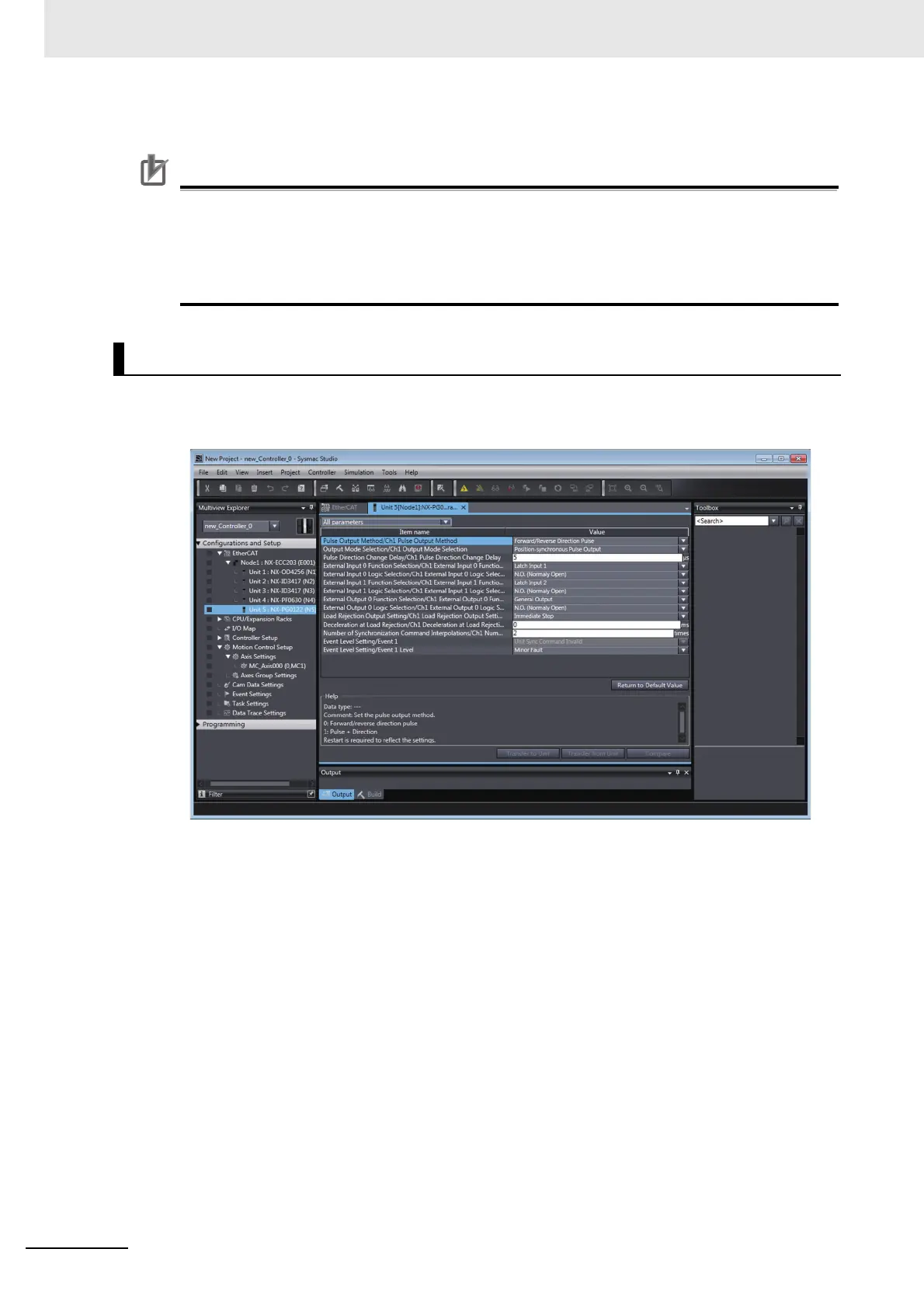

1 Double-click the Pulse Output Unit in the Multiview Explorer.
The following tab page is displayed.
2 Set the Load Rejection Output Setting and Deceleration at Load Rejection parameters.
Setting with the Sysmac Studio
