NX-series Position Interface Units User’s Manual (W524)

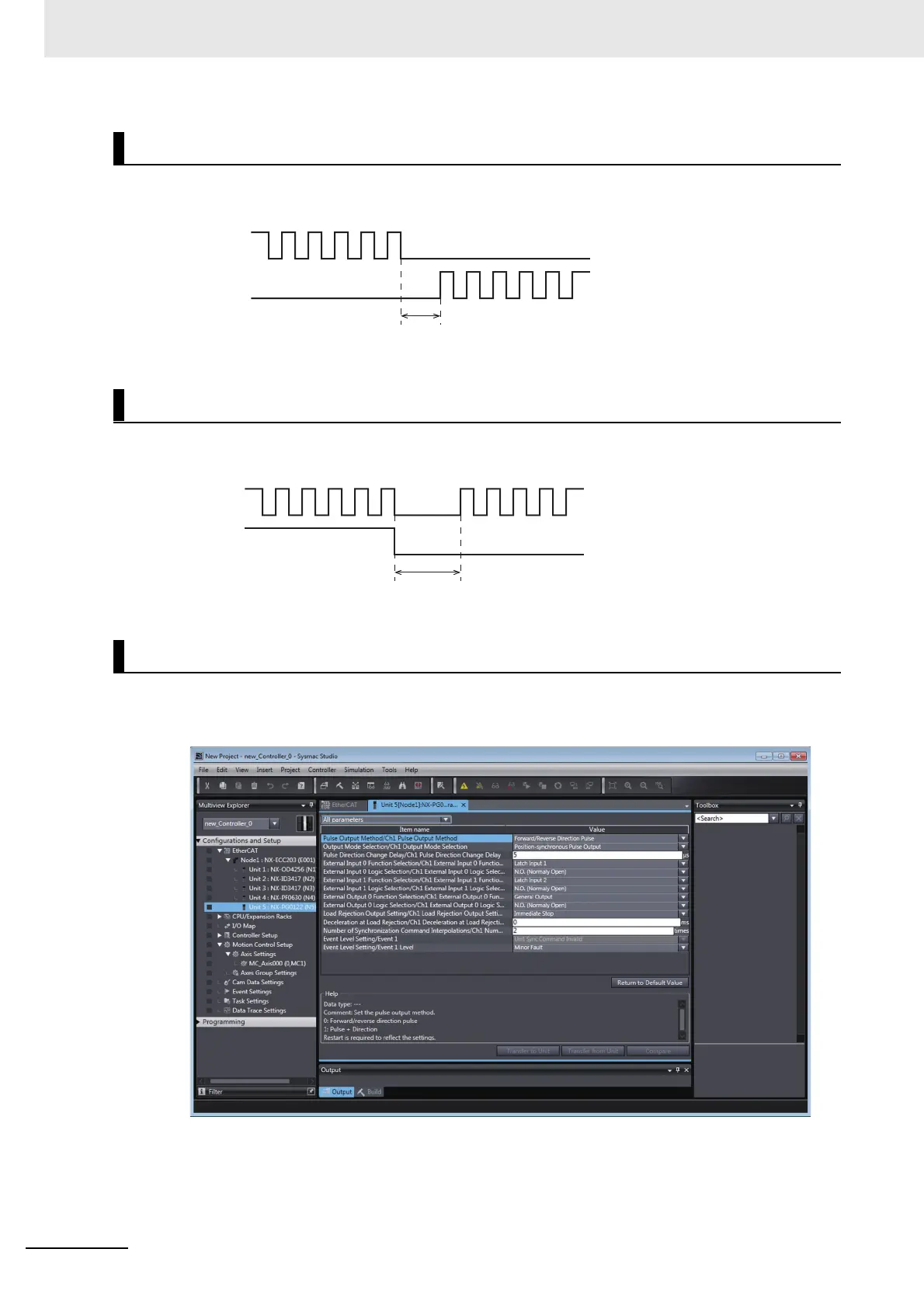

Set the pulse direction change delay as shown below when the Pulse Output Method parameter is set
to Forward/reverse direction pulse.
Set the pulse direction change delay as shown below when the Pulse Output Method parameter is set
to Pulse + direction.
1 Double-click the Pulse Output Unit in the Multiview Explorer.
The following tab page is displayed.
2 Set the Pulse Direction Change Delay parameter.
Wait Time for Forward/Reverse Direction Pulse Outputs
Wait Time for Pulse + Direction Outputs
Setting with the Sysmac Studio
Pulse output A
Pulse output B
Pulse direction change delay
PLS output
DIR output
Pulse direction change delay
