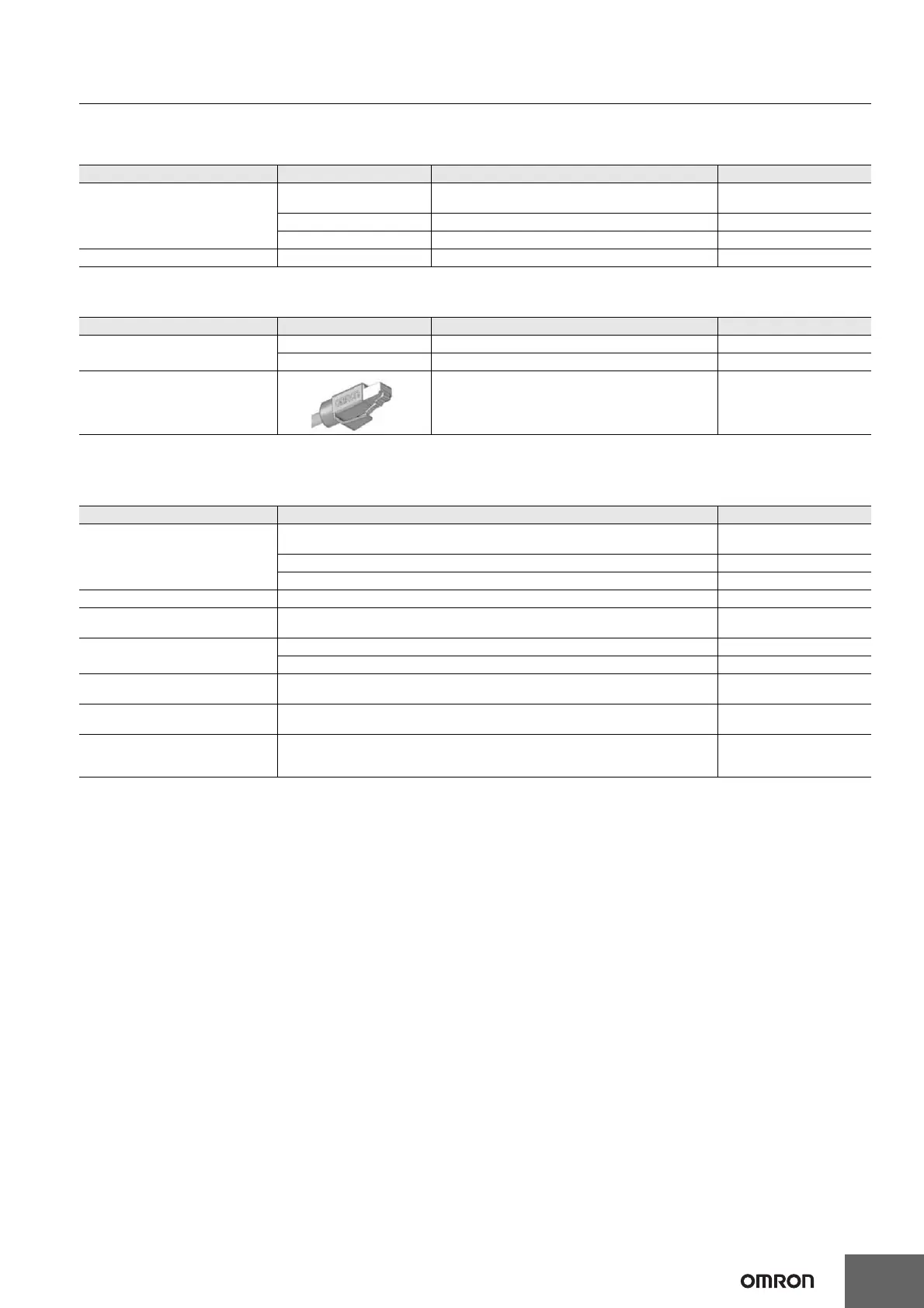

Machine Automation Controller NX1
15
Cables / Connectors (For EtherCAT or EtherNet/IP (100BASE-TX))
Wire Gauge and Number of Pairs: AWG24, 4-pair Cable
*1. We recommend you to use above cable and connector together.
Wire Gauge and Number of Pairs: AWG22, 2-pair Cable
*1. We recommend you to use the above Cable and OMRON’s RJ45 Assembly Connector together.
Note: Connect both ends of cable shielded wires to the connector hoods.
Optional Products/Maintenance Products/DIN Track Accessories
*1. HMC-SD1A1 can be used for a CPU Unit with unit version 1.32 or later.
Item Appearance Recommended manufacturer Model
Cables
--- Hitachi Metals, Ltd.
NETSTAR-C5E SAB
0.5 × 4P CP *
1
--- Kuramo Electric Co. KETH-SB *
1
--- SWCC Showa Cable Systems Co. FAE-5004 *
1
RJ45 Connectors --- Panduit Corporation MPS588-C *
1
Item Appearance Recommended manufacturer Model
Cables
--- Kuramo Electric Co. KETH-PSB-OMR *
1
--- JMACS Japan Co., Ltd. PNET/B *
1
RJ45 Assembly Connector OMRON XS6G-T421-1 *
1
Product Name Specification Model
Memory Cards
SD memory card, 2 GB
The HMC-SD291 Memory Card is provided with the NX102-@@20.
HMC-SD291
SDHC memory card, 4 GB HMC-SD491
SDHC memory card, 16 GB HMC-SD1A1 *
1
Battery Refer to the Battery page for details. CJ1W-BAT01
End Cover
Must be connected to the right end of the CPU Rack.
One End Cover is provided with the CPU Unit
NX-END02
DIN Tracks
Length: 0.5 m, Height: 7.3 mm PFP-50N
Length: 1 m, Height: 7.3 mm PFP-100N
End Plate
There are 2 stoppers provided with CPU Units and I/O Interface Units as standard acces-
sories to secure the Units on the DIN Track.
PFP-M
Unit/Terminal Block Coding Pins
For 10 Units
(Terminal Block: 30 pins, Unit: 30 pins)
NX-AUX02
DIN Track Insulation Spacers
A Spacer to insulate the control panel from the DIN Track.
To insulate the EtherCAT Slave Terminal from the control panel, use DIN Track Insulation
Spacers.
NX-AUX01
To Next Page
