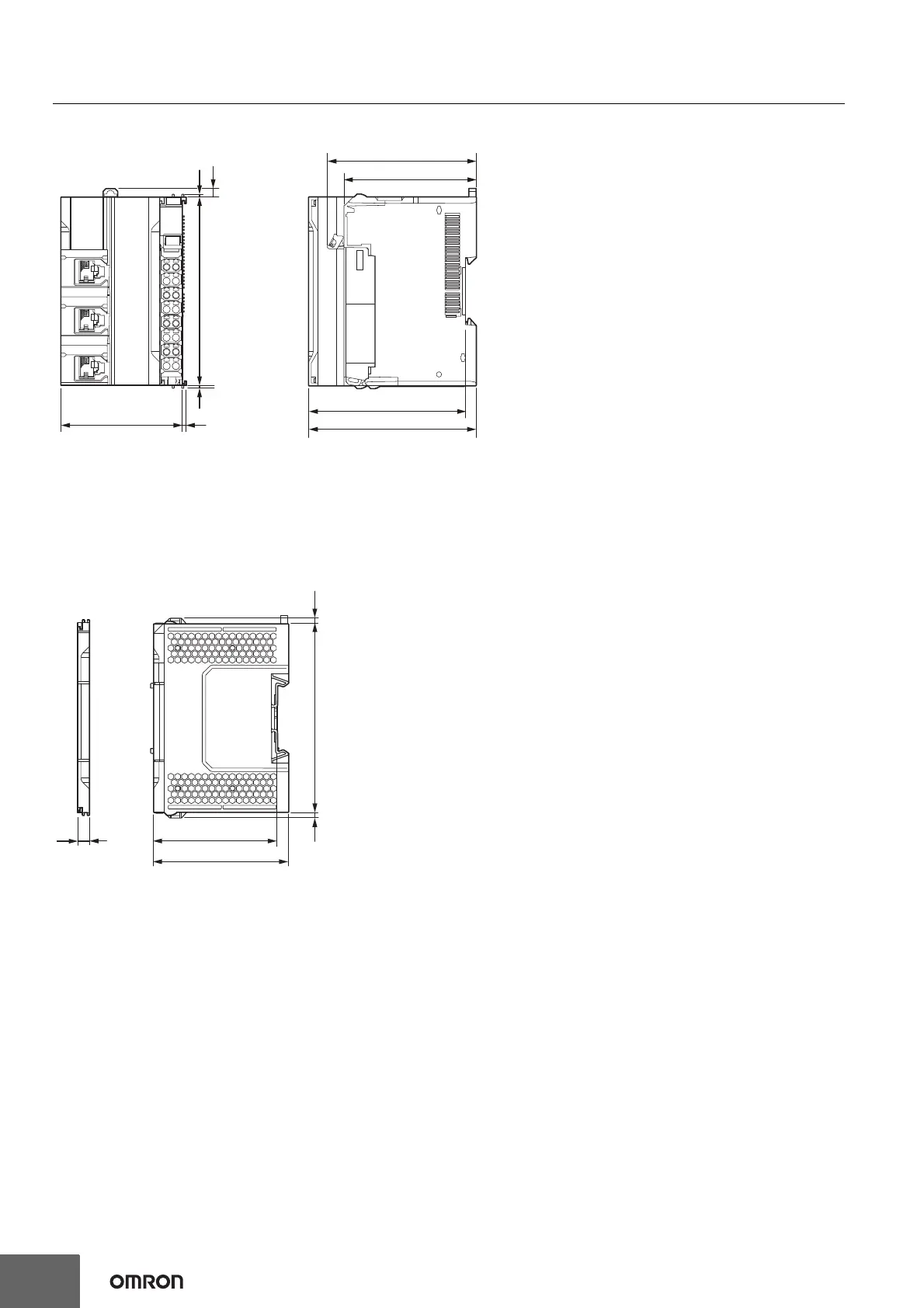

Dimensions (Unit: mm)
NX-Series NX102 CPU Unit
*1. The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.
*2. The dimension from the terminal block lock lever to the back surface of the CPU Unit.
For dimensions after attaching the communications cables, refer to NX-series NX102 CPU Unit Hardware User’s Manual (W593).
End cover
*1. The dimension from the attachment surface of the DIN Track to the front surface of the end cover.
66 2.1
1.5
4.5
100
84.2
*1
80
*2
71
90
1.5
Unit: [mm]
NX102-
Unit: [mm]
65.2
*1
71
6
100
1.5 1.5
NX-END02
