2-3

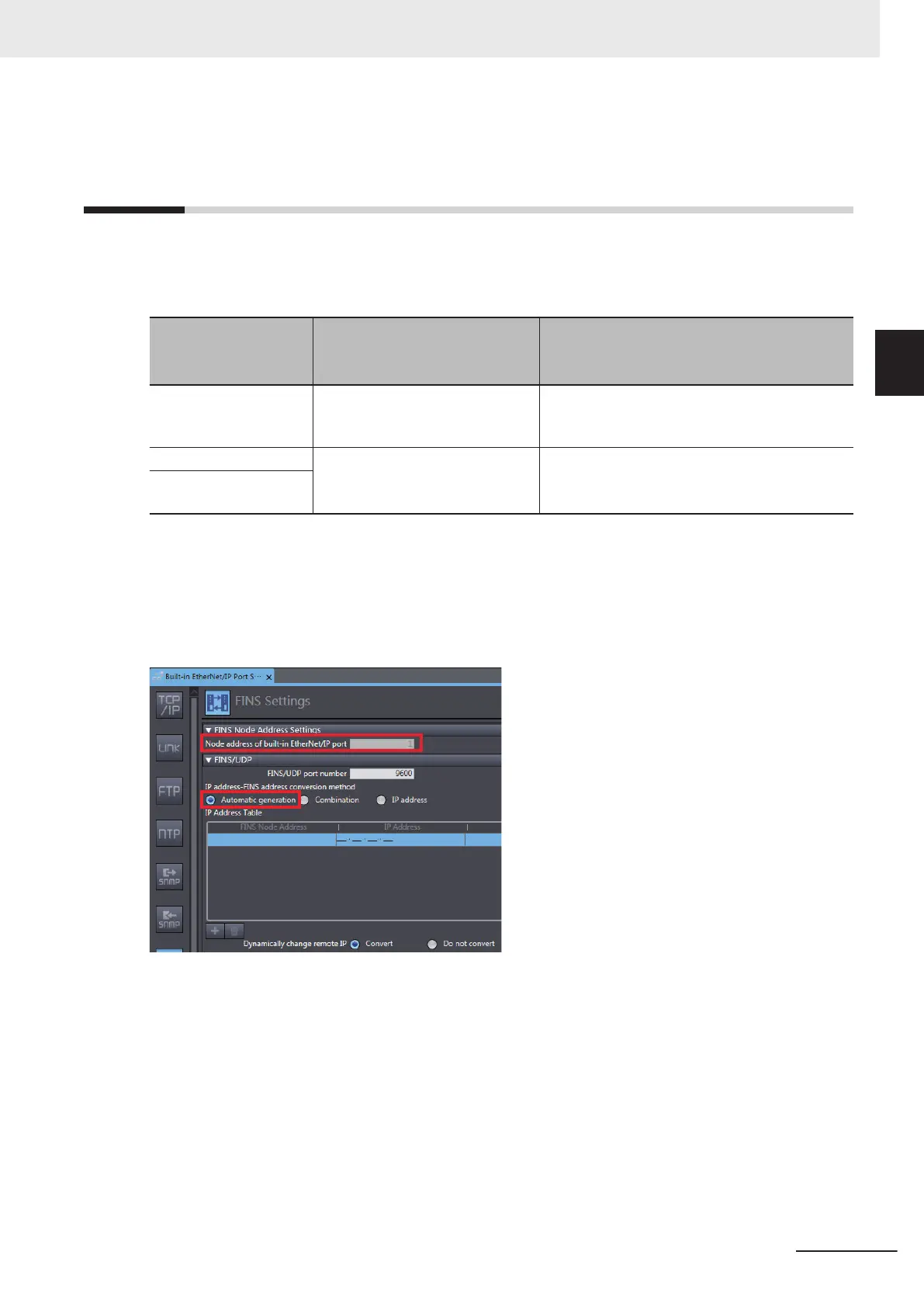

Setting of FINS Node Address of
Built-in EtherNet/IP Port
This FINS node address is necessary to identify a node in the FINS communication.
The following describes how to determine the FINS node address of the built-in EtherNet/IP port and
how to set the FINS node address from the Sysmac Studio.
IP address ⇔ FINS
address conversion
method
*1
FINS node address determina-
tion method
Setting method from Sysmac Studio
Automatic generation
method
The least significant digits of the
IP address becomes the FINS
node address automatically.
Controller Setup -
Built-in EtherNet/IP Port
Settings - TCP/IP Settings - IP Address
Settings
Combined method Set the FINS node address itself. Controller Setup - Built-in EtherNet/IP Port
Settings -
FINS Settings - FINS Node
Address Settings
IP address table meth-
od
*1. This may vary depending on the setting of IP address ⇔ FINS address conversion method for FINS/
UDP. T
o make the setting, select Configurations and Setup - Controller Setup - Built-in EtherNet/IP Port
Settings - FINS Settings - FINS/UDP - IP Address ⇔ FINS Address Conversion Method from the Multi-
view Explorer of the Sysmac Studio.
When the automatic generation method is selected, the least significant digit of the IP address is set
as the FINS node address.
When the combination or IP address method is selected, the value specified for the FINS node ad-
dress settings is used as the FINS node address.
2 Server Function
2-5
NX-series CPU Unit FINS Function User's Manual (W596)
2-3 Setting of FINS Node Address of Built-in
EtherNet/IP Port
