*1. Used as a power supply for IO-Link devices or non-IO-Link input devices. Supplies power from the Unit/input power supply of the IO-Link
Master Unit to external devices through I/O connectors.
*2. Detects a short-circuit that occurred between pin 1 and pin 3 to protect the IO-Link Master Unit.
*3. Detects a short-circuit that occurred between pin 2 and pin 3 and between pin 4 and pin 3 to protect the IO-Link Master Unit.
Digital outputs for pin 4 or
digital outputs for pin 2
(in SIO (DO) Mode)
Power supply used Output power supply
Internal I/O common PNP
Output type Open-drain
Rated voltage 24 VDC (20.4 to 26.4 VDC)
Maximum load current 2 A/pin
Leakage current 0.1 mA max.
Residual voltage 1.5 V max.
ON/OFF response time 1.0 ms max.
Short-circuit protection Provided *3
Short-circuit detection Provided *3
Current consumption
Unit/input power supply 50 mA
Output power supply 100 mA
Weight 440 g
Dimensions
240 × 24.2 × 62 mm (W × H × D)
(The height is 38 mm when the connectors are included.)
Isolation method No isolation

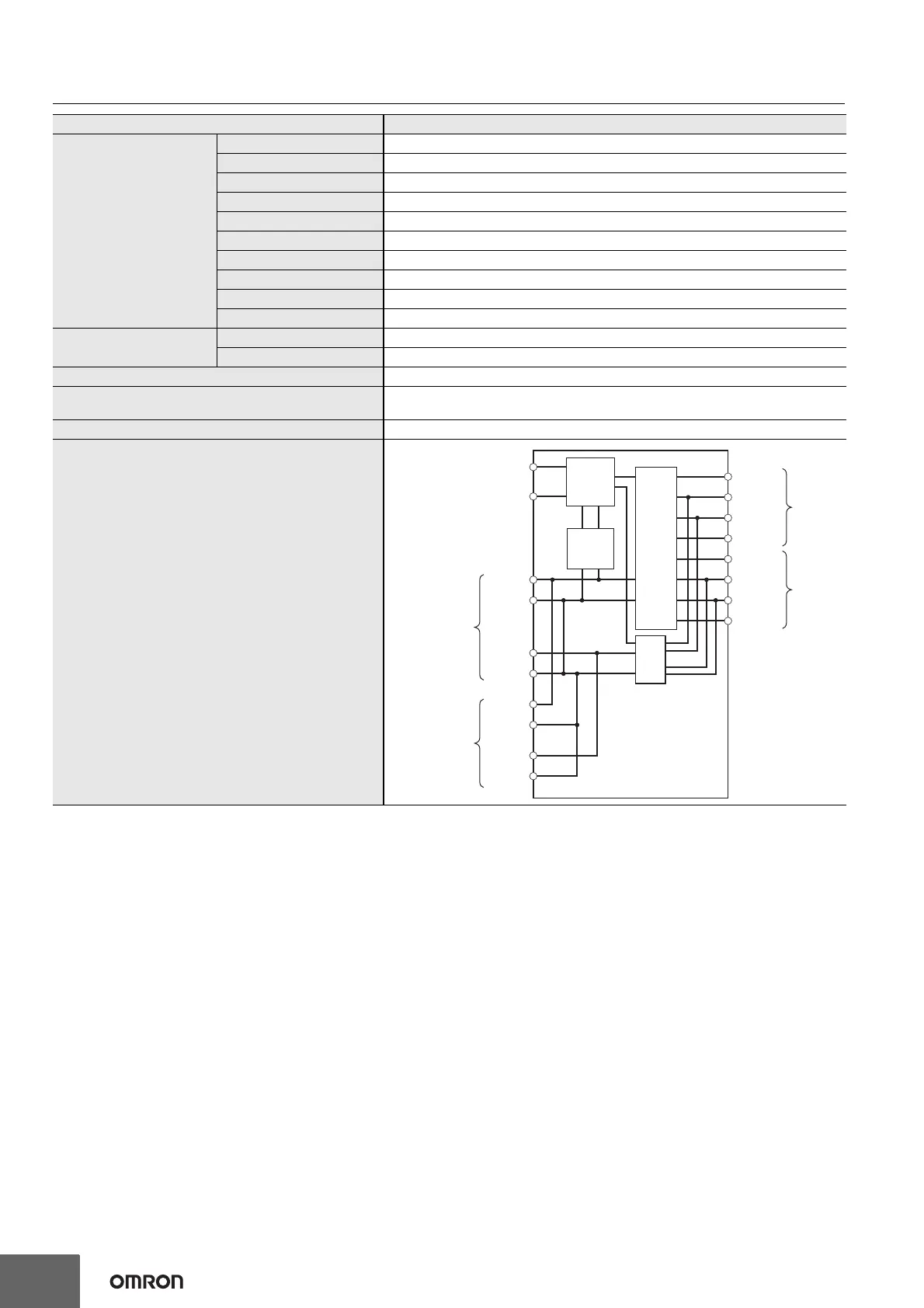

Circuit layout
Item Specification
L+(Pin1)
U/IN P+
U/IN P-
U/IN P+
U/IN P-
OUT P+
OUT P-
OUT P+
OUT P-
C/Q(Pin4)
I/Q(Pin2)
L-(Pin3)
L+(Pin1)
C/Q(Pin4)
I/Q(Pin2)
L-(Pin3)
Internal
circuits
Non-isolated
power supply
circuits
IO-Link
circuits/
input
circuits
Output
circuits
I/O
connector
P1
I/O
connector
P8
EtherNet/IP communications
connector 1
(ETH1)
EtherNet/IP communications
connector 2
(ETH2)
Power supply
connector (input)
(PWR IN)
Power supply
connector (output)
(PWR OUT)
・・・
・・・
・・・
