Omron NXR-ILM08C-EIT User Manual

NXR-ILM08C-EIT
12

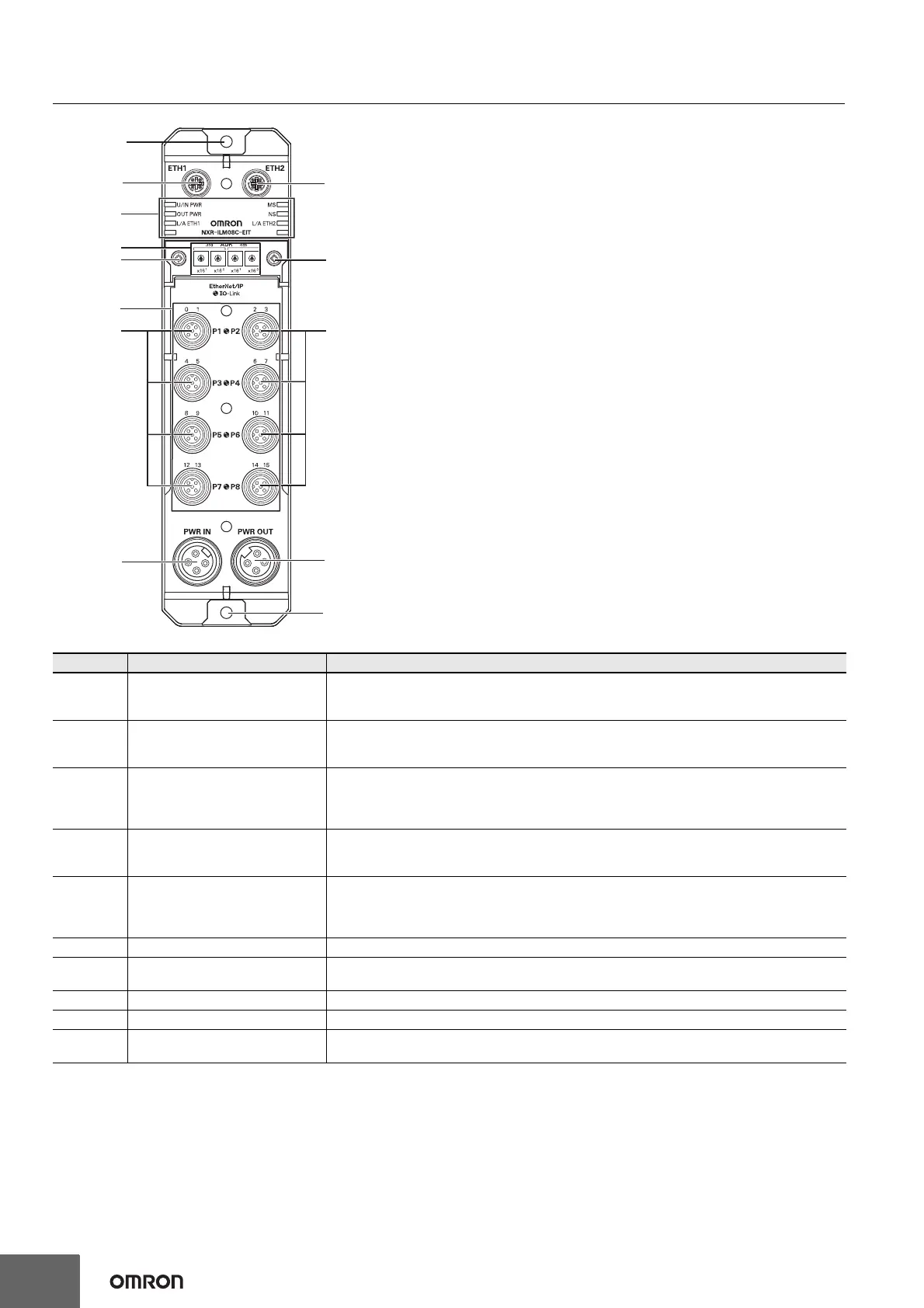

External Interface
Letter Name Function
(A)
EtherNet/IP communications
connector 1
The connector for EtherNet/IP port 1.
• M12 connector (D-coding, female)
Connect a communications cable.
(B)
EtherNet/IP communications
connector 2
The connector for EtherNet/IP port 2.
• M12 connector (D-coding, female)
Connect a communications cable.
(C) I/O connectors
The connectors for connecting IO-Link devices or non-IO-Link connected external devices.
They are called "ports."
• M12 connectors (A-coding, female)
Connect I/O cables.
(D) Power supply connector (input)
The connector for supplying Unit/input power and output power.
• 7/8 inch connector (male)
Connect the power supply cable to an external power supply.
(E) Power supply connector (output)
The connector for supplying Unit/input power and output power from the local node to another
node. Use this connector when the power supply method is power supply with through-wiring.
• 7/8 inch connector (female)
Connect the power supply cable to an additional IO-Link Master Unit.
(F) I/O indicators The indicators that show the I/O status of pin 4/pin 1 and pin 2 for each port.
(G) Cover mounting holes
The screw holes for mounting the rotary switch cover. They are provided in two locations.
The above figure shows the holes when the cover is mounted with screws.
(H) Rotary switches The switches for setting the IP address.
(I) Status indicators The indicators that show the current operating status of the Unit.
(J) Unit mounting holes
The holes for mounting the Unit. They are provided in two locations. Mount the Unit with M5
screws.
(J)
(B)
(A)
(D)
(C)
(E)
(F)
(C)
(H)
(I)
(G)
(G)
(J)
