4-32
4-3 Wiring Conforming to EMC Directives
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
4
System Design

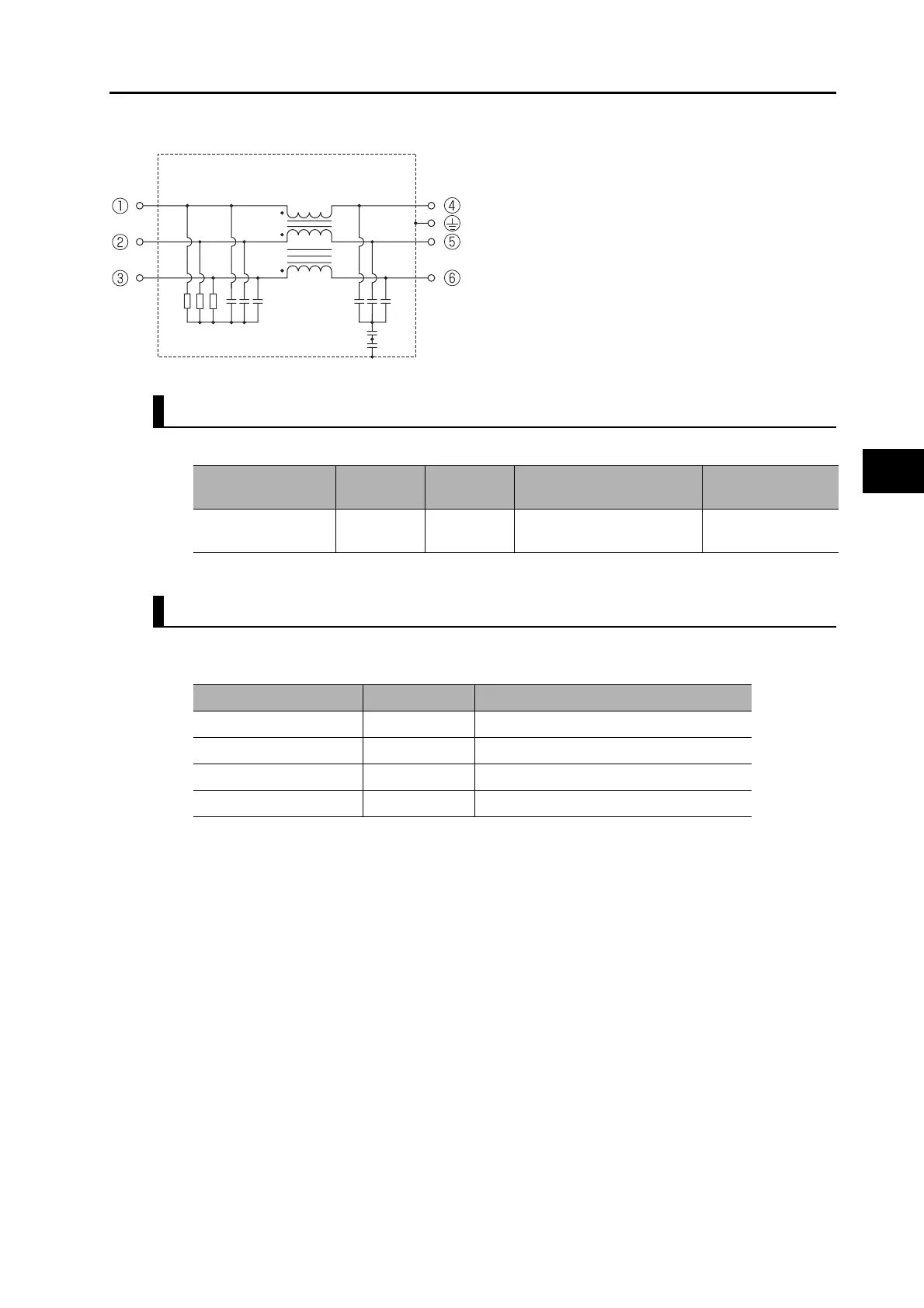

3SUP-HU30-ER-6
Noise Filter for the Brake Power Supply
 Use the following noise filter for the brake power supply.
Note: Noise can also be reduced by 1.5 turns with the ZCAT3035-1330 (TDK) Radio Noise Filter.
Radio Noise Filter and Emission Noise Prevention Clamp Core
Use one of the following filters to prevent switching noise of PWM of the Servo Drive and to
prevent noise emitted from the internal clock circuit.
*1. Generally used for 1.5 kW or higher.
*2. Generally used for 1.5 kW or lower. The maximum number of windings is 3 turns.
*3. Generally used for 50/100 W. The maximum number of windings is 2 turns.
*4. Also used on the Drive output power lines to comply with the EMC Directives. Only a clamp is used.
This clamp can also be used to reduce noise current on a FG line.
Cx1Cx1R
L1
Cy1
OUTIN
Model
Rated
current
Rated
voltage
Leakage current Manufacturer
SUP-EK5-ER-6 5 A 250 V 1.0 mA (at 250 Vrms, 60 Hz)
Okaya Electric
Industries Co., Ltd.
Model Manufacturer Application
3G3AX-ZCL1
*1
OMRON For Drive output and power cable
3G3AX-ZCL2
*2
OMRON For Drive output and power cable
ESD-R-47B
*3
NEC TOKIN For Drive output and power cable
ZCAT3035-1330
*4
TDK For Encoder cable and I/O cable
To Next Page
