2-40

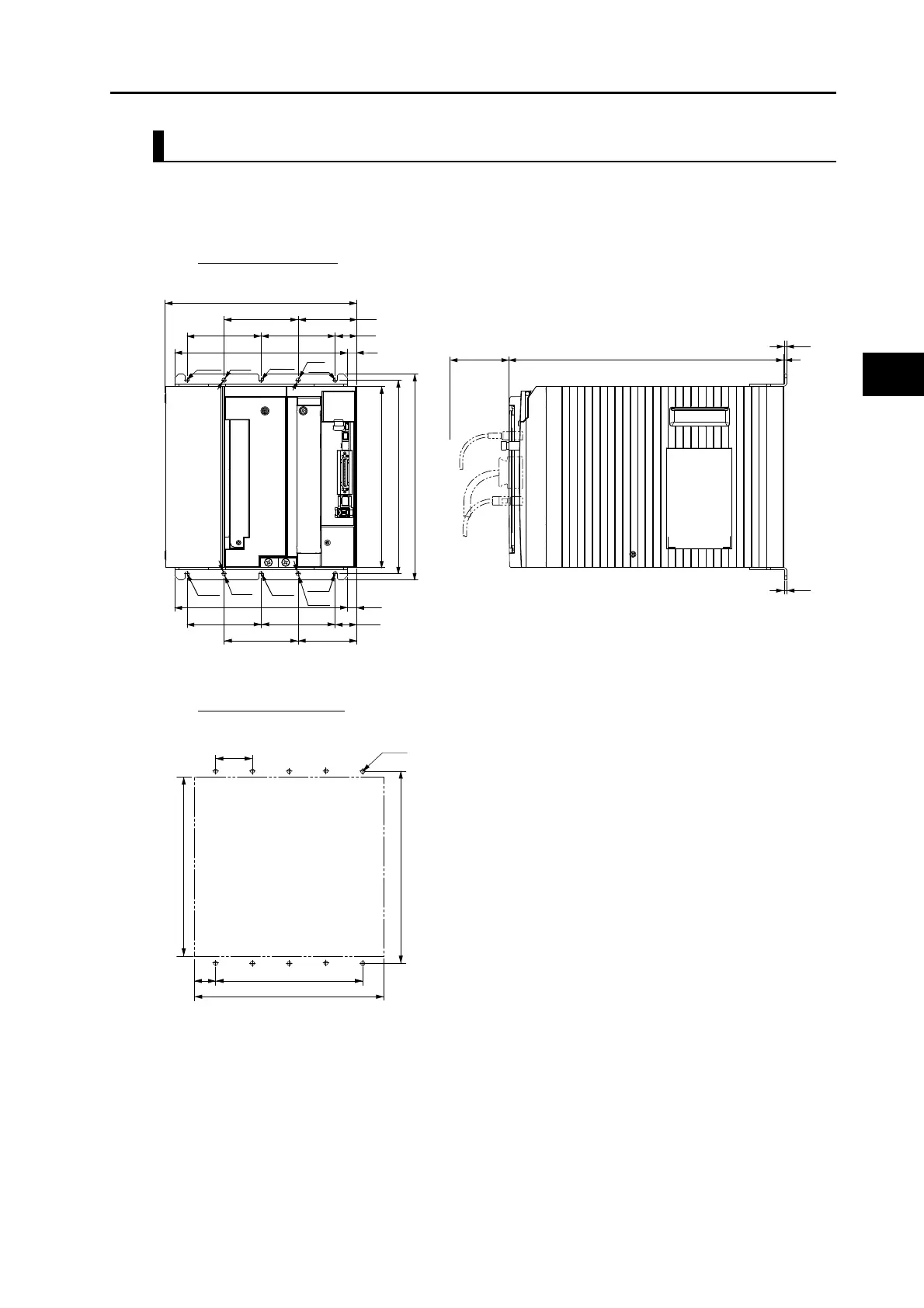

2-4 External and Mounting Dimensions
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
2
Standard Models and External Dimensions
3-phase 400 VAC: R
88D-KT75F (7.5 kW)
Wall Mounting
External dimensions
Mounting dimensions
250
235
220
90
90
90
71
26
210
1
1
210
90
90
90
71
26
11
233
334
3.5
R2.6
R2.6
R2.6
φ
5.2
φ
5.2
φ
5.2
φ
5.2
R2.6
R2.6
R2.6
70
2.5
1
10-M4
235
45
220
27
180
233
84
86
