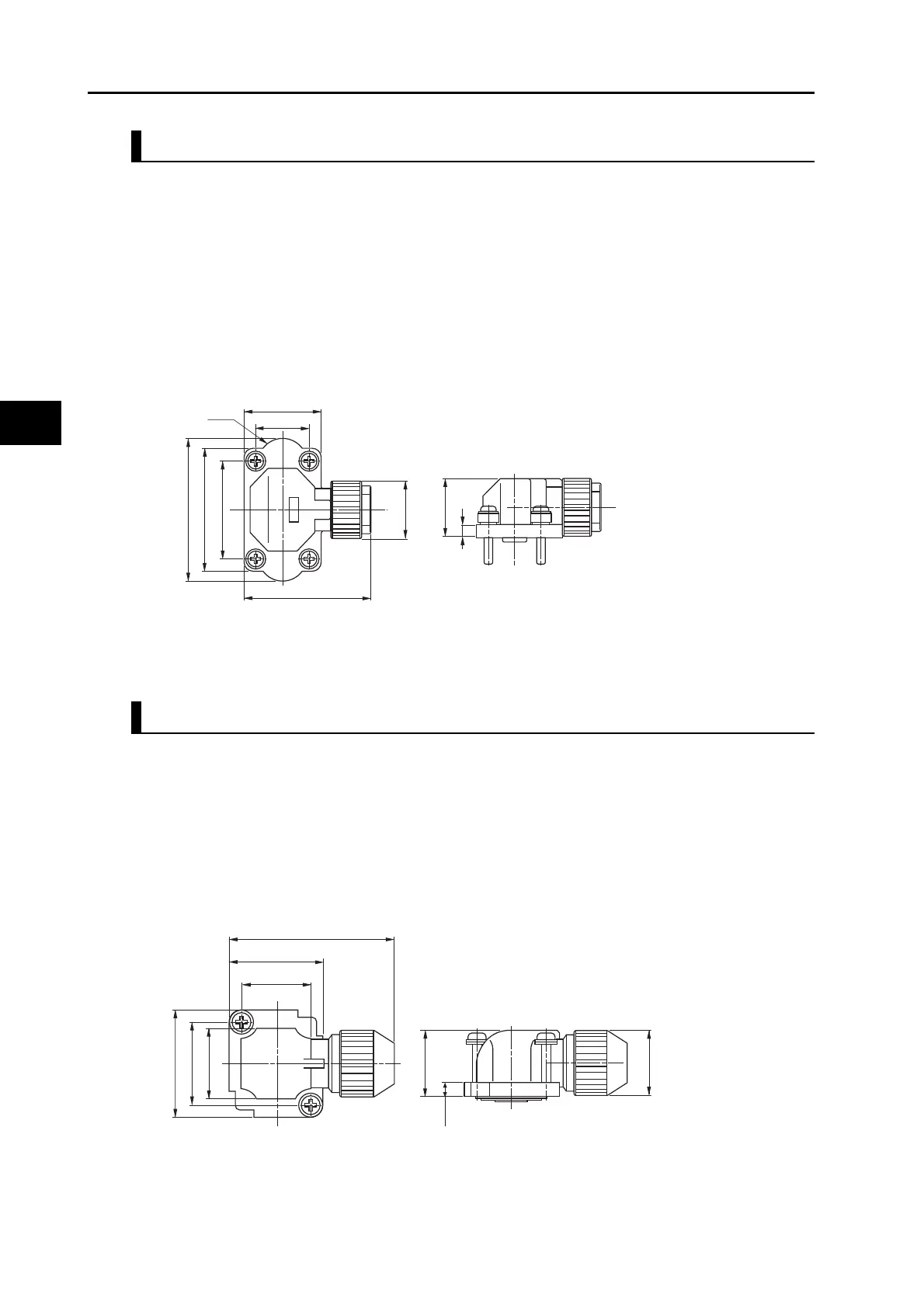

3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications
Power Cable Connector (R88A-CNK11A)
Angle plug model JN8FT04SJ1
(Japan Aviation Electronics)
Socket contact model ST-TMH-S-C1B-3500-(A534G)
(Japan Aviation Electronics)
Brake Cable Connector (R88A-CNK11B)
Angle plug model JN4FT02SJ1-R
(Japan Aviation Electronics)
Socket contact model ST-TMH-S-C1B-3500-(A534G)
(Japan Aviation Electronics)
This connector is used for power cables.
Use it when preparing a power cable by yourself.
For information on wiring method, refer to Motor
Power Cable Specifications (P.3-100).
This connector is pressure welded.
For the tools that are required for production,
contact the manufacturer directly.
The cable direction from the angle plug can
be reversed.
Note If you reverse the direction, you cannot
attach the Connector to Servomotors
of 50 W and 100 W.
Adaptive motors
100-V, 3,000-r/min Servomotors of 50 to 400
W
200-V, 3,000-r/min Servomotors of 50 to 750
W
17.6
28.8
φ13
32
27.6
22
12
R5.5
13.5
3
This connector is used for brake cables.
Use it when preparing a brake cable by yourself.
For information on wiring method, refer to Brake
Cables (European Flexible Cables) (P.3-106).
This connector is pressure welded.
For the tools that are required for production,
contact the manufacturer directly.
The cable direction from the angle plug can
be reversed.
Adaptive motors
100-V, 3,000-r/min Servomotors of 50 to 400
W
200-V, 3,000-r/min Servomotors of 50 to 750
W
29.6
12.3
17
12.5
14.3
19
2.5
11.8
φ11.6
