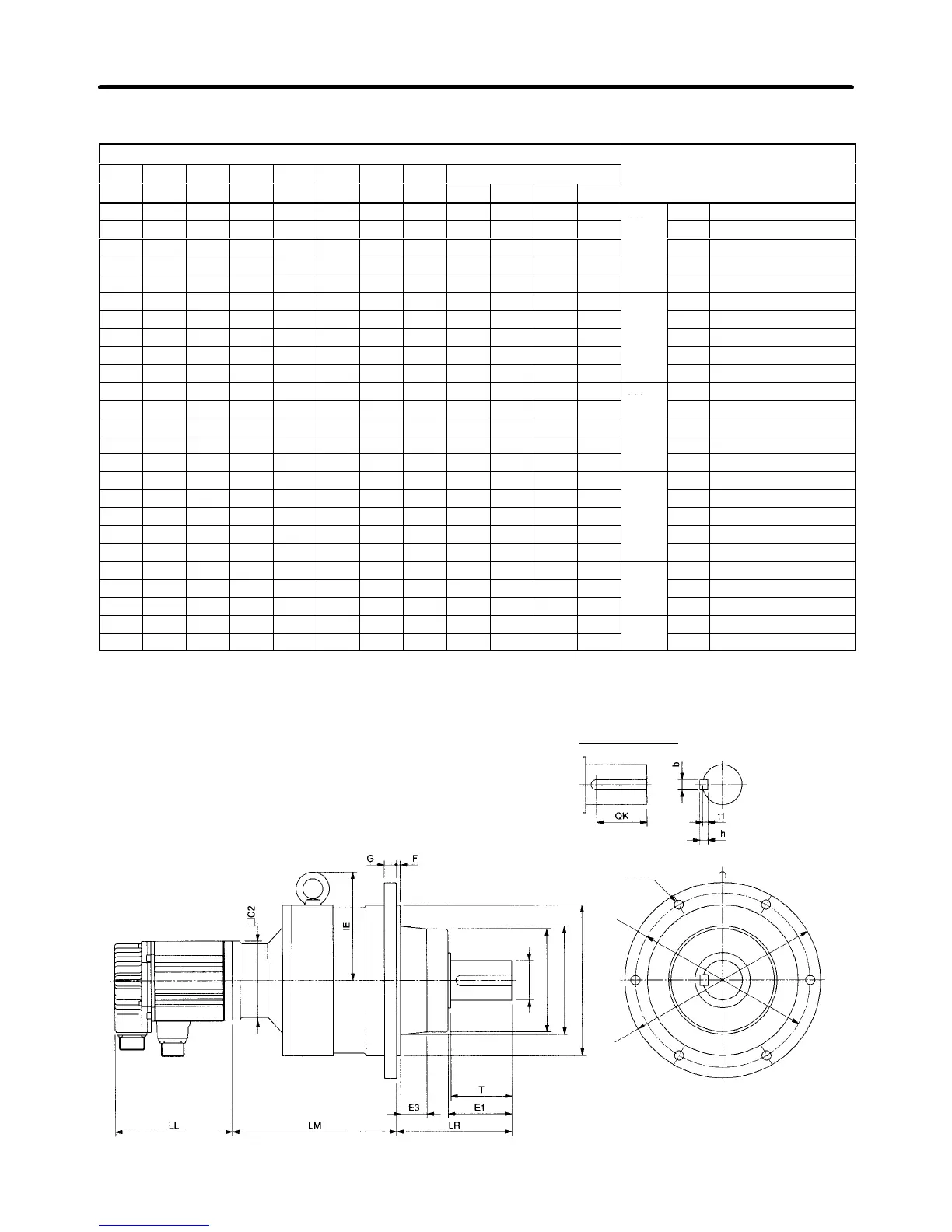

Dimensions (mm)
Model
E1 E3 F G S T Z IE
Key dimensions
QK b h t1
57 20 3 12 35 55 12 – 47 10 8 5
300 W
1/5
R88M-W30010j-jG05BJ
57 20 3 12 35 55 12 – 47 10 8 5
300
1/9
R88M-W30010j-jG09BJ
57 20 3 12 35 55 12 – 47 10 8 5 1/20
R88M-W30010j-jG20BJ
77 33 5 15 50 75 12 137 65 14 9 5.5 1/29
R88M-W30010j-jG29BJ
77 33 5 15 50 75 12 137 65 14 9 5.5 1/45
R88M-W30010j-jG45BJ
57 20 3 12 35 55 12 – 47 10 8 5
600 W
1/5
R88M-W60010j-jG05BJ
57 20 3 12 35 55 12 – 47 10 8 5
600
1/9
R88M-W60010j-jG09BJ
77 33 5 15 50 75 12 137 65 14 9 5.5 1/20
R88M-W60010j-jG20BJ
77 33 5 15 50 75 12 137 65 14 9 5.5 1/29
R88M-W60010j-jG29BJ
92 38 5 18 60 90 14 171 78 18 11 7 1/45
R88M-W60010j-jG45BJ
57 20 3 12 35 55 12 – 47 10 8 5
900 W
1/5
R88M-W90010j-jG05BJ
77 33 5 15 50 75 12 137 65 14 9 5.5
900
1/9
R88M-W90010j-jG09BJ
77 33 5 15 50 75 12 137 65 14 9 5.5 1/20
R88M-W90010j-jG20BJ
92 38 5 18 60 90 14 171 78 18 11 7 1/29
R88M-W90010j-jG29BJ
92 38 5 18 60 90 14 171 78 18 11 7 1/45
R88M-W90010j-jG45BJ
77 33 5 15 50 75 12 137 65 14 9 5.5
1.2 kW
1/5
R88M-W1K210j-jG05BJ
77 33 5 15 50 75 12 137 65 14 9 5.5 1/9
R88M-W1K210j-jG09BJ
92 38 5 18 60 90 14 171 78 18 11 7 1/20
R88M-W1K210j-jG20BJ
92 38 5 18 60 90 14 171 78 18 11 7 1/29
R88M-W1K210j-jG29BJ
92 38 5 18 60 90 14 171 78 18 11 7 1/45
R88M-W1K210j-jG45BJ
77 33 5 15 50 75 12 137 65 14 9 5.5
2 kW
1/5
R88M-W2K010j-jG05BJ
77 33 5 15 50 75 12 137 65 14 9 5.5 1/9
R88M-W2K010j-jG09BJ
92 38 5 18 60 90 14 171 78 18 11 7 1/20
R88M-W2K010j-jG20BJ
92 38 5 18 60 90 14 171 78 18 11 7
3 kW
1/5
R88M-W3K010j-jG05BJ
92 38 5 18 60 90 14 171 78 18 11 7
3
1/9
R88M-W3K010j-jG11BJ
Diagram 2
Key dimensions
Six, Z dia.
D1 dia.
D2 dia.
D3h7 dia.
D4 dia.
D5 dia.
Sh6 dia.
