No. 13S054-10
STC-HD203DV / STC-HD203DV-CS / STC-HD203SDI / STC-HD203SDI-CS
Product Specifications and Users Guide
21/78

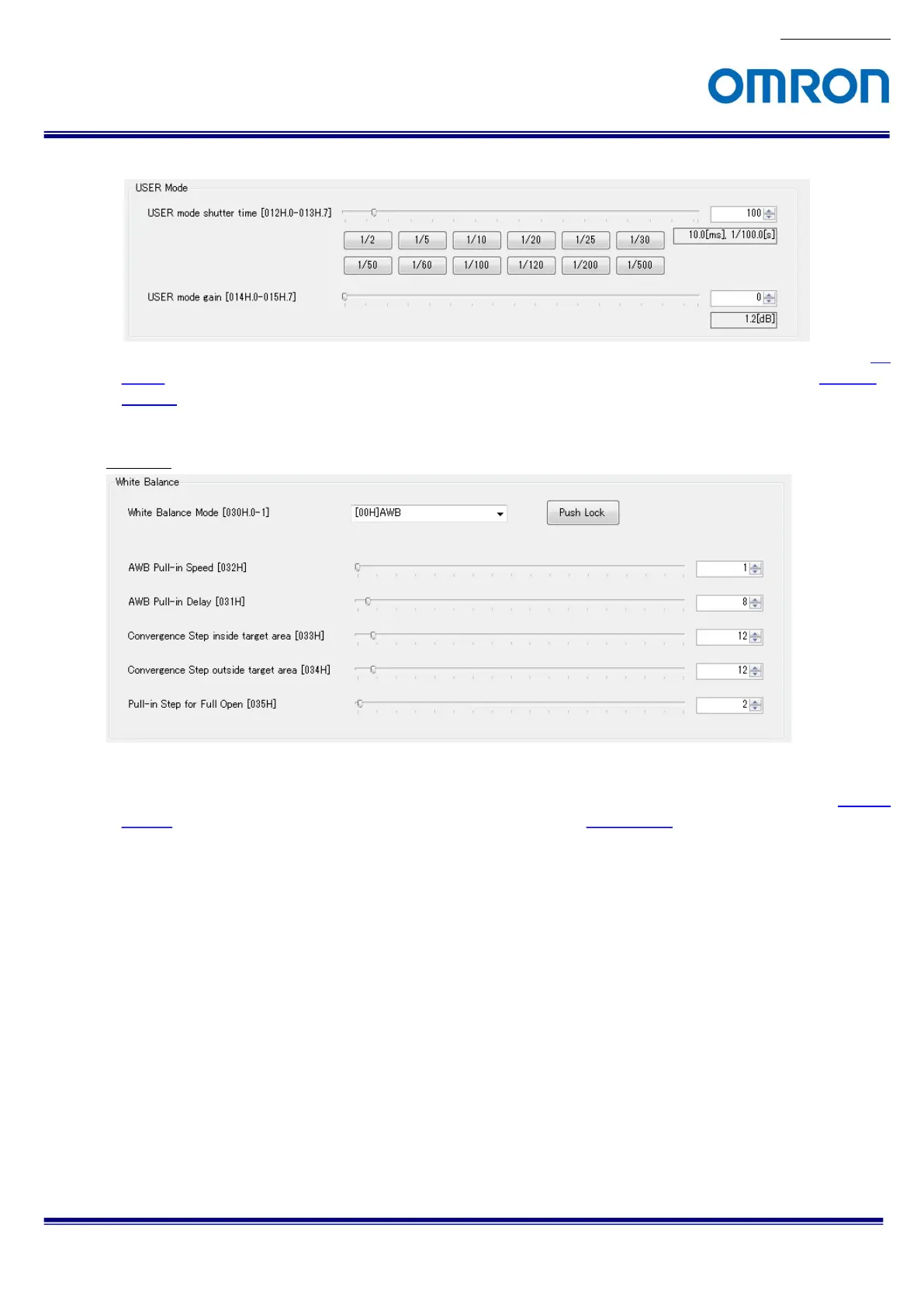

USER Mode
When User likes to use Fixed Gain or Fixed Shutter, this mode can be used when USER mode is selected on AE
mode. When USER Mode is selected, these registers are available. As for the detail, please refer to another
chapter.
DSP: WB
White Balance
AWB, Full-Open, AWB Hold, USER Mode can be selectable. As for the detail, please refer to another
chapter.When User likes to use Fixed White Balance, please select USER Mode.
AWB Pull-in Speed
Pull-in speed of AWB mode is set in the number of frames specified by this setting. This setting might be
available when Auto or Full Open is selected on White Balance Mode. Unit: Frame number
AWB Pull-in Delay
When a status outside the dead band has been detected in the AWB mode, pull-in is started after achieving
consistency in the number of frames specified by this setting. Unit: Frame number
Convergence Step inside target area
The AWB pull-in steps inside target area can be indicated. When set step shortly, the convergence speed of
white balance is faster.
Convergence Step outside target area
The AWB pull-in steps outside target area can be indicated. When set step shortly, the convergence speed of
white balance is faster.
