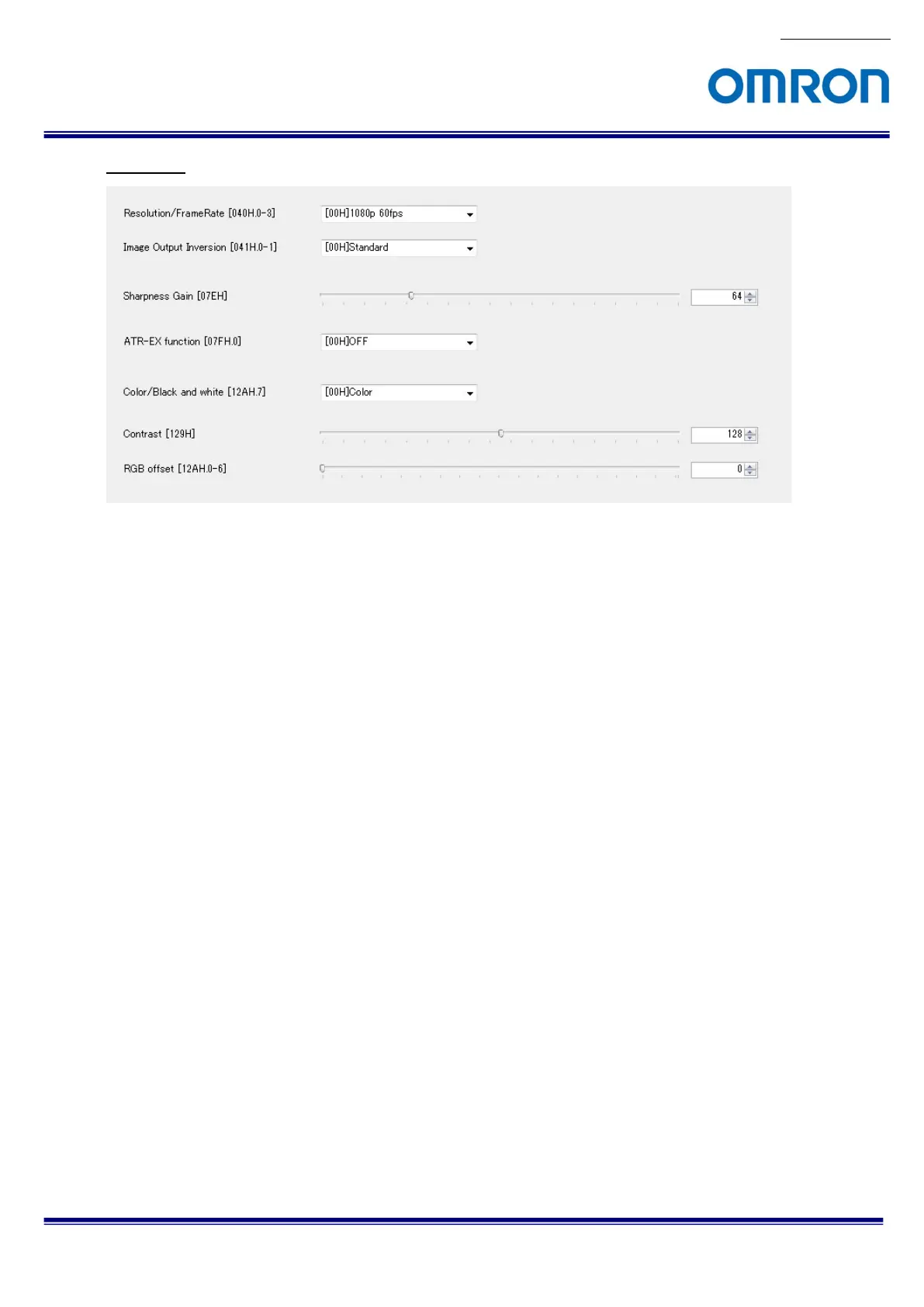

DSP: Other
Resolution/FrameRate
Select the output video format.
Image Output Inversion
Select the H,V Inversion image.
Sharpness Gain
Set the Sharpness value.
ATR-EX function
when both low-luminance areas and high-luminance areas exist on one screen, AE controls the exposure in
such a way that the exposure is appropriate for the high-luminance areas, loss of dark detail will occur;
conversely, overexposure will occur if AE controls the exposure so that it is appropriate for the low-luminance
areas. This happens because the luminance of images tends toward either the high-luminance side or
low-luminance side.
Both overexposure and loss of dark detail can be avoided and images with the appropriate contrast can be
achieved by compressing the low- and high-luminance areas for the image components in one field toward
medium luminance and compensating the high-visibility medium-luminance areas toward the appropriate gray
scale. The function used to achieve this is called ATR-EX (Augmenting Tone Reproduction) or WDR (Wide
Dynamic Range).
Color/Black and white
Select the Color or Monochrome image.
Contrast
Set the Contrast value.
RGB offset
Set the offset on Video image.
