Omron SYSMAC C200H-AD003 User Manual

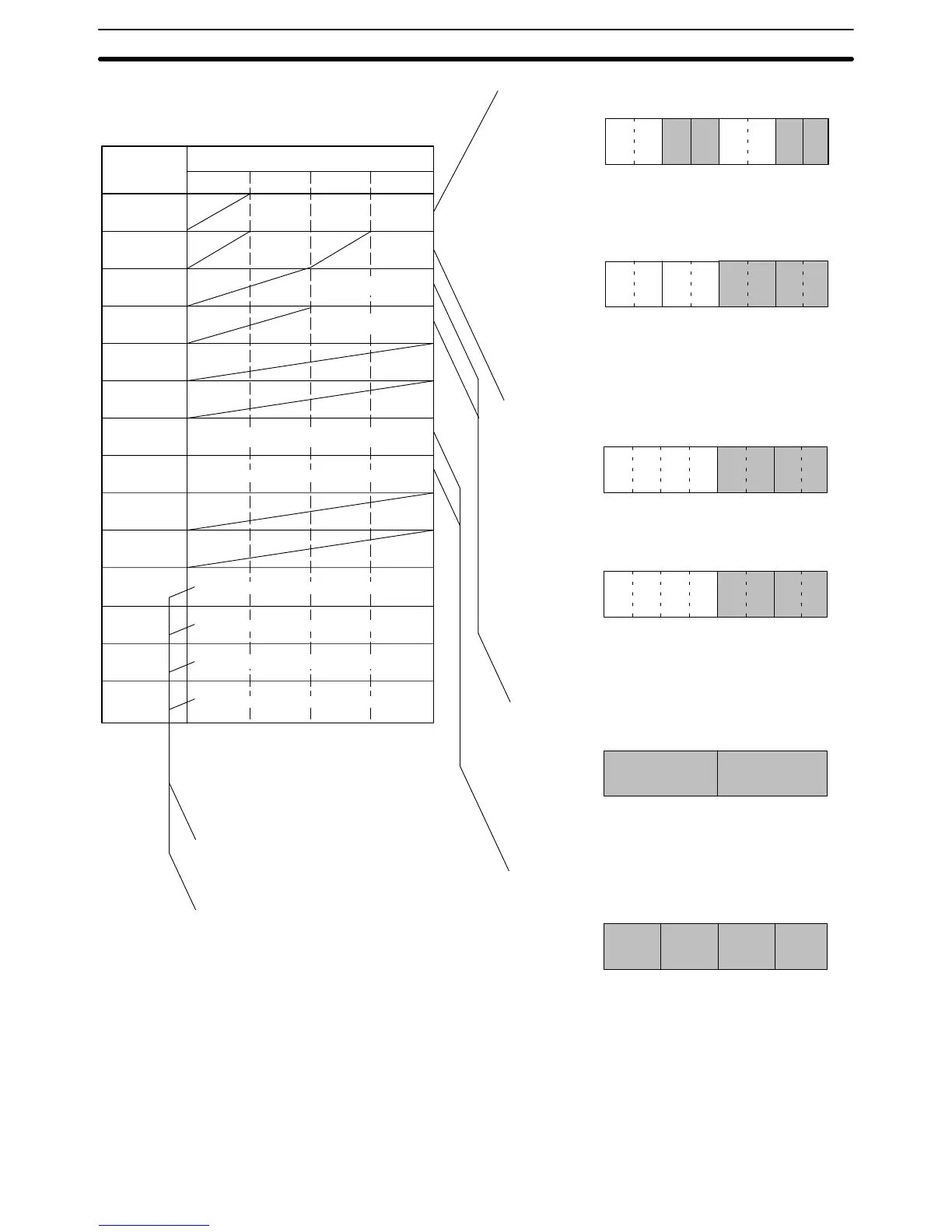

Appendix DData Memory Coding Sheet
127
DM word
Setting contents
15 8 7 0
m
m+1
m+2
m+3
m+4
m+5
m+6
m+7
m+8
m+9
m+10
m+11
m+12
m+13
Loop use
designation
Input use
designation
Output use
designation
Input signal
range setting
Output signal
range setting
Output 1: Output status
when conversion stopped
Output 2: Output status
when conversion stopped
Input 1: Mean value processing setting
Input 2: Mean value processing setting
Loop 1 (input 1 → output 1), A constant
Loop 1 (input 1 → output 1), B constant
Loop 2 (input 2 → output 2), A constant
Loop 2 (input 2 → output 2), B constant
07 06 05 04 03 02 01 00
Input 2
Input 1
Output 2 Output 1
15 14 13 12 11 10 09 08
Loop 2 Loop 1
Use Designation
0: Do not use.
1: Use
00: Do not use.
01: Positive gradient conversion
10: Negative gradient conversion
11: Do not use.
07 06 05 04 03 02 01 00
15 14 13 12 11 10 09 08
Input 2 Input 1
Signal Range Setting
00: -10 to 10 V
01: 0 to 10 V
10: 1 to 5 V / 4 to 20 mA
11: Same as 10 above
Output 2 Output 1
B Constant
16-bit binary data
A Constant
0 to 9999 BCD (0.00 to 99.99; unit: 0.01)
07 04 03 00
16
3
16
2
00: CLR (0 output)
01: HOLD (Hold prior output value.)
02: MAX (Output maximum value of range.)
Output Status When Conversion Stopped
15 1211 0807 0403 00
16
3
16
2
16
1
16
0
Mean Value Processing Setting
0000: No mean value processing
0001: Use mean value processing with 2 buffers.
0002: Use mean value processing with 4 buffers.
0003: Use mean value processing with 8 buffers.
0004: Use mean value processing with 16 buffers.
