3-2SectionNomenclature and Functions
40
Range: –10 to 10 V
0000
F830
F768
07D0
0898
0 V
–10 V
–11 V
+11 V
+10V
Resolution: 4,000
Set value (16-bit binary data)
Analog output signal

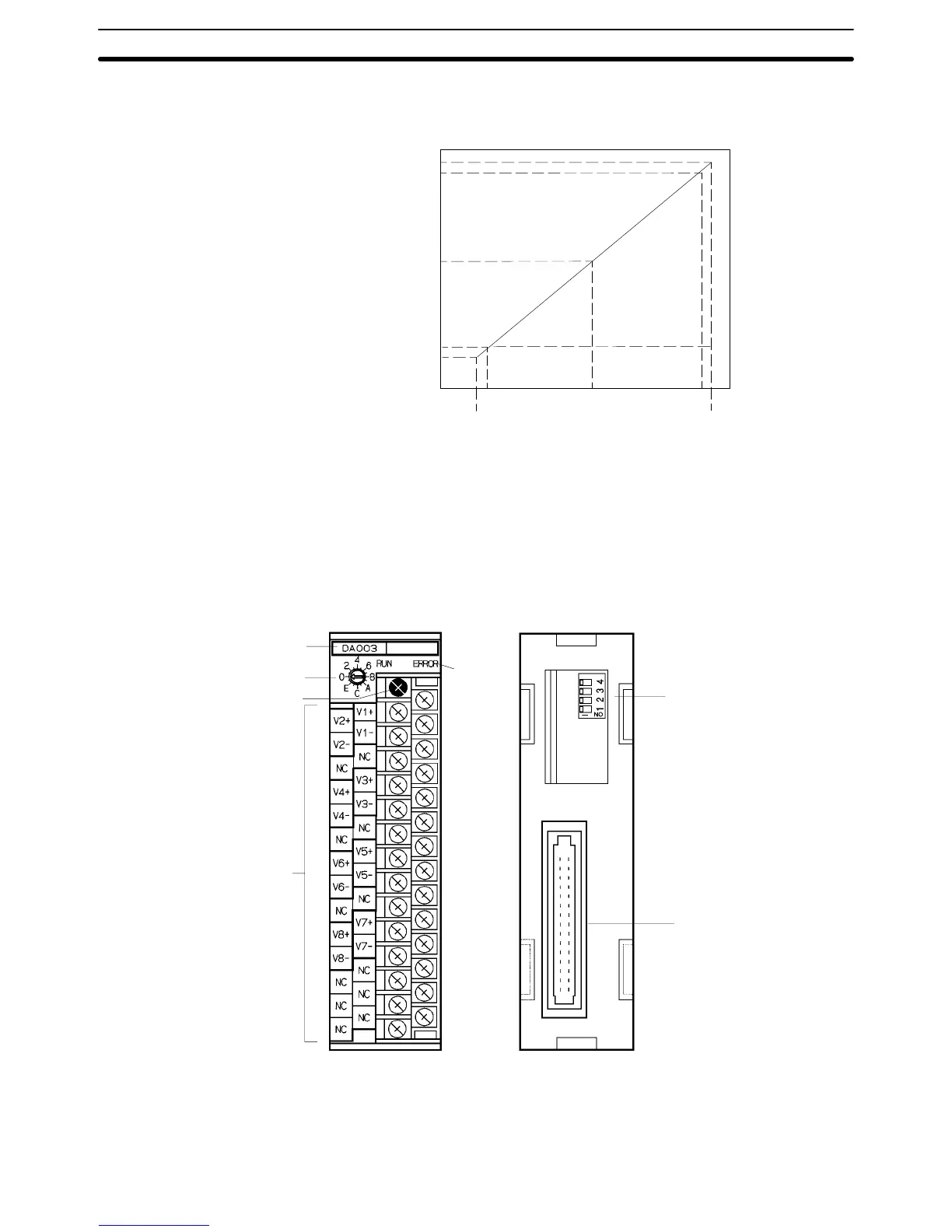

3-2 Nomenclature and Functions
The model shown here is the C200H-DA003
Model label
Unit number setting switch
Terminal block mounting
screw (black M3)
External output terminal
block (M3)
Indicators
Operation mode switch
Backplane connector
Front Back
The terminal block is attached by a connector. It can be removed by loosening
the black mounting screw. When removing the terminal block after wiring, re-
move the wire connected to the top terminal of the right column.
