Omron SYSMAC C28K Installation Guide

33

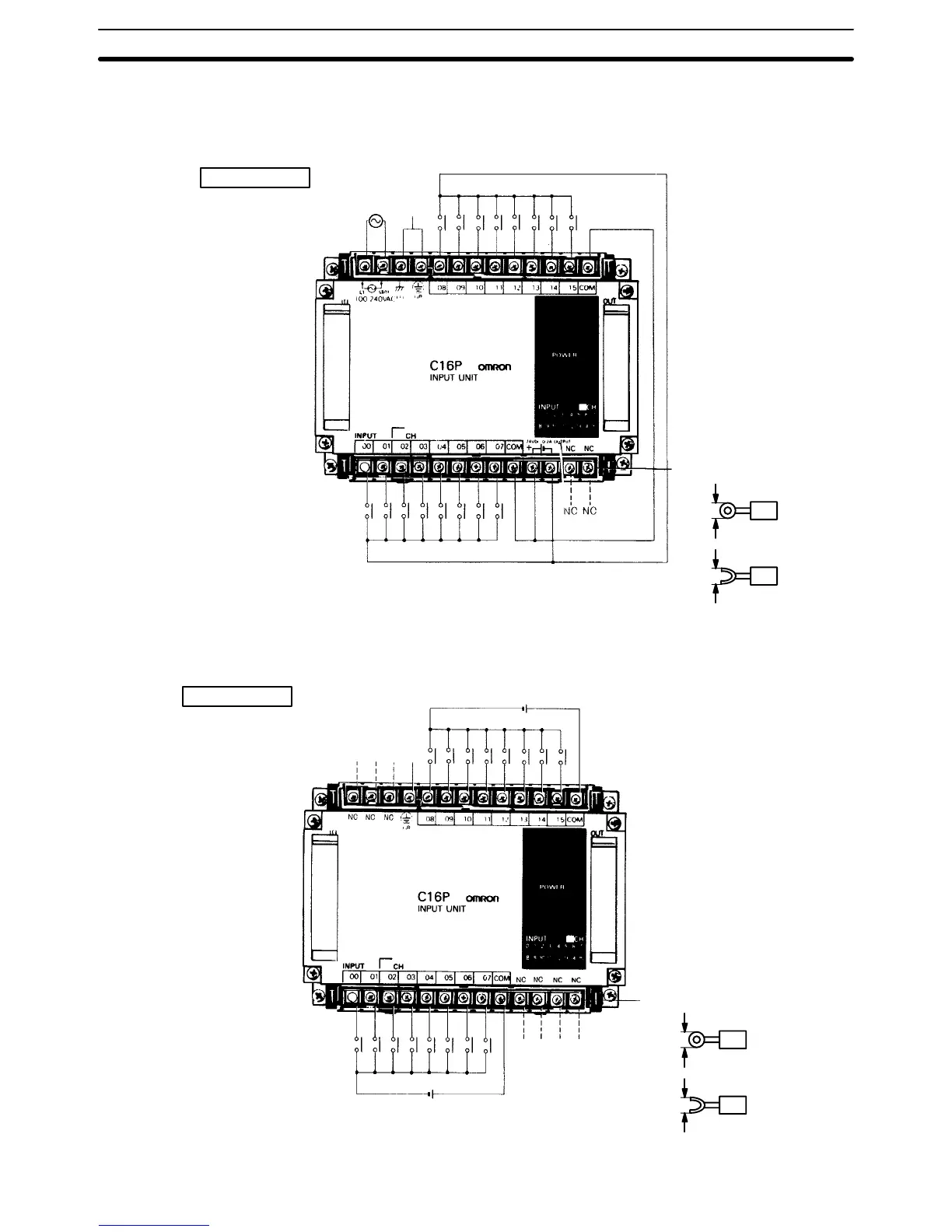

I/O Unit C16P–ID–A The inputs can use the Unit’s 24–VDC power supply output. If the maximum
output current of 0.2 A is not sufficient, however, a separate DC power supply
must be used.
Inputs (24 VDC)
Power sup-
ply (100 to
240 VAC)
Ground
M3.5 screws
7.5 max.
7.5 max.
Input Unit C16P–ID A separate power supply must be used for the DC inputs.
Inputs (24 VDC)
Ground
24 VDC
24 VDC
M3.5 screws
7.5 max.
7.5 max.
NCNC NC
NC NCNC NC
I/O Wiring Section 2–6
