2-3 Dimensions and Installation
This section gives dimensions and other information necessary for mounting
the CPUs, Expansion I/O Units, Analog Timer Units, and I/O Link Units. All
measurements are in mm.

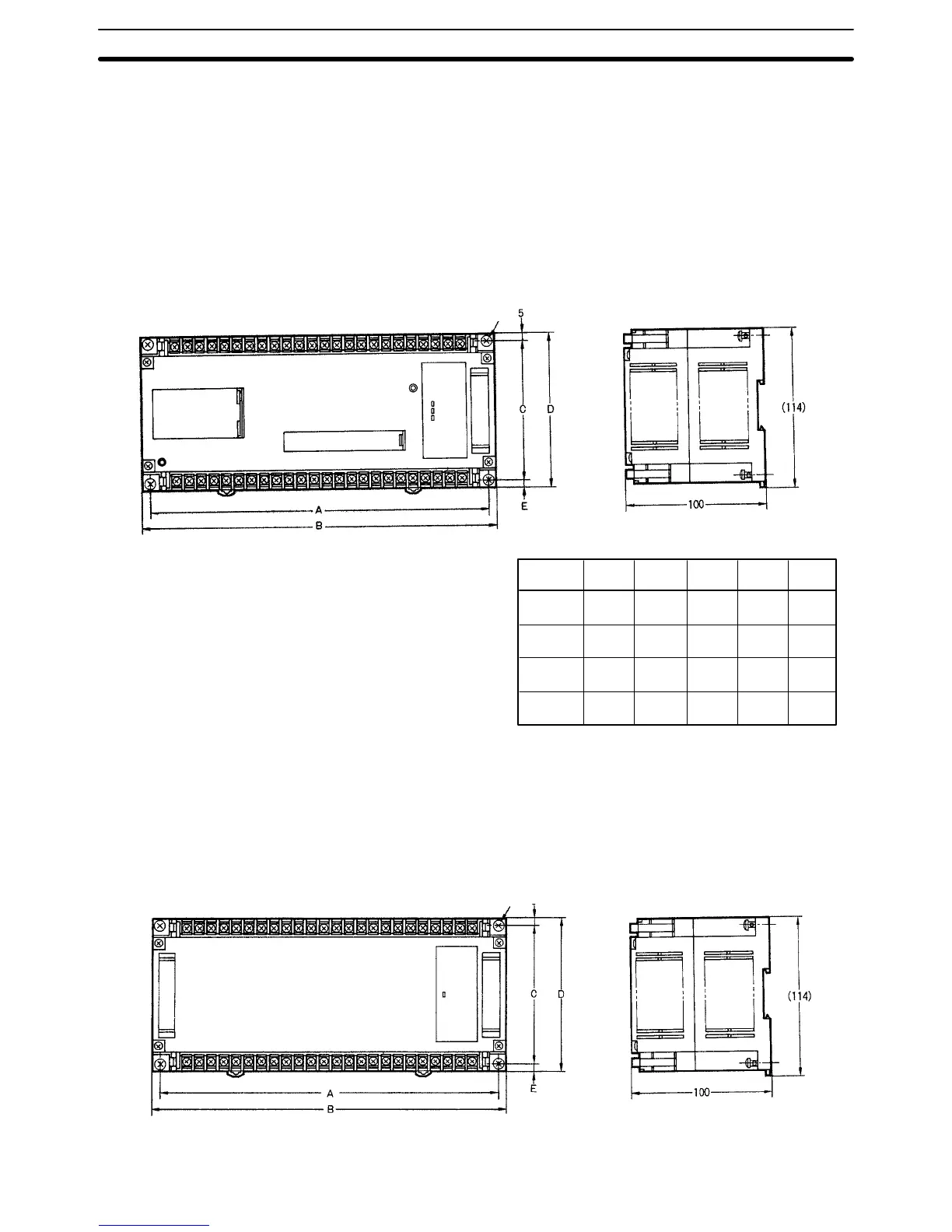

CPUs The C20P is shown below. Dimensions for all Units are given in the table.
A
240
240
290
340
Model
C20P
C28P
C40P
C60P
B
250
250
300
350
C
100
100
100
120
Four M4 screws
D
110
110
110
140
E
5
5
5
15
Expansion I/O Units The C20P is shown below. Dimensions for all Units are given in the table.
Four M4 screws
