Omron SYSMAC C40P User Manual

25

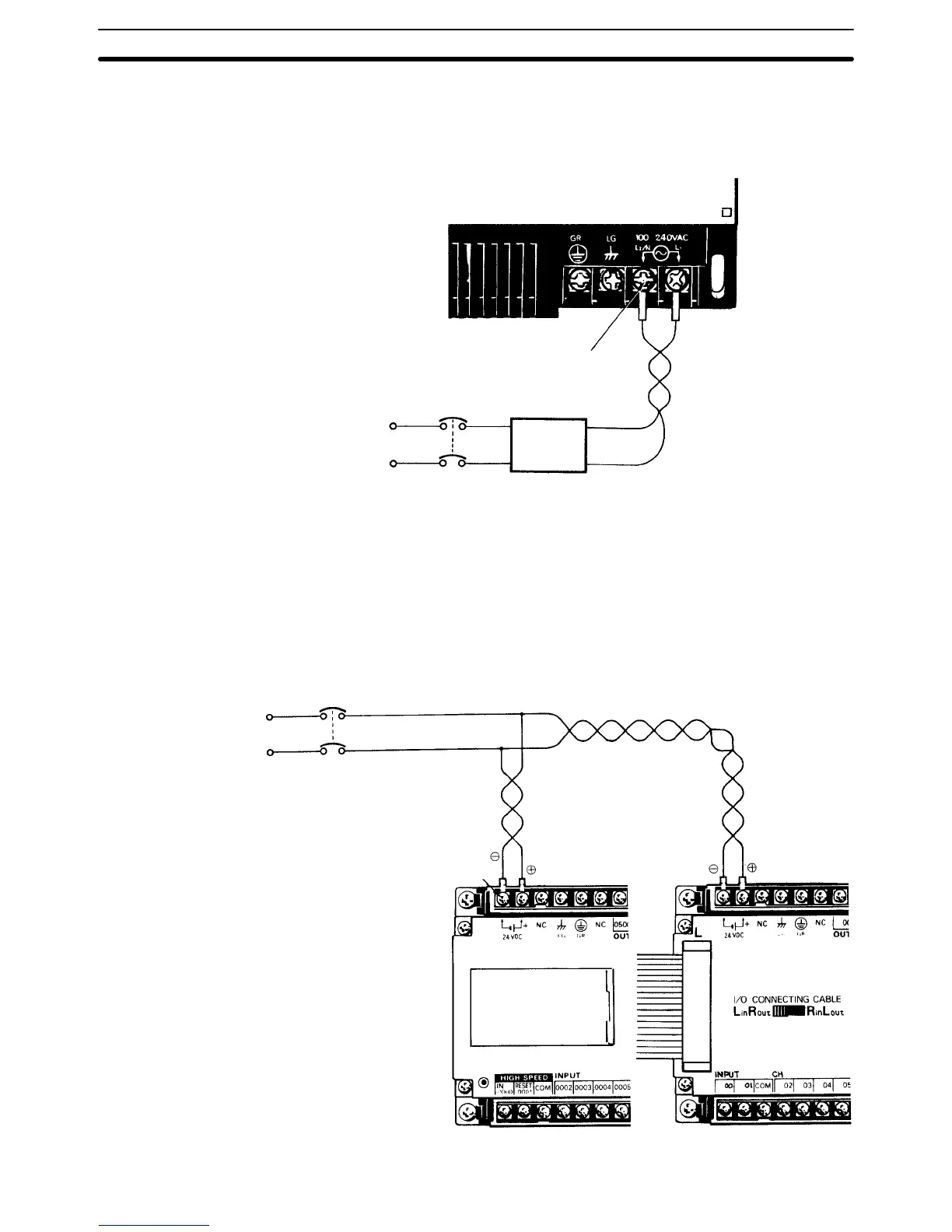

Connect an I/O Link Unit as shown in the following diagram, using M4 termi-
nal screws.
M4 screws
100 to 240 VAC
Insulating
transformer
1:1
Breaker
The following diagram illustrates the proper wiring for CPUs and Expansion
I/O Units with the suffix “-D.” These models use a power supply of 24 VDC
with an operating voltage range of 20.6 to 26.4 VDC. Be careful to connect
the positive and negative terminals correctly. When power is turned ON, the
incoming current will be approximately 30 A.
Breaker
M3.5 screws
Wiring CPUs and Expansion I/O Units Section 2-5

Omron SYSMAC C40P Specifications

General

Model	C40P
Type	Programmable Logic Controller (PLC)
Manufacturer	Omron
Series	SYSMAC
Number of Inputs	24
Number of Outputs	16
Operating Temperature	0 to 55 °C
Humidity	10 to 90% RH (non-condensing)
Input Voltage	100-240V AC
Communication Ports	RS-232C
Programming Language	Ladder Diagram
Instruction Set	Basic and advanced instructions
Timer/Counter	Yes
Storage Temperature	-20 to 70 °C
I/O Capacity	40 points (24 inputs, 16 outputs)
