The inputs can use the Unit’s 24–VDC power supply output. If the maximum
output current of 0.3 A is not sufficient, however, a separate DC power supply
must be used.

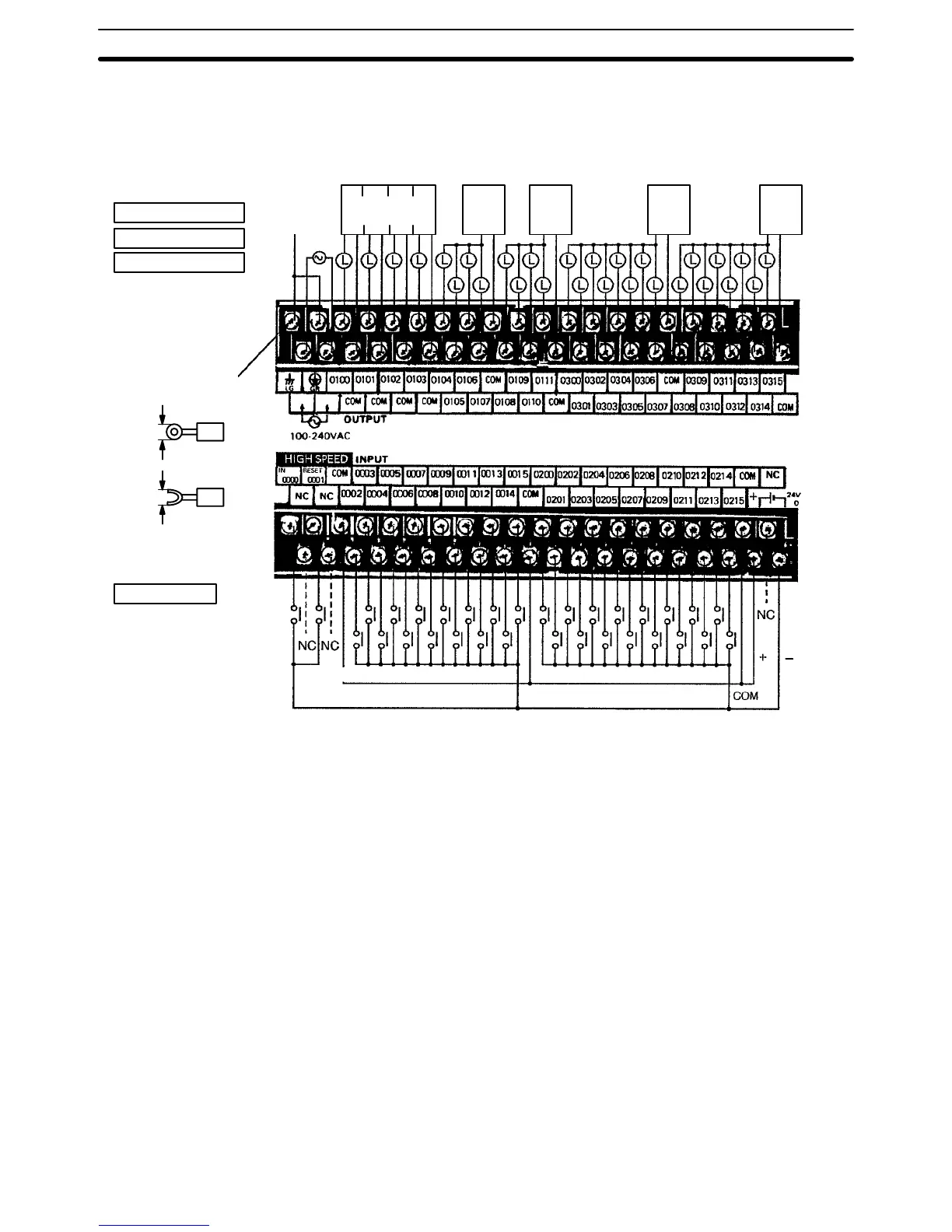

Relay contact outputs
Transistor outputs
Triac outputs
Power
supply
(100 to
240
VAC)
Ground
Upper terminal
block
Lower terminal
block
Inputs (24 VDC)
High–
speed
counter
input
Hardware reset input
24_VDC
output
(0.3 A
max.)
M3.5 screws
7.5 max.
7.5 max.
Load
power
supply
Load
power
supply
Load
power
supply
Load
power
supply
Load power
supply
CPU C60K (CD_–A)
I/O Wiring Section 2–6
