Omron SYSMAC C60K

27

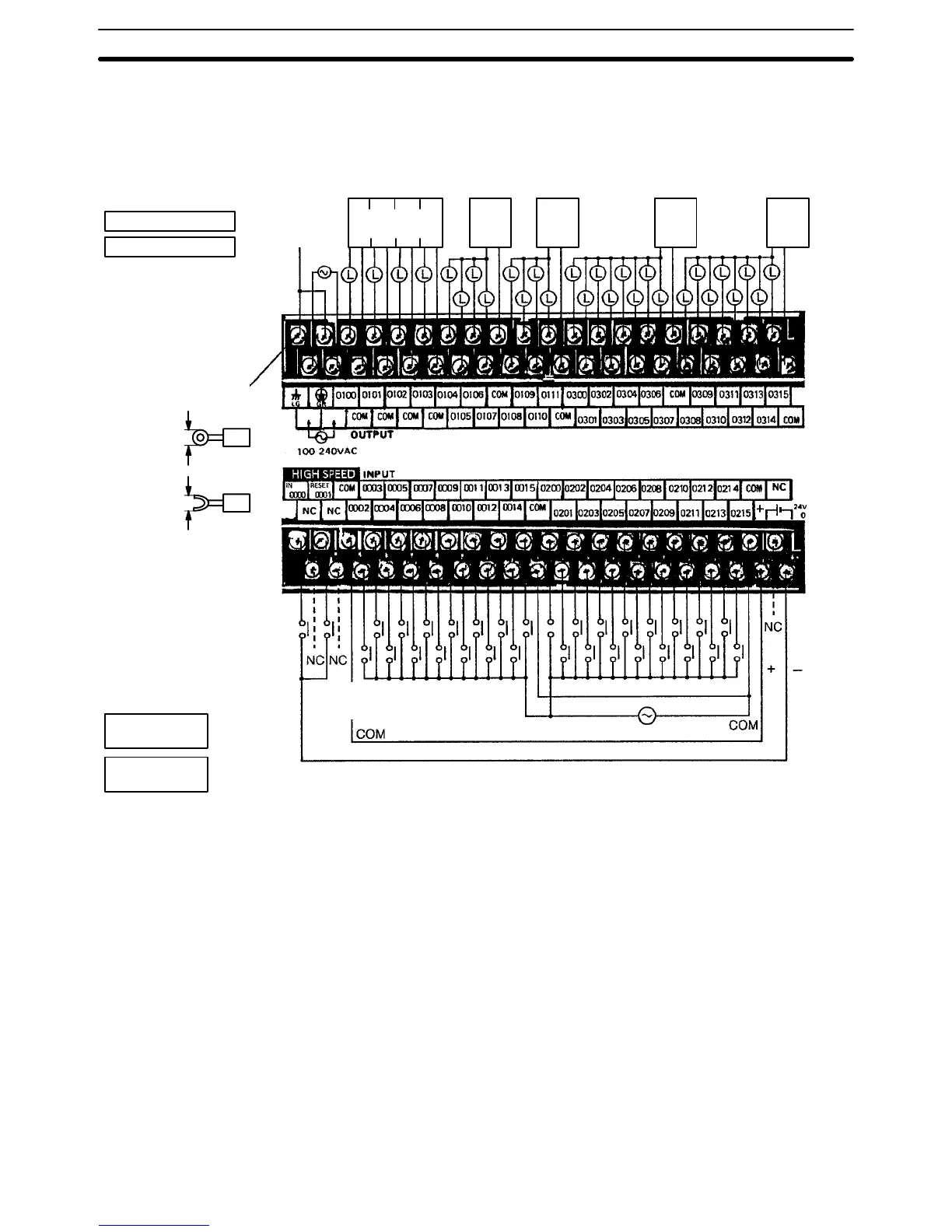

CPU C60K (CA_–A) Inputs 0000 and 0001 can use the Unit’s 24–VDC power supply output. If the
maximum output current of 0.3 A is not sufficient, however, a separate DC
power supply must be used. Inputs 0002 to 0115 take a 100–VAC power sup-
ply.
Relay contact outputs
Triac outputs
Power
supply
(100 to
240
VAC)
Ground
Load power
supply
Load
power
supply
Load
power
supply
Load
power
supply
Load
power
supply
Upper terminal
block
Lower terminal
block
High–
speed
counter
input
24_VDC
output
(0.3 A
max.)
0000, 0001
24–VDC inputs
0002 to 0115
100–VAC inputs
100 to 120 VAC
M3.5 screws
7.5 max.
7.5 max.
Hardware
reset input
I/O Wiring Section 2–6
