Omron SYSMAC CJ1W-SCU31-V1

109
Wiring Section 3-3
Note We recommend using the following NT-AL001-E Link Adapter Connecting
Cables to connect to NT-AL001-E Link Adapters.
XW2Z-070T-1: 0.7 m
XW2Z-200T-1: 2 m

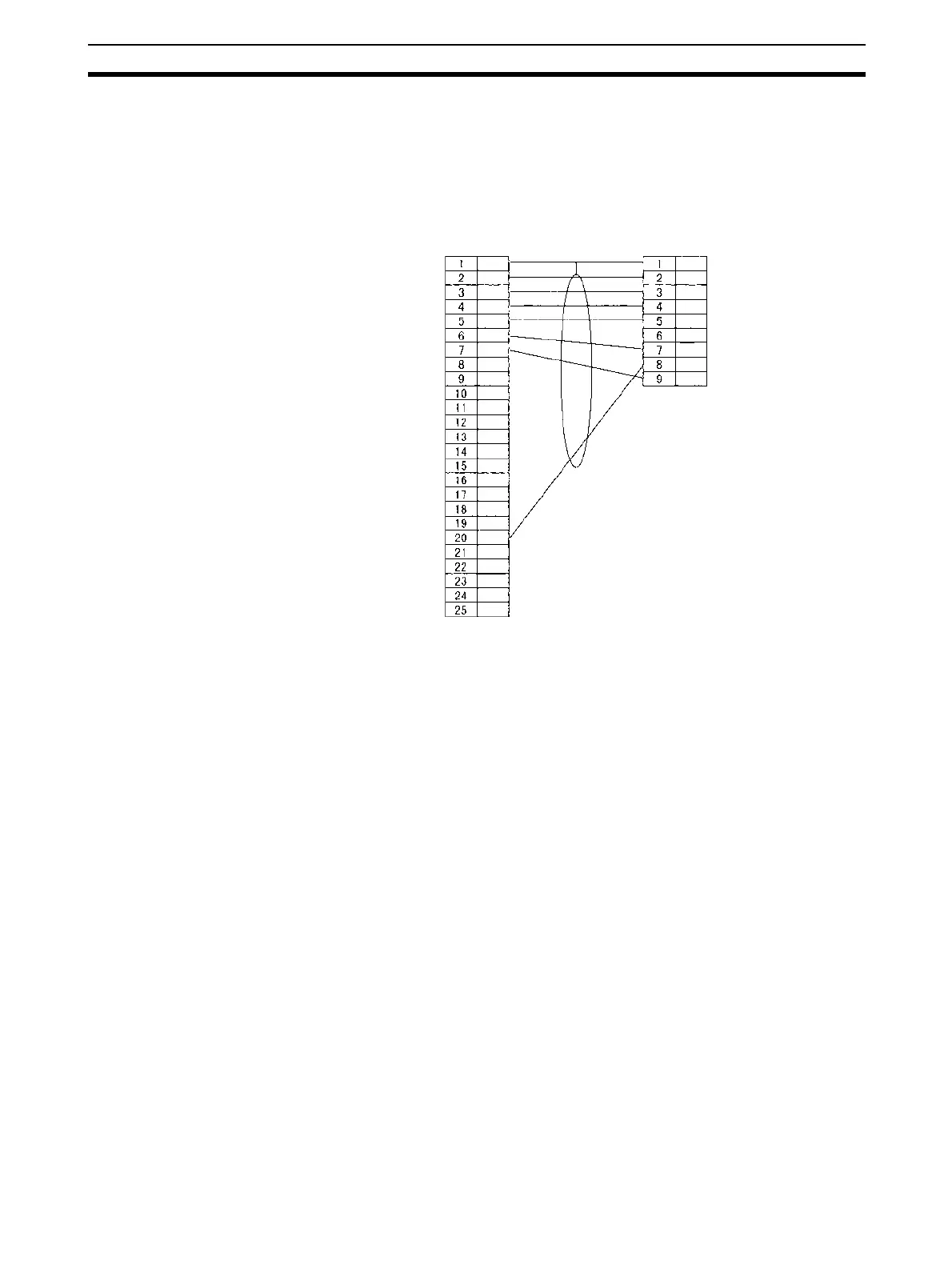

Connections to a Modem
Modem
Serial Communica-
tions Board or Unit
RS-232C port
FG
SD
RD
RTS
CTS
5V
DSR
DTR
SG
FG
SD
RD
RTS
CTS
DSR
SG
CD
ST2
RT
DTR
CI
ST1
