213

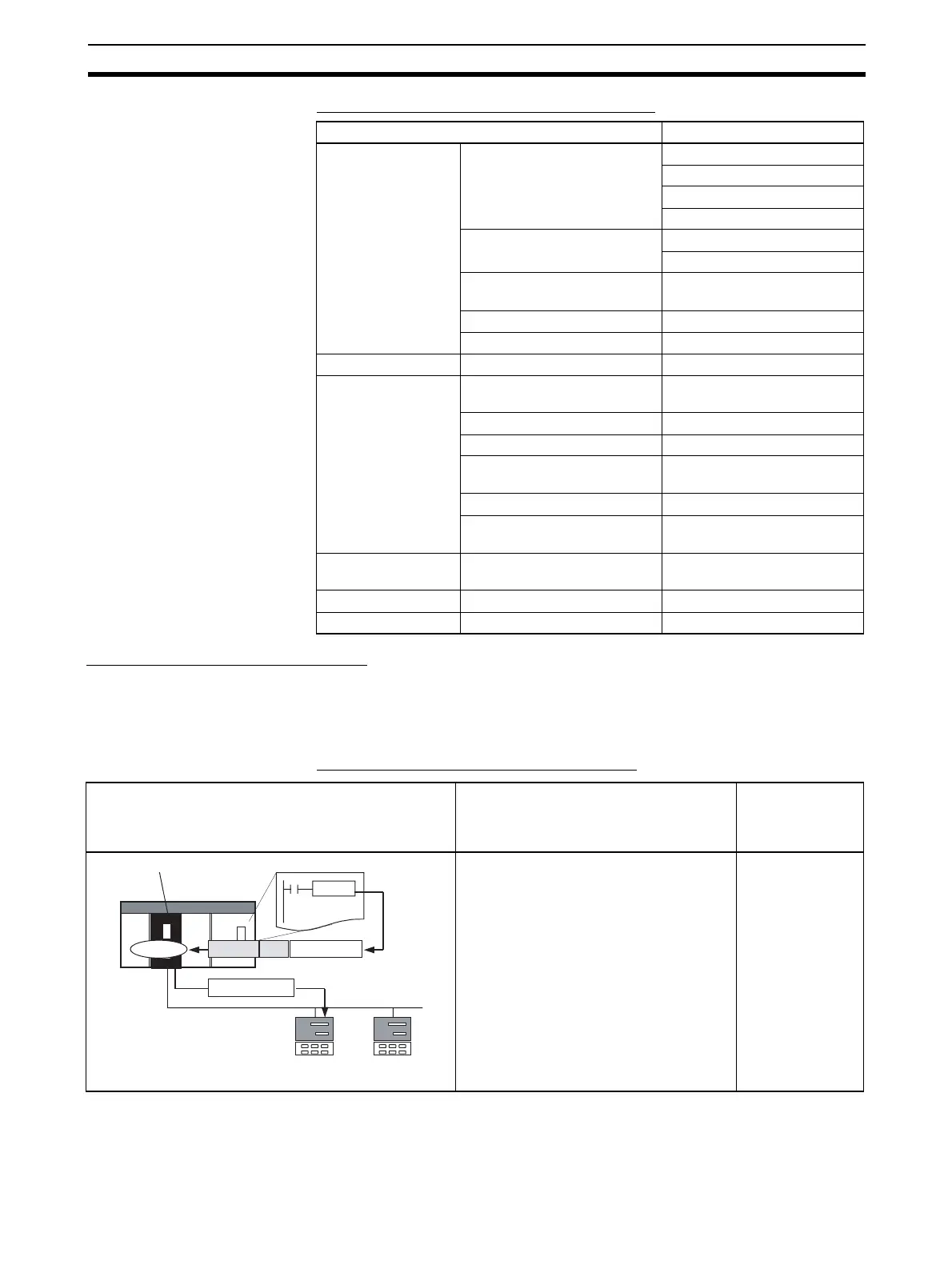

Protocol Conversion Section 6-5
CompoWay/F Slave-compatible Components
System Configuration Patterns
Sending FINS Messages Using CMND(490) in CPU Unit’s Ladder Program
The Board/Unit converts the FINS messages to CompoWay/F protocol for
sending in this operation.
Access from CPU Unit (on the Same PLC)
Component Model series
Temperature Con-
trollers
Thermac NEO E5GN (G components)
E5CN
E5EN
E5AN
Thermac R E5AR
E5ER
Plug-in Temperature Control-
lers
E5ZN
Digital Controller Boards E5ZM
Digital Controllers ES100X
Timer/Counters Timers/Counters H8GN (G components)
Digital Panel Meters Digital Panel Meters K3GN (G components)
K3NX
Digital Load Cell Meters K3NV
Digital Rotary/Pulse Meters K3NR
Digital Incrementing Panel
Meters
K3NP
Digital Time Interval Meters K3NC
Digital Temperature/Process
Meters
K3NH
Smart Sensors ZX Communications Interface
Units
ZX-SF11
Cam Positioners --- 3F88L-160, 3F88L-162
Safety Controllers --- F3SX
CPU Bus-to-Serial Details Routing tables to
treat serial
communications
path as network
OMRON components connected serially to
the Serial Communications Board/Unit
using CompoWay/F can be accessed from
a CPU Unit in the same PLC.
Optional
2803
FINS header
FINS message
RS-485 (CompoWay/F)
CPU Unit
Serial Communications Unit/Board
CMND(490)
Protocol
conversion
CompoWay/F
command
CompoWay/F
command
CompoWay/F-compatible
OMRON component
To Next Page
