CompoWay/F Master Protocol Appendix B
Receive Data Word Allocation (4th Operand of PMCR(260))
Note Received frames are stored starting from the leftmost to rightmost word of the address in I/O memory.

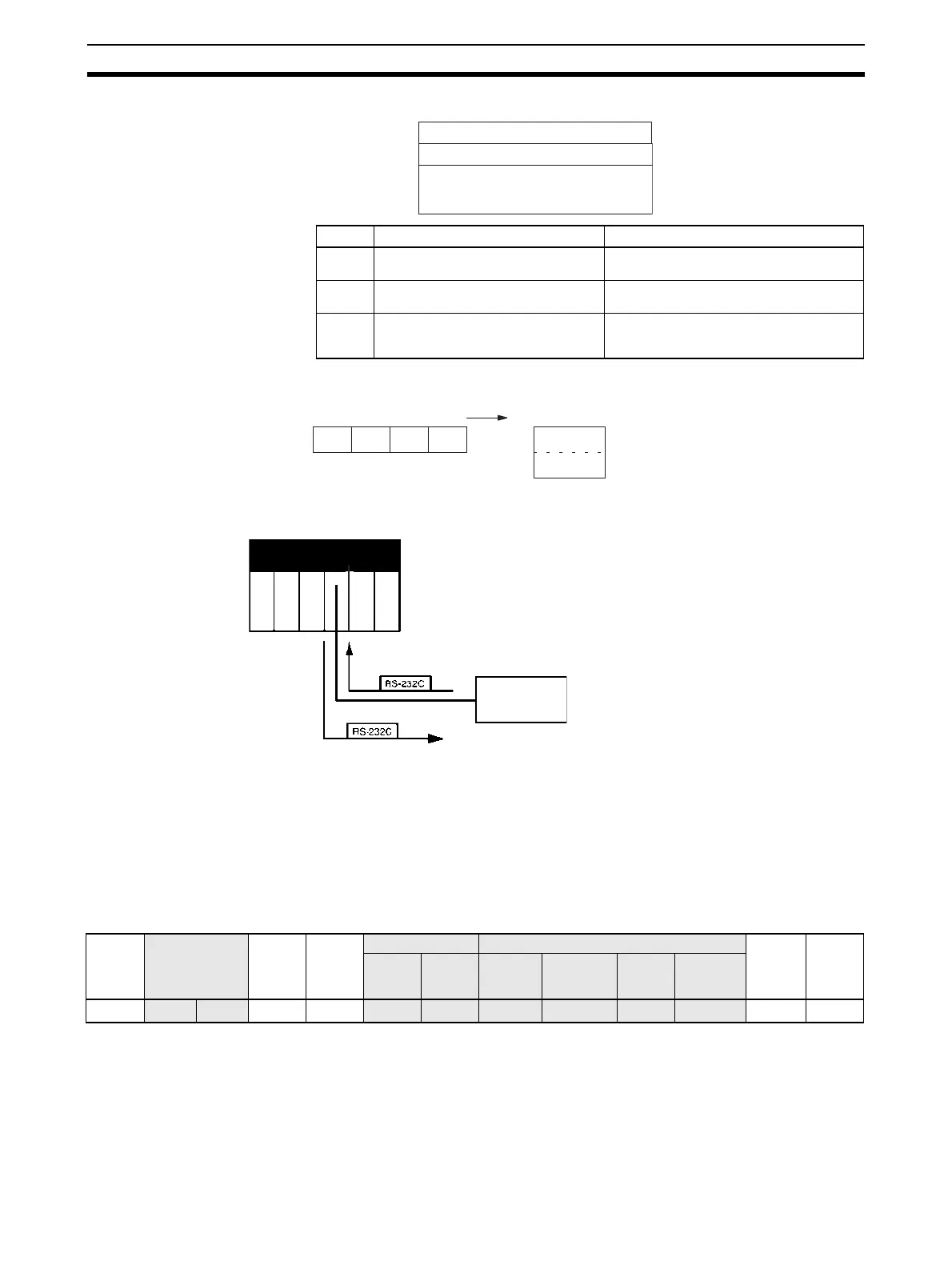

Example: The following example illustrates reading the present value from a K3N@-series Intelligent Signal
Processor.
Sequence No. 600 (Send with ASCII Conversion, with Response) is used. The specified data beginning with
the command code is converted ASCII and sent to the Intelligent Signal Processor with the specified node
number. The response is converted to hexadecimal and stored starting at the specified word.
The command frame for reading the present value for a K3N@-@@@@-FLK1/2/3/4/5/6 Intelligent Signal Pro-
cessor (command code 01 01) is shown below. The following data is specified in the operands for PMCR(260).
• Rightmost byte of S+1: Node number (2 digits BCD)
• S+2: Command code: MRC + SRC = “0101”
• S+4 on: Send data = Variable type + first read address + 00 + number of elements.
Data in shaded portions is specified in the PMCR(260) instruction.
Note A first read address of 0000 specifies the present value. An address of 0001 specifies the maximum
value; 0002, the minimum value; and 0003, the status.
The response frame is shown below. The response code and receive data are stored according to the oper-
ands for PMCR(260) as follows:
Offset Contents (data format) Data
+0 Number of receive data words
(4 digits Hex)
0003 to 00FA Hex (3 to 250 decimal)
+1 Response code (4 digits Hex) The response code will be stored in hexa-
decimal form.
+2
on
Receive data (4-digit Hex) The data from just after the response code
until just before the ETX will be converted
from ASCII to hexadecimal and stored here.
STX
Node No. Subad-
dress
SID Command code Send data ETX BCC
MRC SRC Variable
type
First read
address
(Note)
Always
00
No. of ele-
ments
(02 Hex)
(×10
1
) (×10
1
)00 0 01 01 C0 0000 00 0001 (03 Hex)
Receive data
storage words
Number of receive data words
+0
+1
+2
Response code
Receive data
5 6 7 8
1 2 3 4
Receive data wordsReceive frame
"12" "34" "56" "78"
CS /CJ-series PLC
CompoWay/F response
Read data = present value
CompoWay/F command
VARIABLE AREA READ
Command code: 01 01
First read address
Intelligent Signal Processor
K3N#-####-FLK1/2/3/4/5/6
