Section 1 Product Configuration
Section 1
Product Overview
Product Configuration

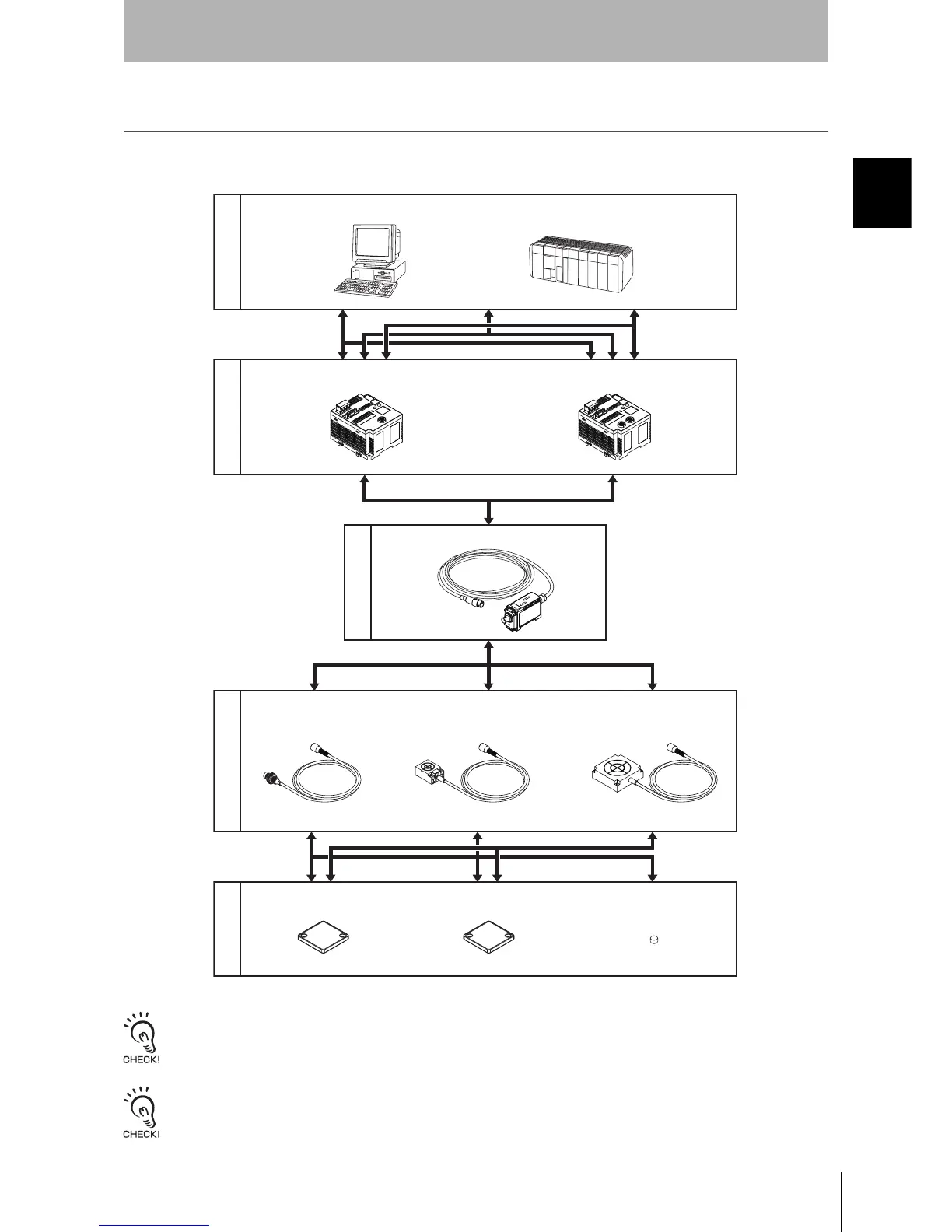

A V680-series RFID System consists of an ID Controller, one or more Amplifiers, one or two Antennas, and
Tags. Select the models suitable for the application.
When embedding the V680-D1KP52MT into a metal surface, use the V680-HS52 Antenna.
Transmission will not be possible if the V680-HS63 Antenna is used.
Use the V680-D1KP66T, V680-D1KP66MT, and V680-D1KP52MT ID Tags in combination with only the V680-HA63A Amplifier,
Do not use these ID Tags together with the V680-HA63B Amplifier.
V680-HA63A
V680-CA5D01-V2
Personal computer Programmable Controller (PLC)
V680-CA5D02-V2
RS-232C
RS-422 RS-485
Host device
ID Controller
Amplifiers
Antennas with Separate
Amplifier
Tags
V680-D1KP66T
V680-D1KP52MTV680-D1KP66MT
V680-HS63V680-HS52 V680-HS65
