Specifications and Performance
Amplifier
V680-HA63A
General Specifications

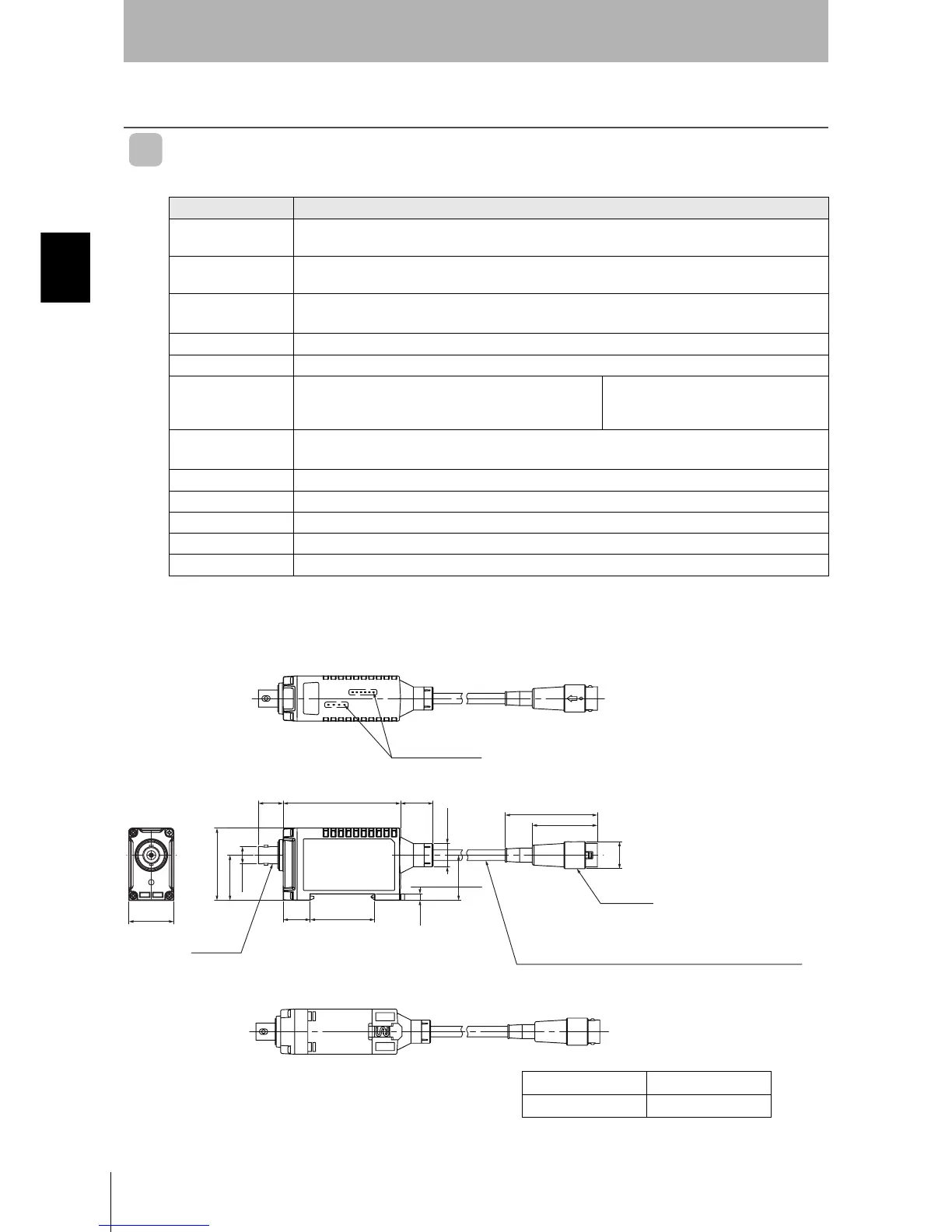

Dimensions
Item Model V680-HA63A
Ambient operating
temperature
−10 to 55°C (with no icing)
Ambient storage
temperature
−25 to 65°C (with no icing)
Ambient operating
humidity
35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC) between cable terminals and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 minute between cable terminals and case.
Degree of protection IP67, IP65 (IEC 60529)
Note: Not including connector at Controller end.
(When V680-HS63-W or V680-HS52-W is connected)
IP40 (IEC 60529)
(When V680-HS63-R or V680-HS52-R is
connected)
Dielectric strength
10 to 500 Hz, 1.5-mm double amplitude, acceleration:100 m/s
2
, 10 sweeps in each of 3 axis directions
(up/down, left/right, and forward/backward) for 11 minutes each
Shock resistance 500 m/s
2
, 3 times each in 6 directions (Total: 18 times)
Dimensions 25 × 40 × 65 mm (Not including protrusions.)
Materials PC
Weight Approx. 650 g (with 10 m cable)
Cable length Standard lengths of 5 and 10 m
Note: The maximum total cable extension is 50 m (including the Amplifier cable). A maximum of two extension cables can be
connected.
Operation indicator
13.7 65 18
51
36
15 dia.
40
25
9.5 dia.
25
3.5
12.8 dia.
15 35.6
25
Round, vinyl-insulated cable (5.8 dia.), standard length: 5 m,
(41/0.16 dia) 2 conductors, (17/0.08 dia.) 8 conductors
Connector
Connector
Case material PC resin
Cable PVC
