Omron V680 - Antennas with Separate Amplifier

18

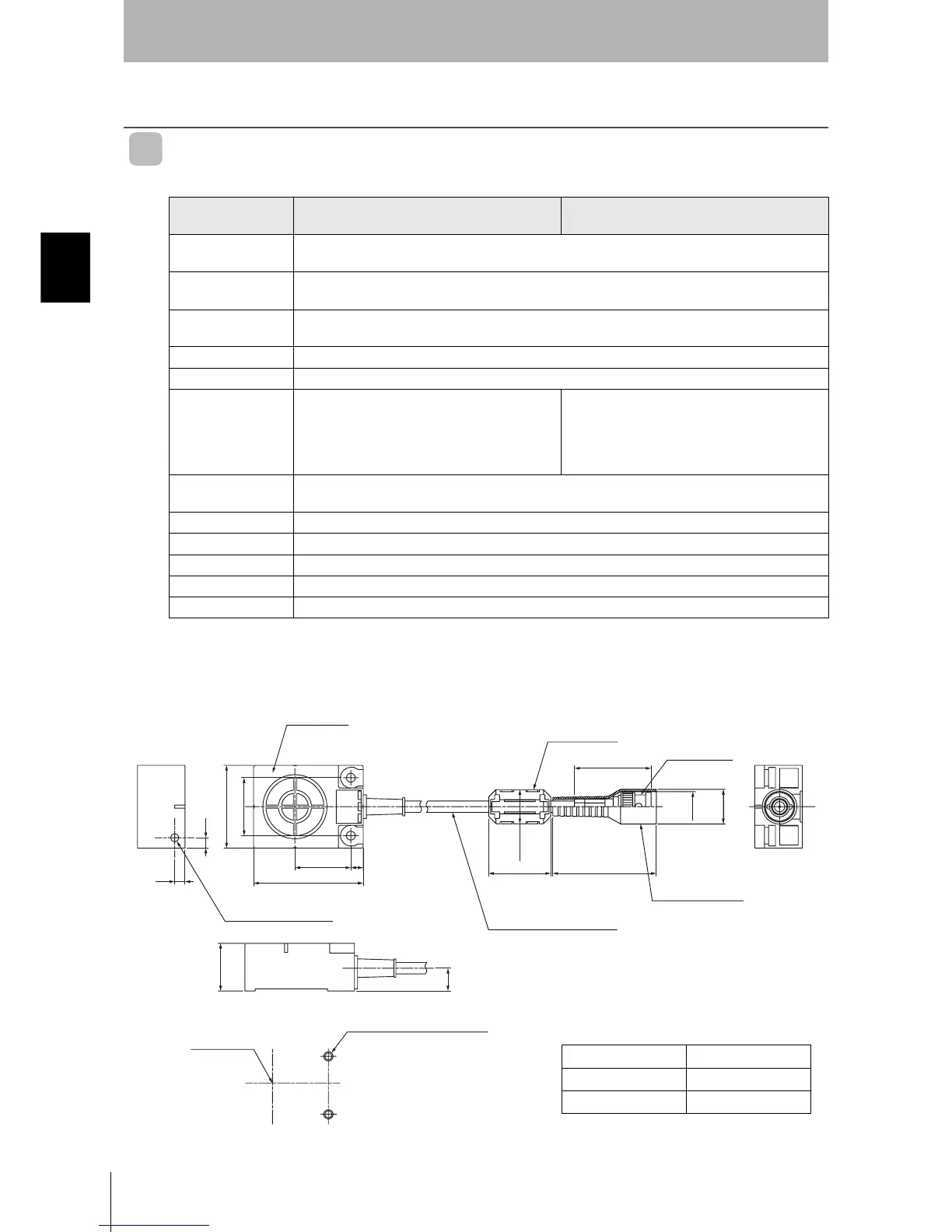

Section 2 Antennas with Separate Amplifier
RFID System
User's Manual
Section 2
Specifications and Performance
Antennas with Separate Amplifier
V680-HS63
 General Specifications
 Dimensions
• V680-HS63-W
Item Model V680-HS63-W
(Standard cable, waterproof connector)
V680-HS63-R
(Flexible cable, non-waterproof connector)
Ambient operating
temperature
−10 to 60°C (with no icing)
Ambient storage
temperature
−25 to 75°C (with no icing)
Ambient operating
humidity
35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC) between cable terminals and case
Dielectric strength 1,000 VAC, 50/60Hz for 1 min between cable terminals and case
Degree of protection IP67.(IEC60529)
In-house standard for antenna oil resistance
(former JEM standard equivalent to IP67g)
Note: The connector specifications are IP67 and
IP65.(IEC60529)
IP67.(IEC60529)
In-house standard for antenna oil resistance
(former JEM standard equivalent to IP67g)
Note: The connectors are not waterproof.
Vibration resistance 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s
2
, 10 sweeps in each of 3 axis directions
(up/down, left/right, and forward/backward) for 11 minutes each
Shock resistance 500 m/s
2
, 3 times each in 6 directions (Total: 18 times)
Dimensions 40 × 53 × 23 mm
Material ABS resin case, epoxy resin filler
Weight Approx. 850 g (with 12.5 m cable)
Cable length Standard lengths of 2 and 12.5 m
(Unit: mm)
23
5
5
Operation indicator
40
28±0.1
53
27 6
11
Note: Mounting Hole Dimensions
Coil center
Two, M4 or 4.5 dia. holes
37
5030
16.5 dia.
Coaxial cable, 5.5 dia.,
standard length: 2 m
Connector
Ferrite core
Insulation cover
16.5 dia.
14.5 dia.
Antenna
Case material ABS resin
Fill resin Epoxy resin
Cable PVC (gray)
